4.4.2 Installing

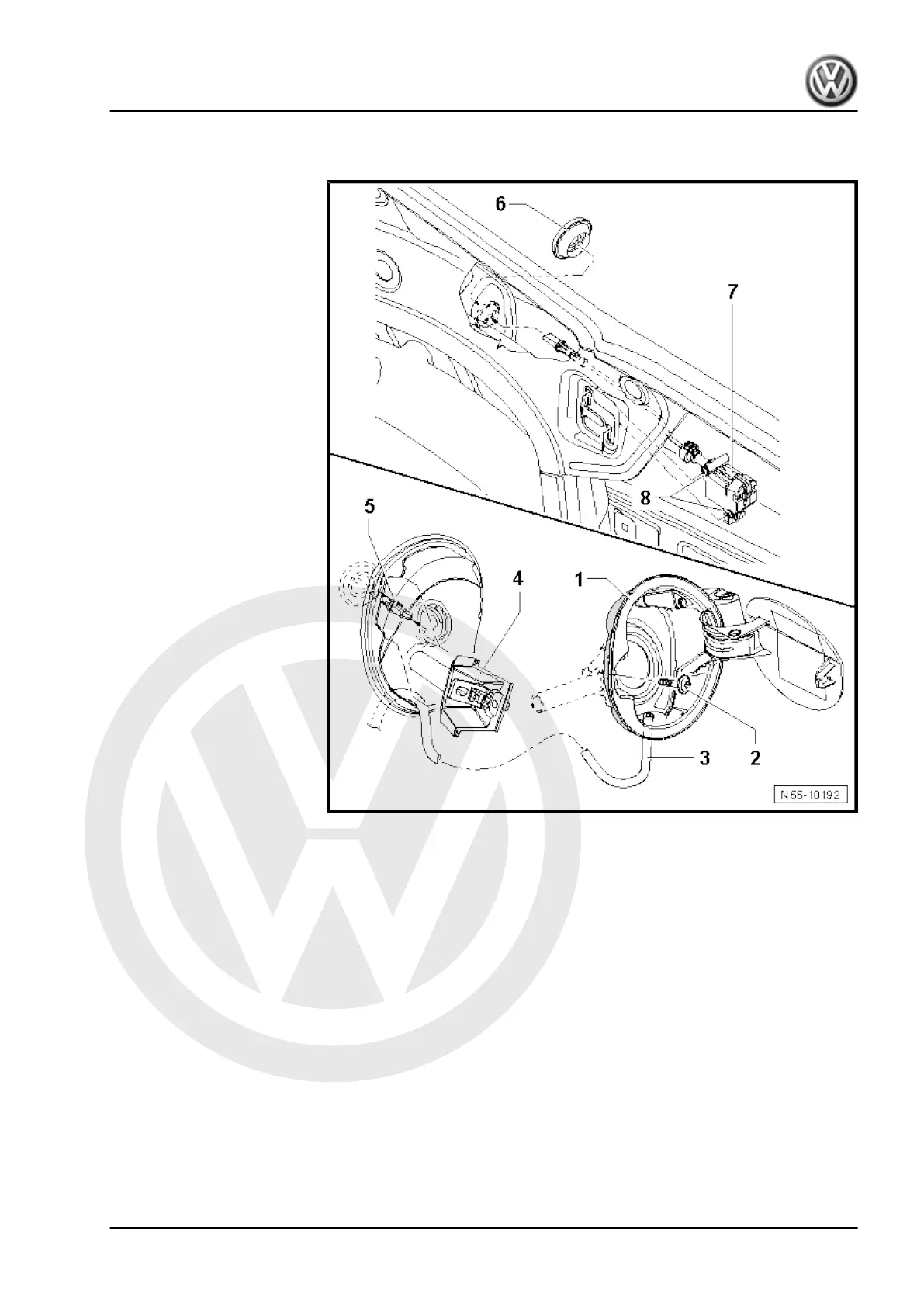

• Assembly part -4- is clipped in.
– Pass water drain hose -3- through aperture in tank flap unit
and pull water drain hose through as far as possible.
– Guide water drain hose into side panel.
– With hinge side leading, guide tank flap unit -1- into side panel.
– Then swivel tank flap unit completely into side panel, ensuring
that locking lugs at top and bottom engage correctly in side
panel.
– Pull rubber part over filler neck and tighten bolt -2-.
– Specified torque for bolt -2-: 2 Nm.
Passat 2011 ➤ , Passat Variant 2011 ➤
General body repairs, exterior - Edition 06.2019
4. Tank flap unit 87
