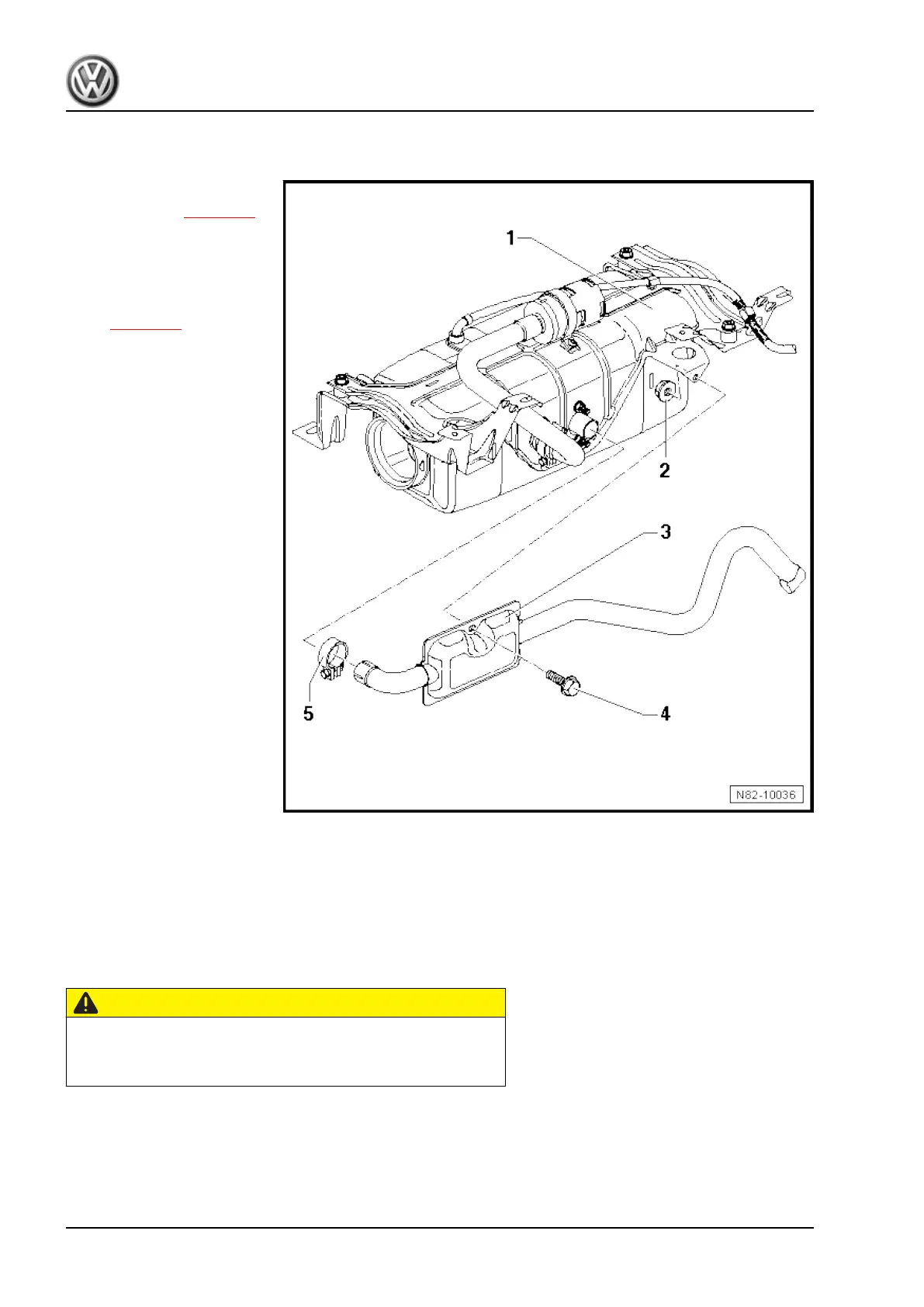

7.4 Assembly overview - exhaust system
1 - Bracket
❑ Removing ⇒ page 41
2 - Collar nut
❑ 8 Nm
3 - Exhaust system
❑ Removing and installing
⇒ page 40
4 - Flange bolt
❑ 8 Nm
5 - Clip
❑ 6 Nm
7.5 Removing and installing exhaust system
Removing
– Remove right underbody cladding ⇒ General body repairs,
exterior; Rep. gr. 66 ; Underbody cladding; Assembly over‐
view - underbody cladding .
– If fitted, unbolt stone deflector strip.
CAUTION
Danger of severe burns from hot exhaust system.
Risk of burns to hands and other parts of body.
– Allow exhaust system to cool down.
Transporter 2020 ➤
Auxiliary heater - Edition 04.2020
40 Rep. gr.82 - Supplementary heating
