Stoelting
®
Mini Soft Serve Countertop Freezer Operator’s Manual 5
DISASSEMBLE AND ASSEMBLE THE MACHINE
Disassemble the Machine
1. Turn off and unplug the machine.
2. Inspect the machine for worn or broken parts. All worn or broken
parts should be replaced to ensure safety to both the operator and
the customer, to maintain good machine performance and a quality
product.
3. Simultaneously pull both pivot arms slightly outward to disengage
them from the handle knobs.
NOTICE: Pull both arms at the same time to prevent them from
twisting and breaking.
4. Lift the spigot assembly to remove it.
5. Remove the spigot handle by tilting it away from the machine and
pulling upward.
6. Remove the rosette cap.
7. Remove the bowl fastening knobs from the bowl clamps. Unclamp
and remove the clear bowl from the machine. Remove the gasket
from the bottom of the clear bowl.
8. Remove the horizontal auger and remove the gear from the back of
the auger.
9. Unscrew the fastening nut from the top of the vertical auger and
remove the auger. Remove the gear from the bottom of the auger.
10.Use the tool included with the machine to remove the O-rings.
NOTICE: Use caution when using the tool. Forceful removal may
damage the O-rings.
11.Remove the condensation and drip trays.

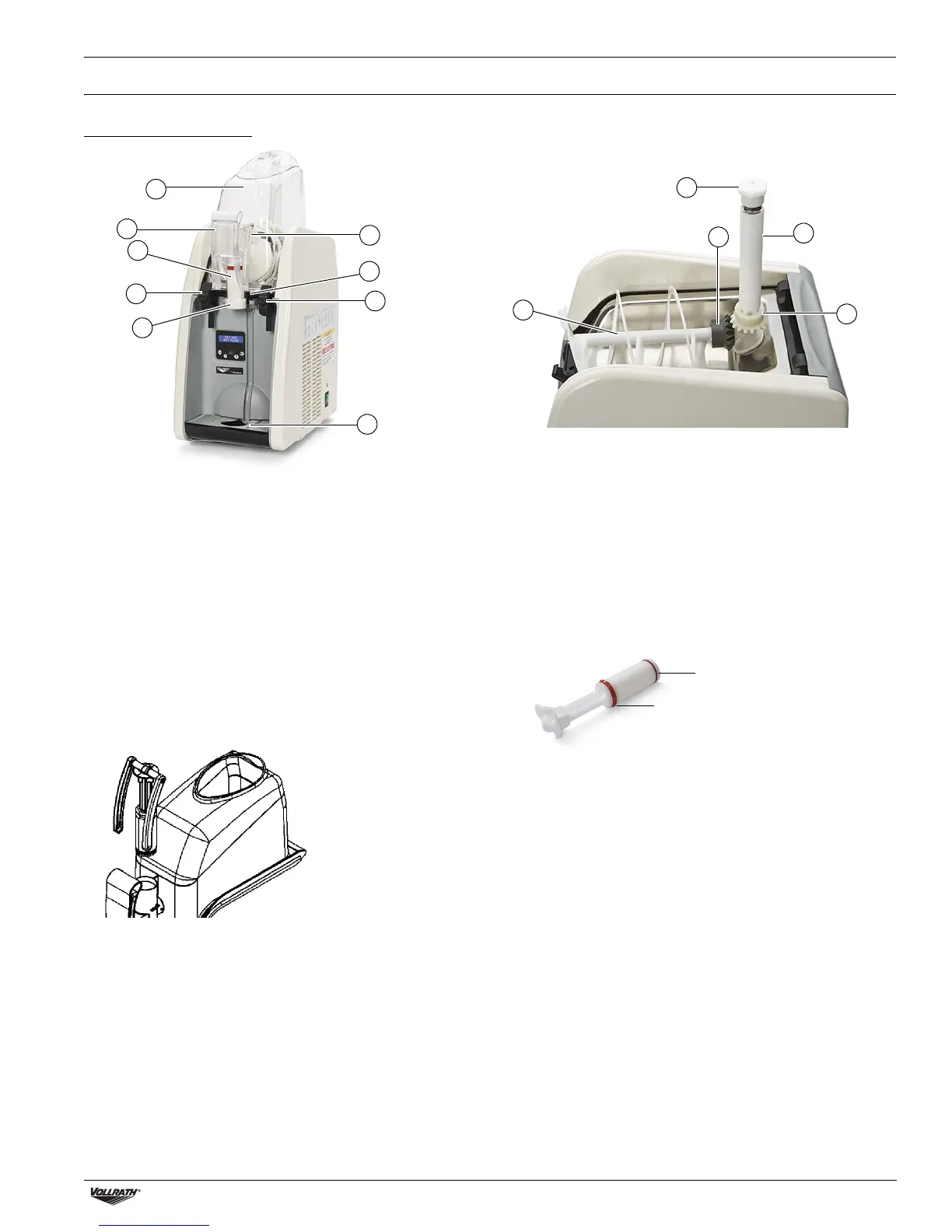

A Rosette Cap E Clear Bowl
B Bowl Fastening Knob and Clamp F Pivot Arm
C Spigot G Condensation Tray
D Spigot Handle H Drip Tray and Grid
I Horizontal Auger L Vertical Auger
J Gear M Gear
K Fastening Nut
