4KVA/5KVA Parallel Installation Guide
1. Introduction
This inverter can be used in parallel with two different operation modes.
1. Parallel operation in single phase with up to 4 units. The supported maximum output power is
16KW/20KVA.
2. Three units work together to support three-phase equipment, one inverter per phase. The supported
maximum output power is 12KW/15KVA.
NOTE: If this unit is bundled with share current cable and parallel cable, this inverter is default supported
parallel operation. You may skip section 3. If not, please purchase parallel kit and install this unit by
following instruction from professional technical personnel in local dealer.
2. Package Contents
In parallel kit, you will find the following items in the package:

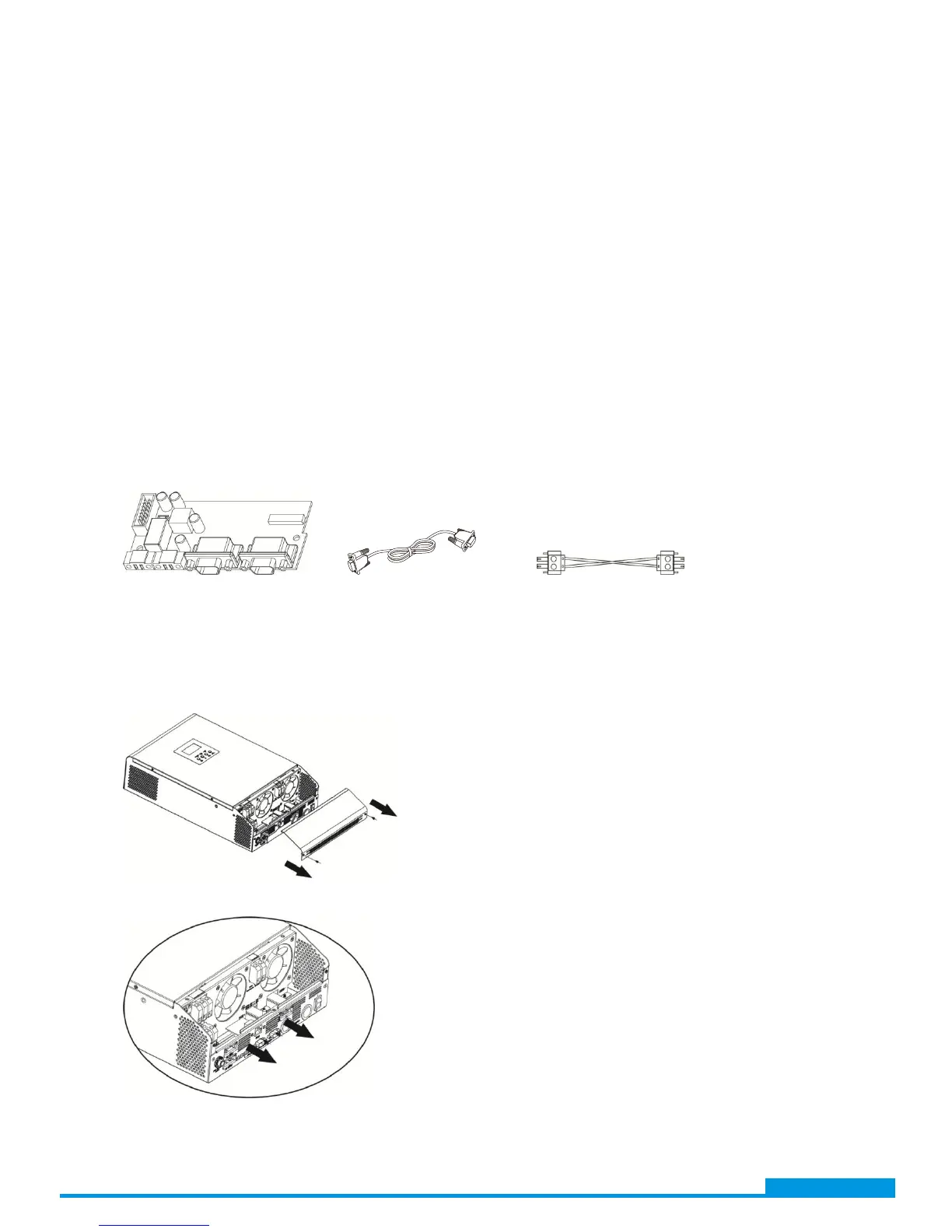

Parallel board Parallel communication cable Current sharing cable
3. Parallel board installation
This installation steps are only applied to 4K/5K models.
Step 1: Remove wire cover by unscrewing all screws.
Step 2: Remove communication board by unscrewing two screws as below chart.
