Voltech BC-2407HT User Manual

6

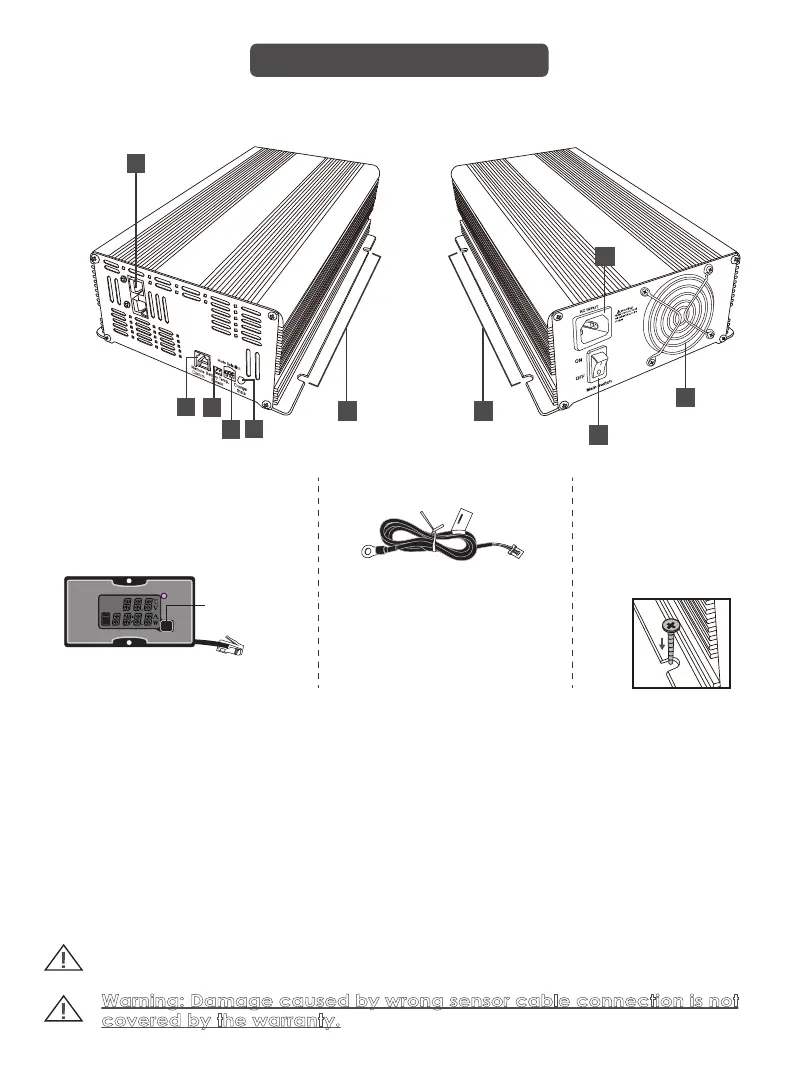

1. DC OUTPUT :
Check +/- before installation
2. Remote control-LCD
( Note 2)
Battery Temp. Sensor
Warning !
1.
Connect to the battery Negative (-)
terminal only.
2. Positive (+) terminal may damage
Sensor & Charger.
3. Battery Temp. Sensor
4.
Charging Mode Selection
(Please refer to page 9)
5. Charging Status
6. Main Switch
7. Fan
8. AC Input
1
2
3
4
5
7
8
6
Rear viewFront view
Note 1:
The slave switch of the remote control just cuts out the output. If you want to turn off the
charger completely, please switch off main switch of charger body.
Battery Temp. Sensor: To detect the battery temp. While charging, please connect the
wire sensor to the battery Negative (-) terminal.
DON'T connect the sensor to the battery Positive (+) terminal. It may
damage
the sensor & charger.
Warning: Damage caused by wrong sensor cable connection is not
covered by the warranty.
When the battery (-) pole temp. reaches 65°C (+/-5°C) / 149°F (+/-41°F), the charger
would stop output.
9. Bracket
Slave Switch
Remote control-LCD
Fault
ON / OFF
Mode
( Note 1 )
BC-1260HT / BC-2430HT
9 9
