Volvo Penta D16 MH MCC User Manual

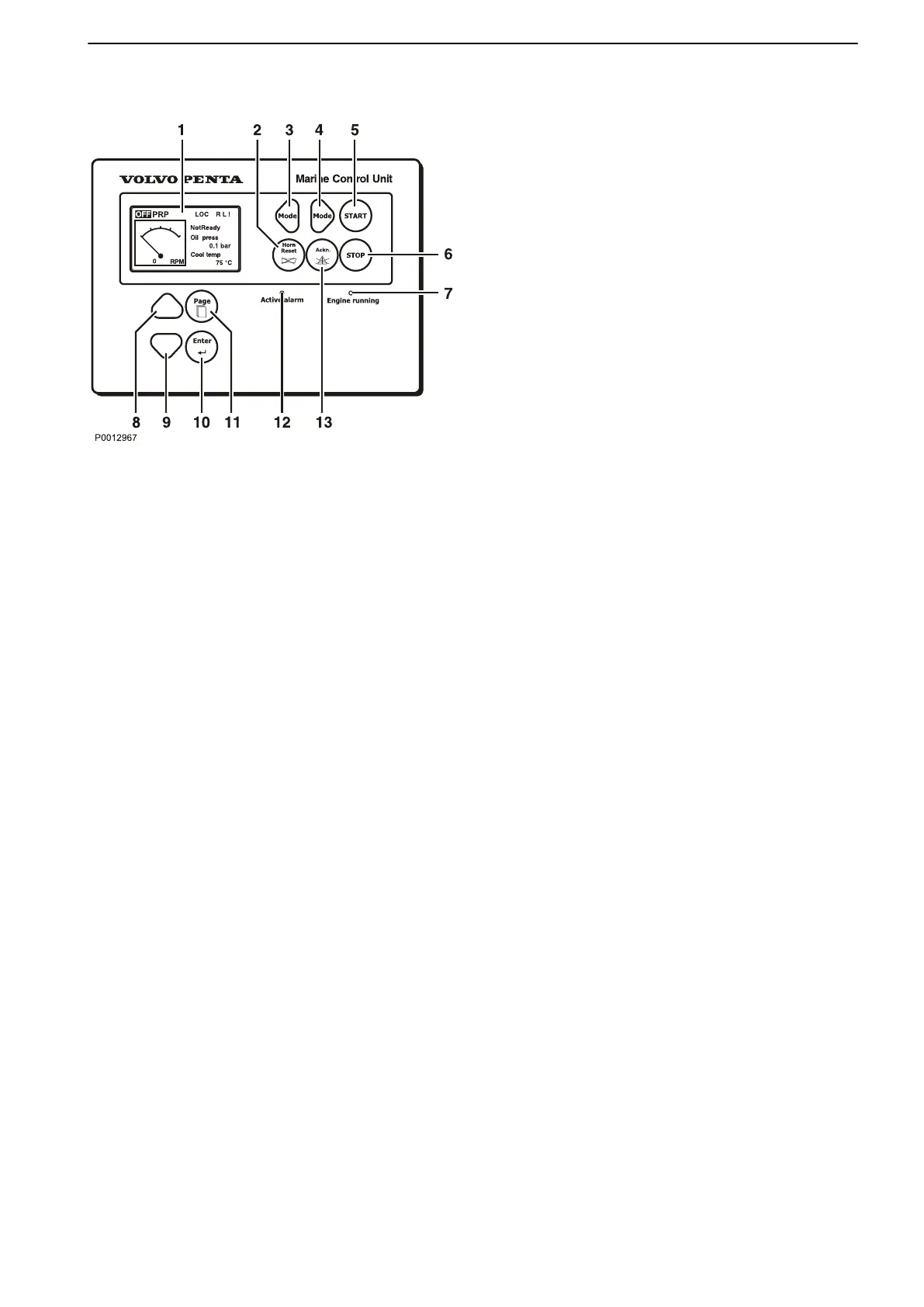

MCU panel
The MCU, Marine Control Unit, is the control system's
control unit. A panel on the unit shows engine infor-
mation and alarms.
1 Display
2 Acknowledgement of audible alarms
3 Changing modes, switching to OFF
4 Changing modes, switching to PRP
5 Start button
6 Stop button
7 Green lamp; indicates engine is running
8 Up button; selecting and increasing
9 Down button; selecting and decreasing
10 Enter; confirming selection
11 Page; switching windows between Measurement
(engine data), Adjustment and History.
12 Red lamp; indicates that there is an alarm.
The lamp flashes when a new alarm occurs. The
lamp shines continuously when an alarm is active
and acknowledged.
13 Ackn: acknowledge selection, acknowledge alarm
The button is also used to reset the SDU.
Instruments and Controls
47706582 09-2015 © AB VOLVO PENTA 11

Volvo Penta D16 MH MCC Specifications

General

Engine Model	D16 MH MCC
Engine Type	Diesel
Cylinder Configuration	Inline
Number of Cylinders	6
Displacement	16.1 liters
Bore	144 mm
Stroke	165 mm
Compression Ratio	17.5:1
Aspiration	Turbocharged and aftercooled
Fuel System	Common Rail
Lubrication System	Wet sump
Maximum Power Output	551 kW (750 hp)
Emission Standards	IMO Tier II
Cooling System	Heat exchanger
