31
Repair Instructions
Engine fixture attachment
Fixture 999 9946 is used to attach the engine to unit
stand 998 6485.

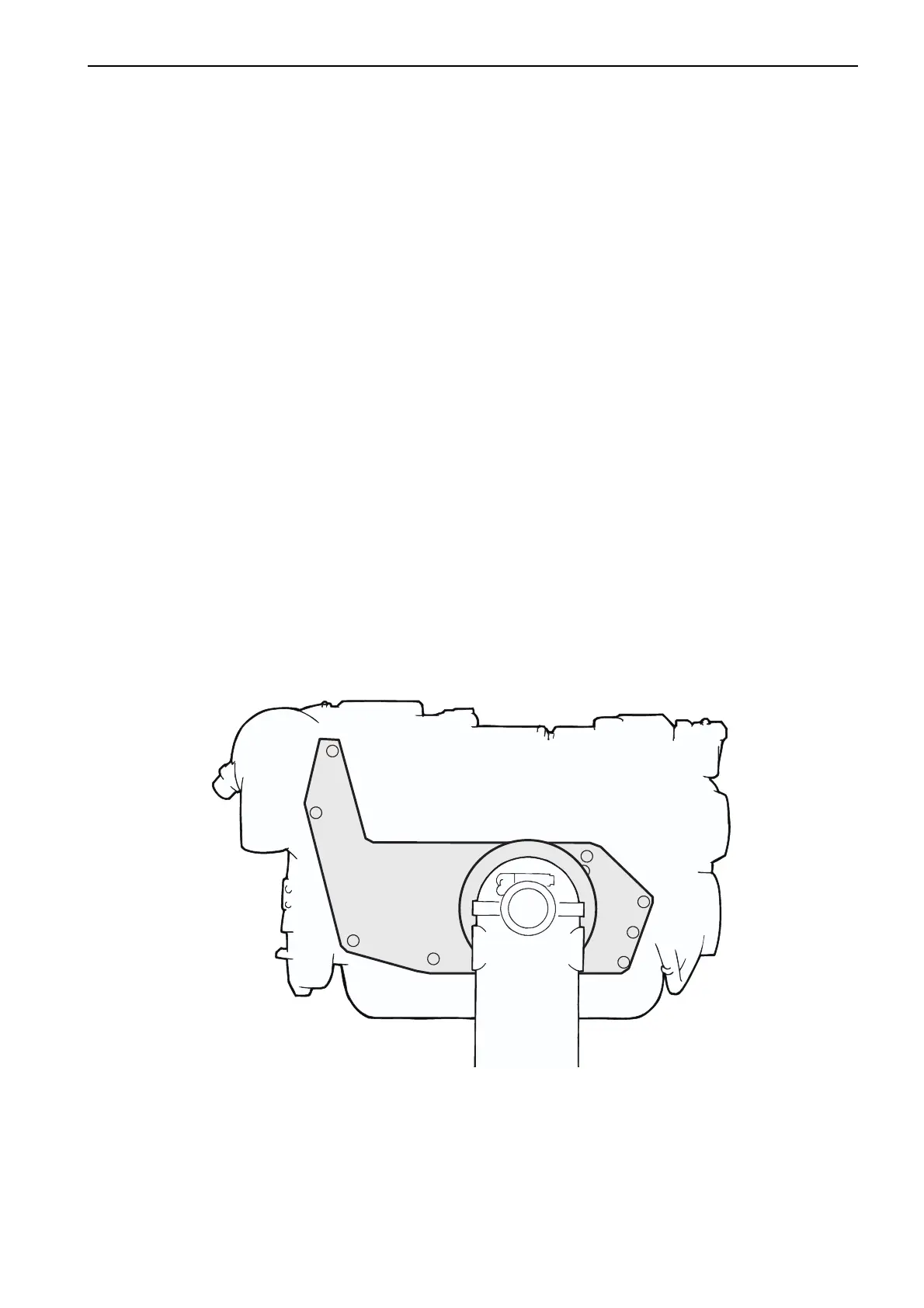

The fixture is screwed onto the engine’s right side ac-
cording to the picture below.
NOTE! It is important that the instructions for the
number and size of screws is followed so that a se-
cure attachment of the engine is obtained.
Necessary screws:
41/42/43/44/300 series
2 screws M12x30 mm
2 screws M16x30 mm
The following components must be removed from the
engine before the fixture can be attached and the en-
gine installed on the stand:
Compressor (42/43/44/300 series), heat exchanger
with expansion tank, oil cooler with oil distribution
housing, front engine mounting, oil pipe to turbo, dip-
stick pipe.
