33
6

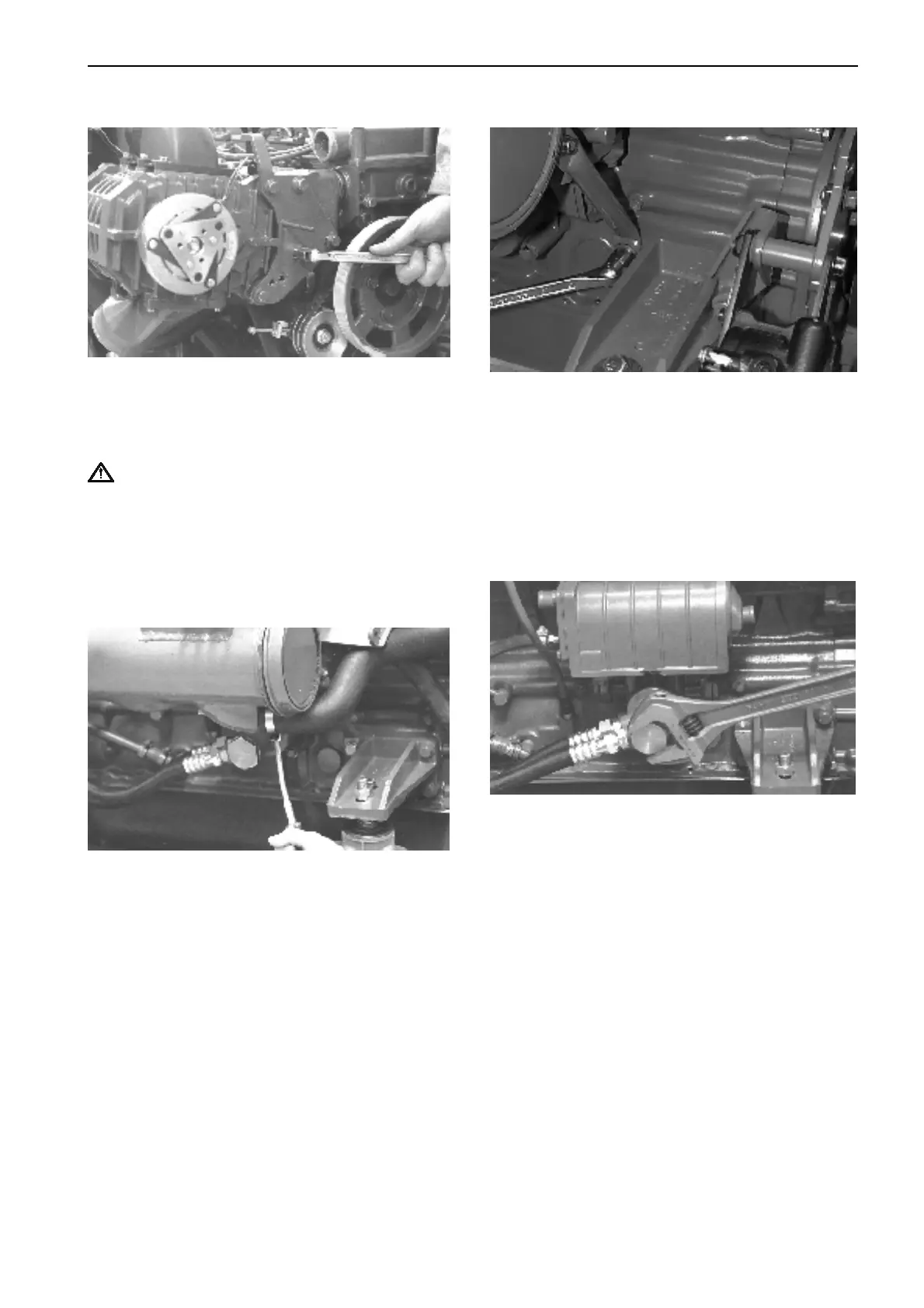

Remove the lower screw from the heat exchanger-
cylinder block strut. Wrench 17 mm.
Remove the heat exchanger and expansion tank
complete with respective brackets. Wrench 15 mm.
7
Remove the terminal adapter with the oil hoses from
the oil distribution housing. (KA(M)D32/42/43/44/300)
Other engines: Remove the oil filter with 999 9179.
4
Remove the compressor bracket and remove the
compressor. Wrench sizes 14 mm and 15 mm
(KA(M)D32/42/43/44/300)
IMPORTANT! Cover the compressor intake and
outlet pipes with clean paper or similar so that
nothing can fall into the compressor housing.
5
Disconnect the coolant hoses from the heat ex-
changer housing, charge air cooler (CAC), oil cooler,
expansion tank, water filter and sea water pump.
