Remove the exhaust pipe. Socket 15 mm. Lift off the
exhaust pipe and turbocharger (TC) as one unit.
23
Remove the thermostat housing. Socket 12 mm.
20
Remove the charge air cooler (CAC). Disconnect the
turbocharger (TC) connector pipe, wrench 10 mm.
Slacken off the support bracket at the bottom edge
and on the inside of the CAC and the terminal to the
intake manifold. Wrench 13 mm and 17 mm.
21

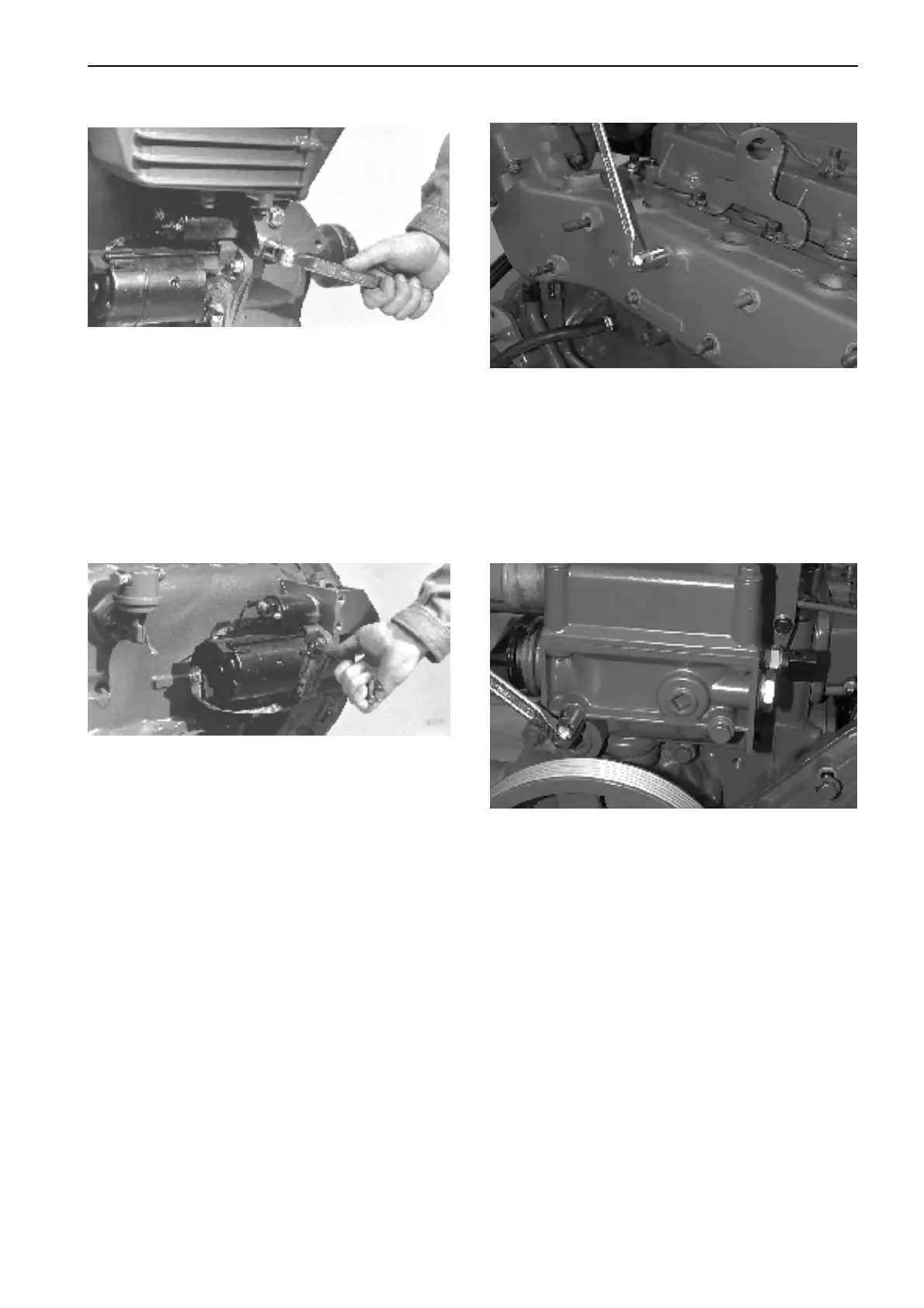

Remove the starter motor. Wrench 15 mm.
Remove the injector pump. Socket 13 mm.
Remove supply pump. Socket 12 mm.
