41
9

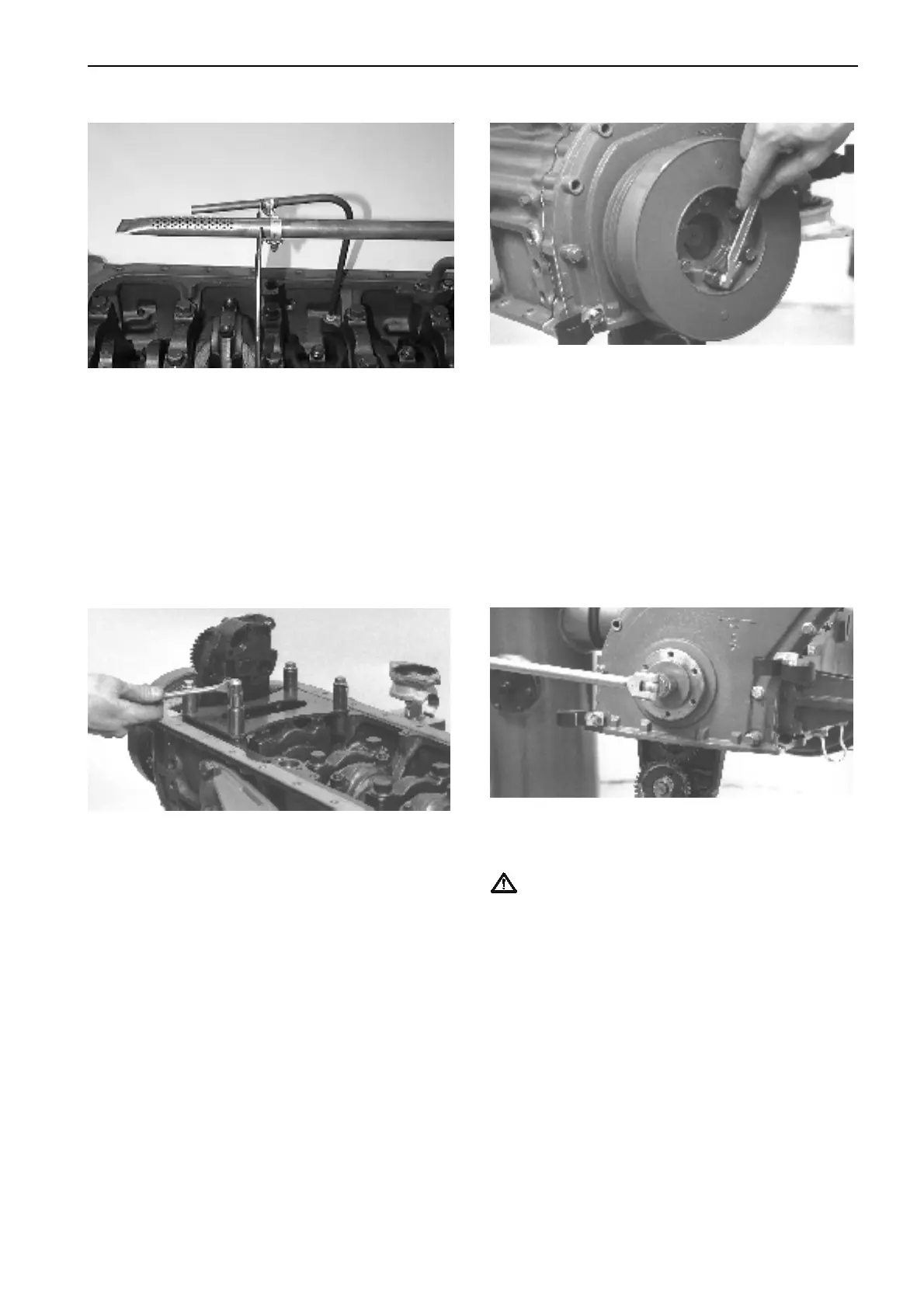

Remove the vibration damper and belt pulley. Socket
12 mm.
10
Remove the polygon hub center bolt. Use tool 884
895 as a counterhold.
IMPORTANT! Do not turn the crankshaft belt
pulley without holding the fuel injection pump
gear wheel in position. The gear wheel can
otherwise engage incorrectly and be damaged
or cause damage.
7
Remove oil feed pipe and oil delivery pipe and their
bracket. Socket 12 mm.
NOTE! The bracket screws have sprung washers
which may not be mixed with the other washers.
8
Remove the cylinder block reinforcement panel.
Socket 14 mm.
NOTE! Do not drop the spacer washers between the
panel and the engine block.
Repair Instructions
