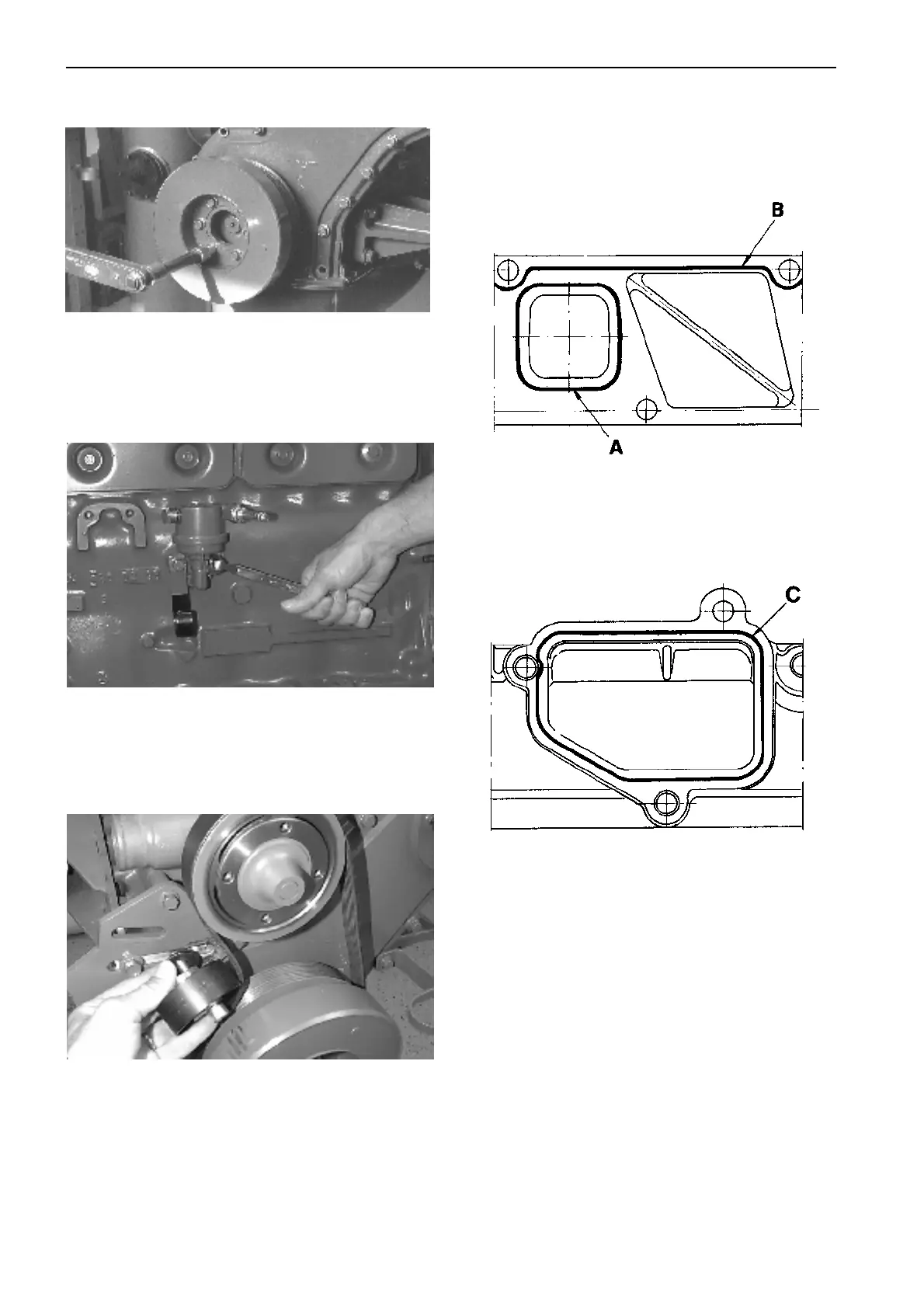

Install intake manifold on cylinder head. Apply seal-
ing compound Loctite® 574 to cylinder head and in-
take manifold. Apply a thin even unbroken bead, bead
width 3 mm.
Install the front vibration damper and belt pulleys.
Tightening torque 28 Nm. Socket 12 mm.
26
Install feed pump. Socket 12 mm. Install starter mo-
tor. Socket 15 mm.
27
A, B (B only upper edge) = Sealing compound intake
manifold
C = Sealing compound cylinder head
Tighten the intake manifold. Tightening torque 20 Nm.
Install circulation pump and belt tensioner bracket.
Wrench 12 mm, 13 mm.
Install and tension the drive belts.
NOTE! There are several versions of belt tensioners.
Please refer to “Drive belts, tensioning” for the proce-
dure.
