85
54

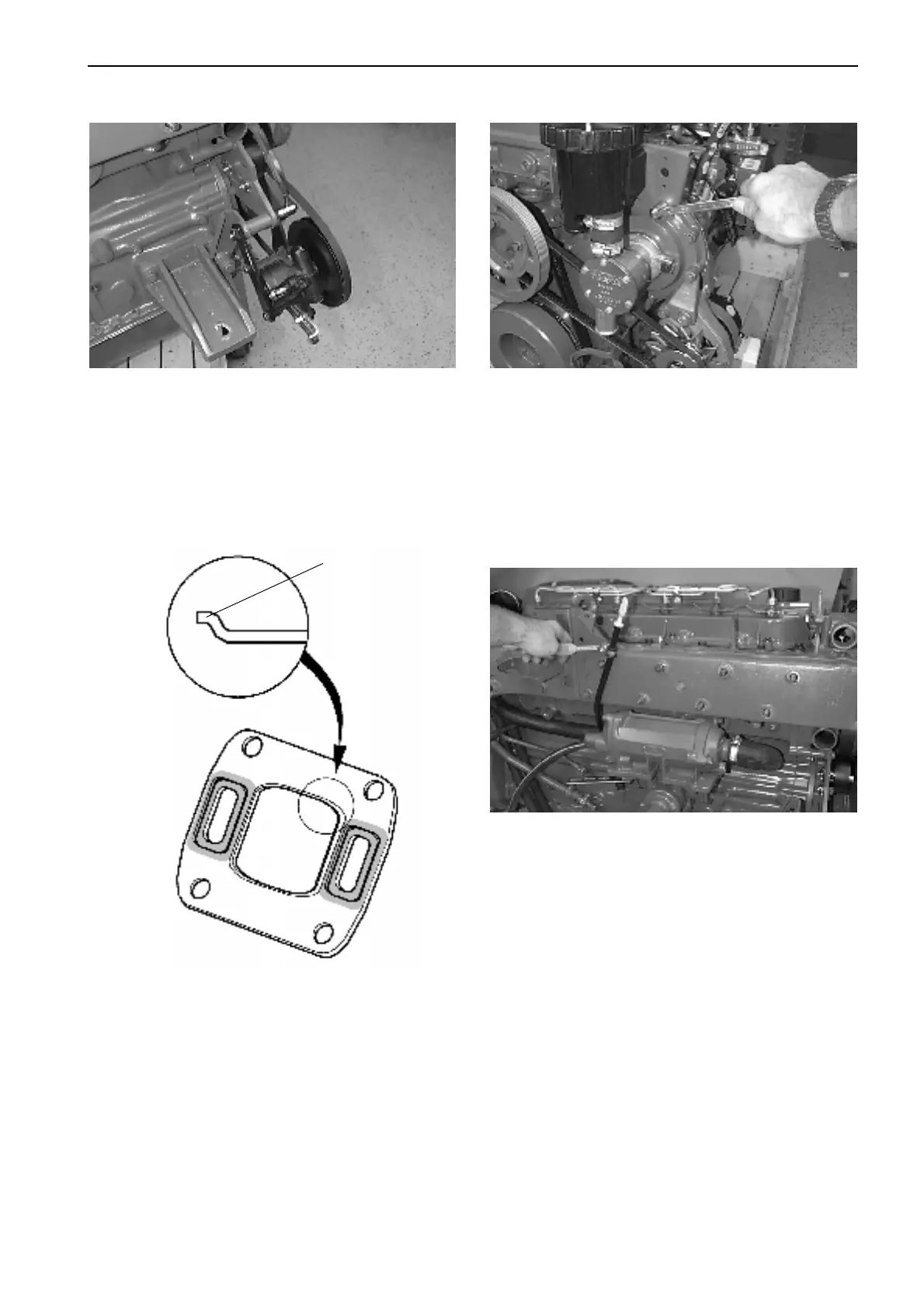

Install the sea water pump, water filter with bracket
and hose to the charge air cooler (CAC) front terminal
and to water intake (shield).
55
Install the hose between the oil cooler front connec-
tion and the charge air cooler (CAC) rear connection.
Install the dipstick pipe.
Repair Instructions
52
Install the starboard engine bracket and where appli-
cable the servo pump. Install and tension belts. See
“Checking belt tensions”.
53
Install the turbocharger with all connections except
the air inlet elbow.
Install the new gasket. Turn the upwards facing edge
(1) around the exhaust duct to face the turbo.
In cases where an adapter flange has been removed
(only TAMD31S-A), turn the upwards facing edge to
face the adapter flange.
Do not remove the tape on the gasket.
NOTE! Do not use any kind of sealant. This can
cause a leakage.
1
