27
Cable Colour Code
Marking Colour mm
2
A.W.G.
A White 6 9
B Black 1.5 15
B’ Black 0.6 19
B” Black 0.75 18
C Red 6 9
C’ Red 35 1
C” Red 0.6 19
F Yellow 1.5 15
G Brown 1.5 15
H’ Blue 35 1
I Green/Red 1.5 15
I’ Green/Red 0.75 18
J Green 1.5 15
J’ Green 0.6 19
J” Green 0.75 18
K Blue/Yellow 0.75 18
L White/Red 0.75 18
M Blue/Red 0.75 18

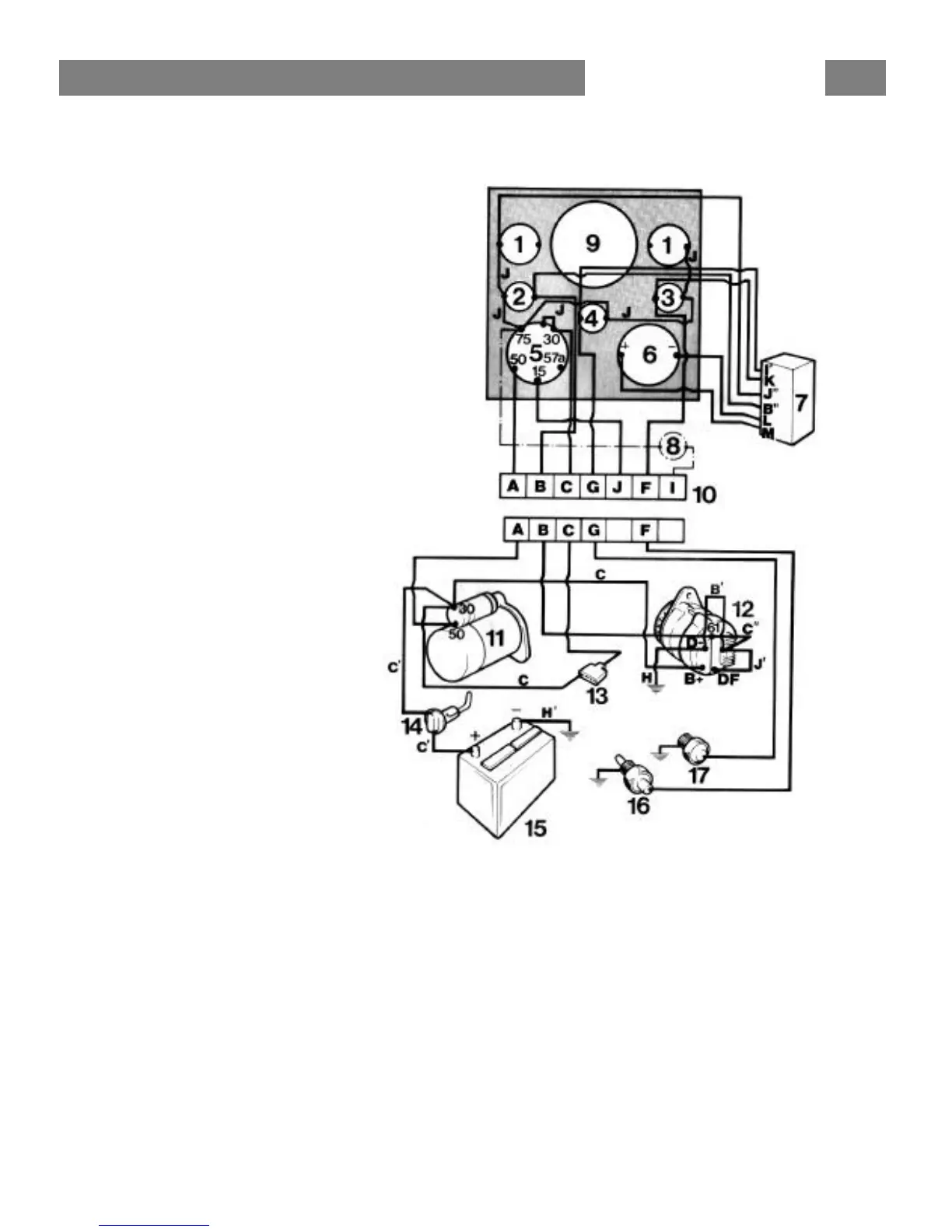

List of Components
1. Extra switch
2. Battery charging warning lamp
3. Excessive temp. warning lamp
4. Low oil pressure warning lamp
5. Key switch
6. Siren
7. Alarm unit
8. Battery charging warning lamp (for battery circuit,
opt. equipment)
9. Place for instruments, opt. equipment)
10. Rapid connector
11. Starter motor
12. Alternator
13. Fusebox
14. Main switch
15. Battery
16. Temperature sender
17. Oil pressure sender
