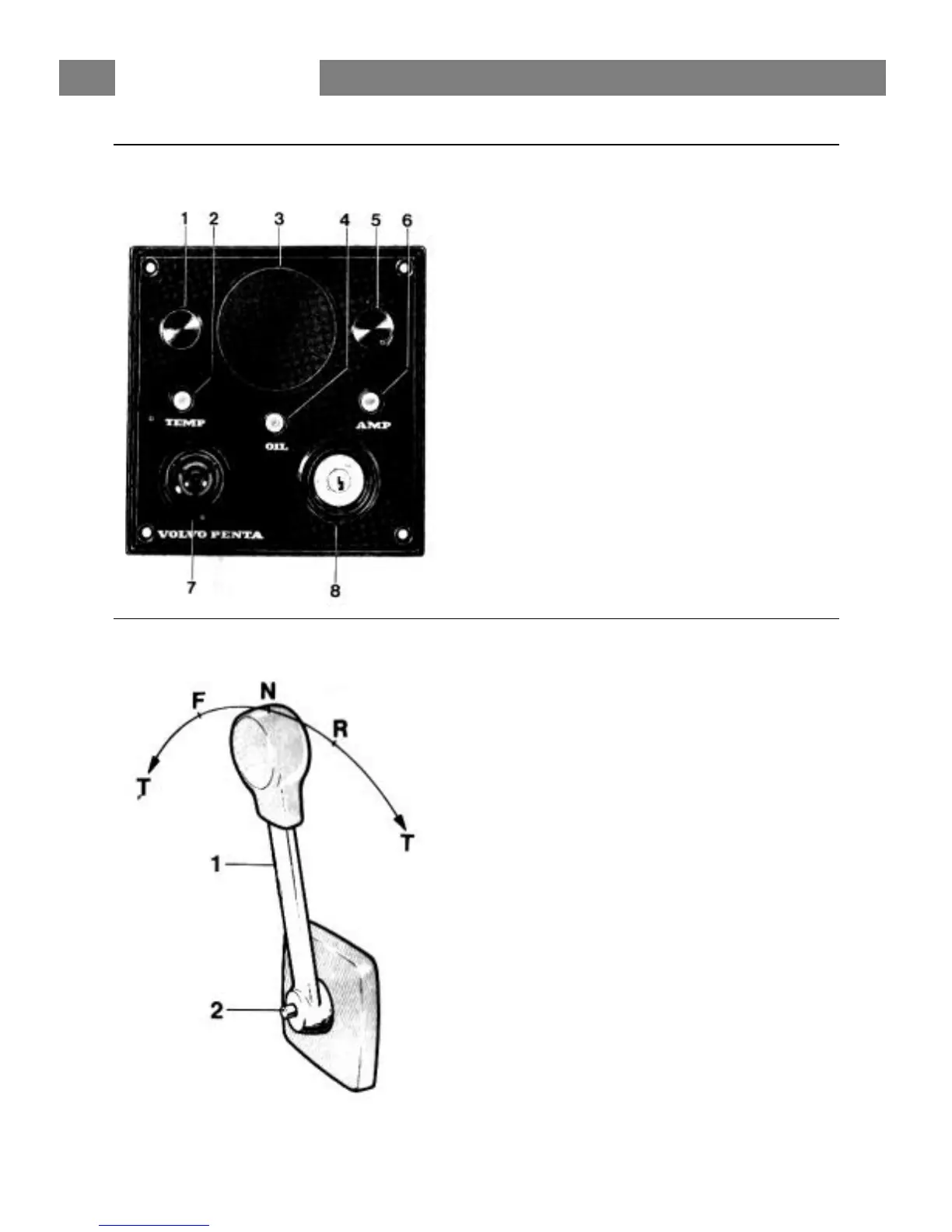

1. Switch, optional equipment
2. Warning lamp, “Excess temp.”
3. Place for instrument (ø 52 mm opt. equipment)
4. Warning lamp, “No oil pressure”
5. Switch, optional equipment
6. Warning lamp, “No battery charging”
7. Siren, “No oil pressure, excess temp.”
8. Key switch
CONTROL SYSTEM
Volvo Penta Single Control System
For side mounting
1. Control lever
2. Disengaging button
Push in the button when the control lever is in neutral
and move the lever a bit forwards. Release button.
The lever is now used only for engine speed control.
To use the lever for both engine speed control and
gear-changing, push in the button and pull back the
lever to neutral.
N = Neutral
F = Control lever in position for running “Forward”
R = Control lever in position for running “Reverse”
T = Engine speed control
