31

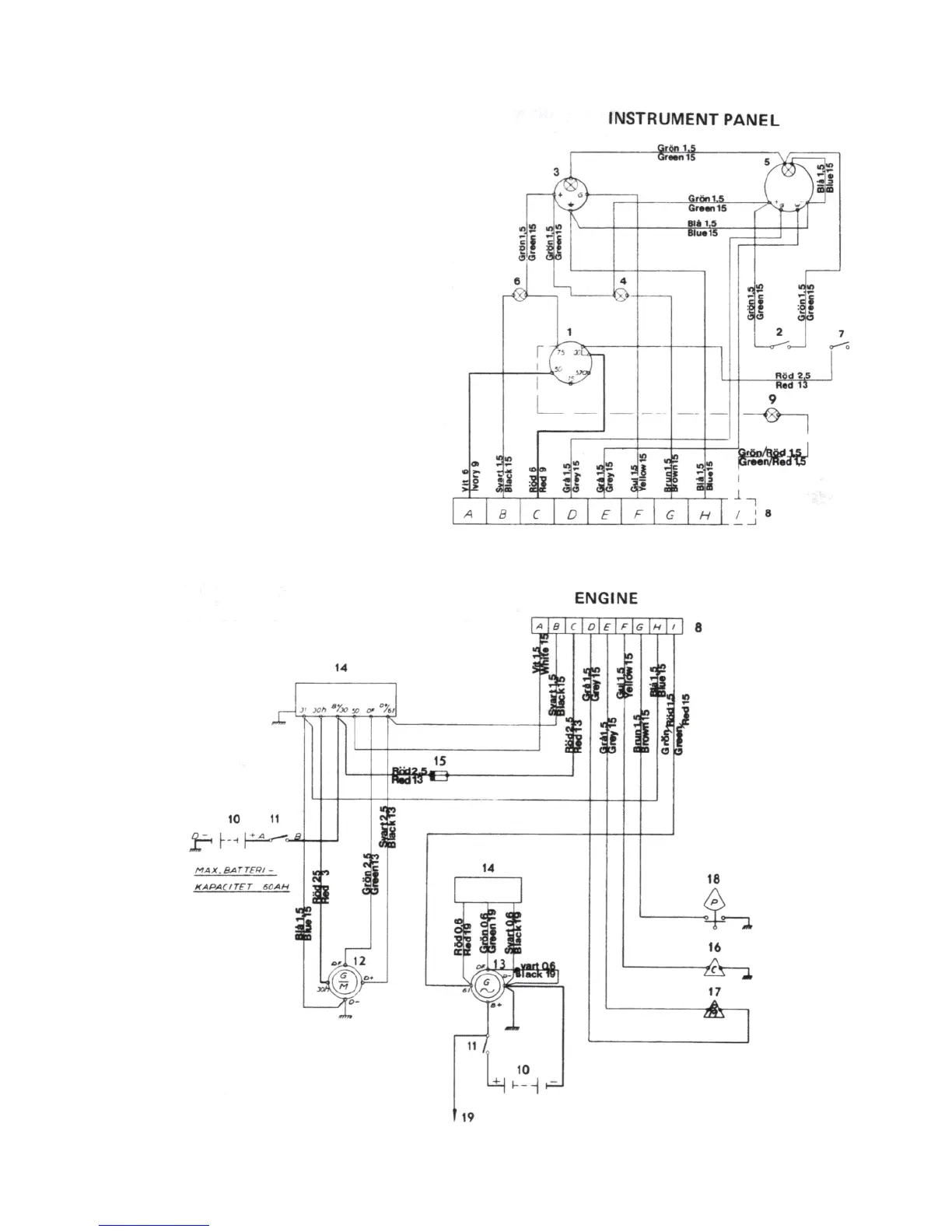

Fig. 83. Wiring diagram for late prod. Type MD6A
1. Key switch
2. Instrument panel switch
3. Temperature gauge
4. Warning light for “low oil pressure”
5. Rev counter
6. Warning light, charging start-generator
7. Switch, optional equipment
8. Terminal board
9. Warning light, charging alternator
(Optional Equipment)
10. Battery
11. Main switch
12. Start-generator
13. Alternator (Optional Equipment)
14. Charging regulator
15. Fuse
16. Temperature sender
17. Rev counter
18. Oil pressure sender
19. Other electrical equipment
