Volvo Penta MD7A User Manual

8

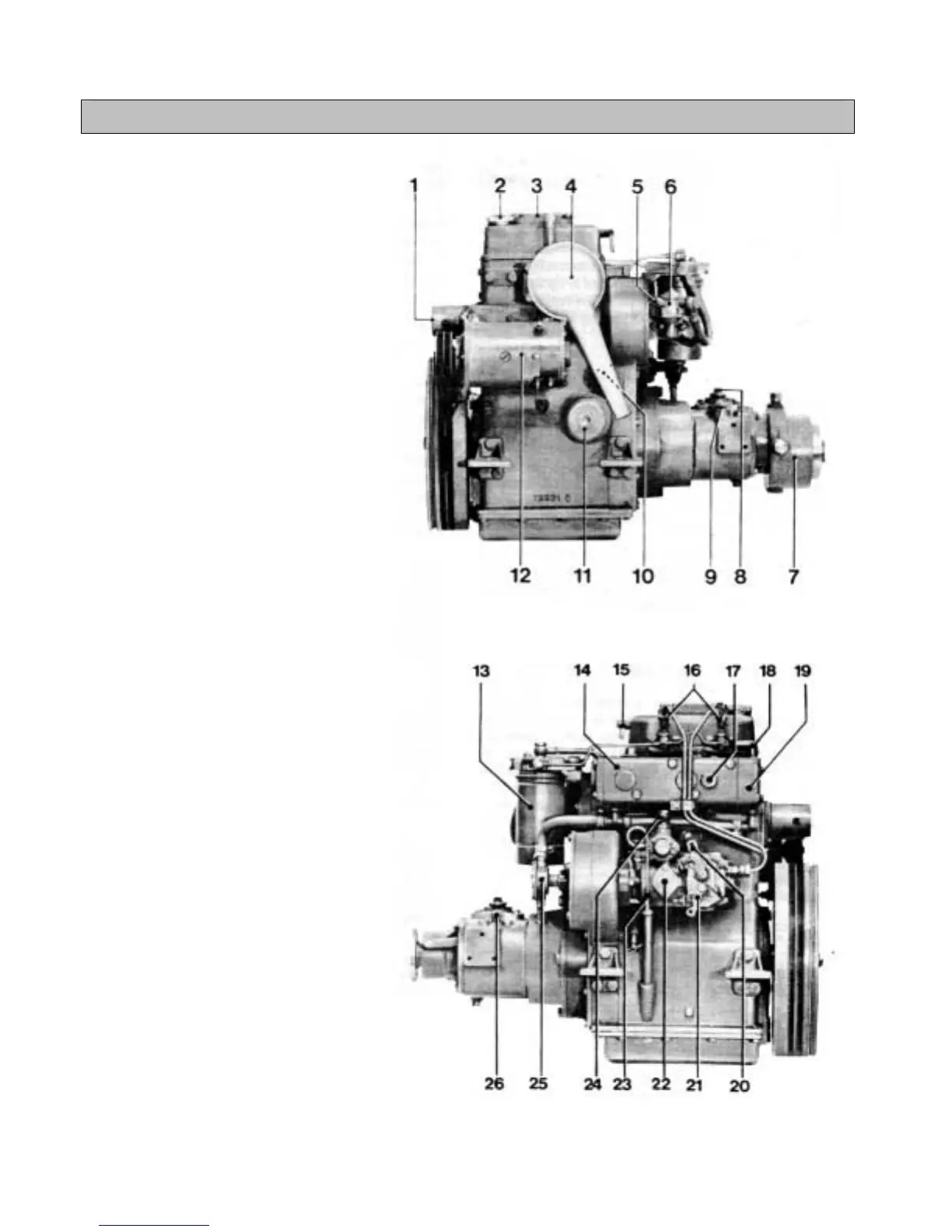

Presentation
MD6A
1. Recess for starting crank
2. Oil filling, engine
3. Sealed crankcase ventilation
4. Intake silencer
5. Connection, fuel inlet
6. Feed pump
7. Reduction reverse gear MS, red.
1.91:1
8. Control lever, reverse gear
9. Oil filling, reverse gear
10. Oil pressure contact
11. Lubricating oil filter
12. Start-generator
13. Fuel filter
14. Water-cooled exhaust manifold
15. Decompression handle
16. Injectors
17. Temperature sender
18. Cooling water outlet
19. Thermostat housing
20. Throttle lever
21. Stop lever
22. Fuel injection pump
23. Oil dipstick, engine
24. Fuel return line connection
25. Sea-water pump
26. Oil dipstick, reverse gear

Volvo Penta MD7A Specifications

General

Engine Type	Diesel
Number of Cylinders	2
Cooling System	Raw water cooled
Type	Marine diesel engine
Rated RPM	3000 rpm
Compression Ratio	22:1
Fuel System	Indirect injection
Displacement	0.8 liters
Weight	150 kg
Max Power Output	13 hp
