Volvo Penta TAMD103A

To Next Page

To Previous Page

Presentation

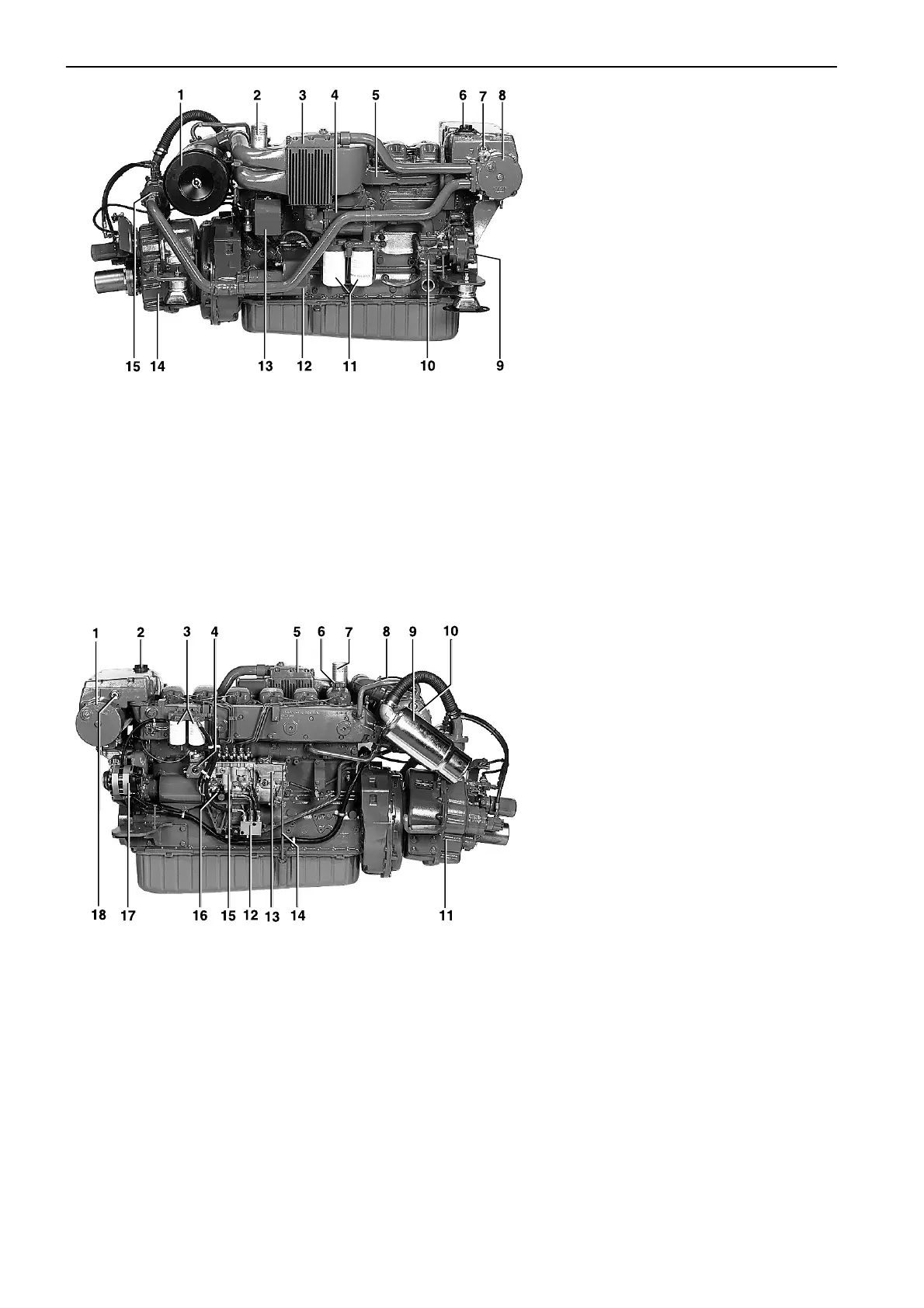

TAMD122P-A

1. Air filter

2. Filter for crankcase ventilation

3. Charge air cooler (after-cooler)

4. Oil cooler

5. Inlet pipe

6. Coolant filler cap

7. Level glass, coolant

8. Heat exchanger

9. Vibration damper

10. Seawater pump

11. Oil filter

12. Starter motor

13. Electrical terminal box with semi-automatic

fuses

14. Reverse gear

15. Oil cooler, reverse gear

TAMD122P-A

1. Heat exchanger

2. Coolant filler cap

3. Fuel filter

4. Smoke limiter

5. Charge air cooler (after-cooler)

6. Cap for oil filler

7. Filter for crankcase ventilation

8. Air filter

9. Exhaust bend (water-cooled)

10. Turbocharger

11. Reverse gear

12. Fuel cut-off valve

13. Governor

14. Oil dipstick

15. Injector pump

16. Feed pump

17. Generator

18. Level glass, coolant

Volvo Penta TAMD103A - Page 14
