Volvo Penta TAMD40/MS3C - Page 50

48
Wire colour
GR = Grey
SB = Black
BN = Brown
LBN = Light brown
R = Red
PU = Purple
GN = Green
Y = Yellow
W = White
BL = Blue
WIRE AREAS
mm
2
AWG
1.0 17
1.5 15
2.5 13
69
10 7

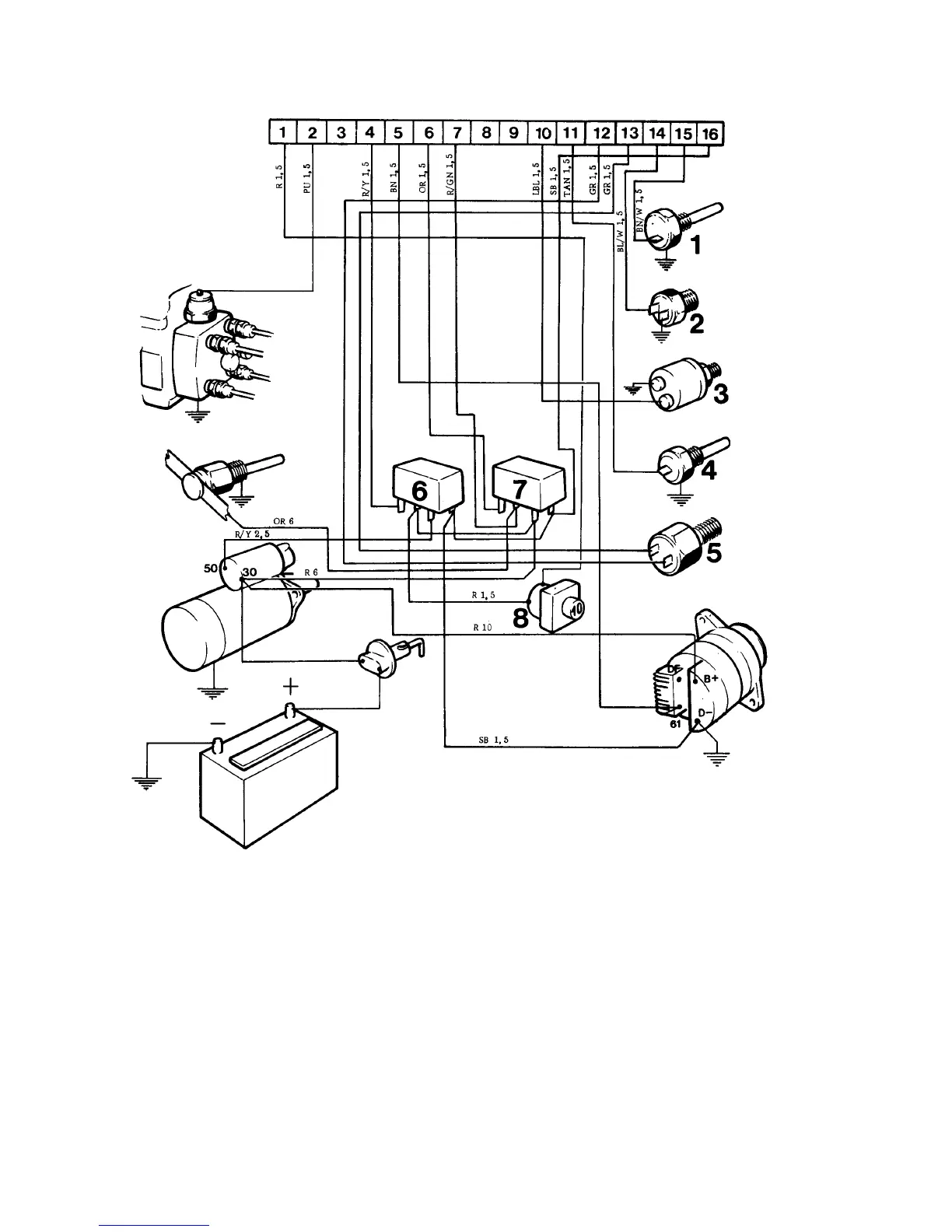

MOTOR
1. Kylvattentemperaturvakt
2. Oljetrycksvakt
3. Oljetrycksgivare
4. Kylvattentemperaturgivare
5. Varvtalsgivare
6. Startrelä
7. Glödströmsrelä
8. Säkring
Kabelfärg
GR = Grå
SB = Svart
BN = Brun
LBN = Ljusbrun
R = Röd
PU = Purpur
GN = Grön
Y = Gul
W = Vit
BL = Blå
LBL = Ljusblå
Kabelareor i mm
2
ENGINE
1. Temp.
2. Oil pressure-guard
3. Oil pressure sender
4. Temp. sender
5. Sender rev. counter
6. Start-relay
7. Relay, glow-current
8. Fuse
