Volvo Penta TAMD70D - Turbo-compressor; Reverse gear

40
Turbo-compressor
TAMD60 AQD70, TAMD70
Manufacturer, type (TAMD60A-AQD70C, TAMD70C) ................. Holset 3LD-530A/ Holset 3LD-530A/
2.5 WSO 2.5 WSO
(TAMD60B-AQD70D, TAMD70D) ................................................ KKK-K27-2970 N/14.7 KKK-K27-3068/14.7
Lubrication .................................................................................... From engine lubricating system
Cooling ......................................................................................... From engine fresh water cooling system

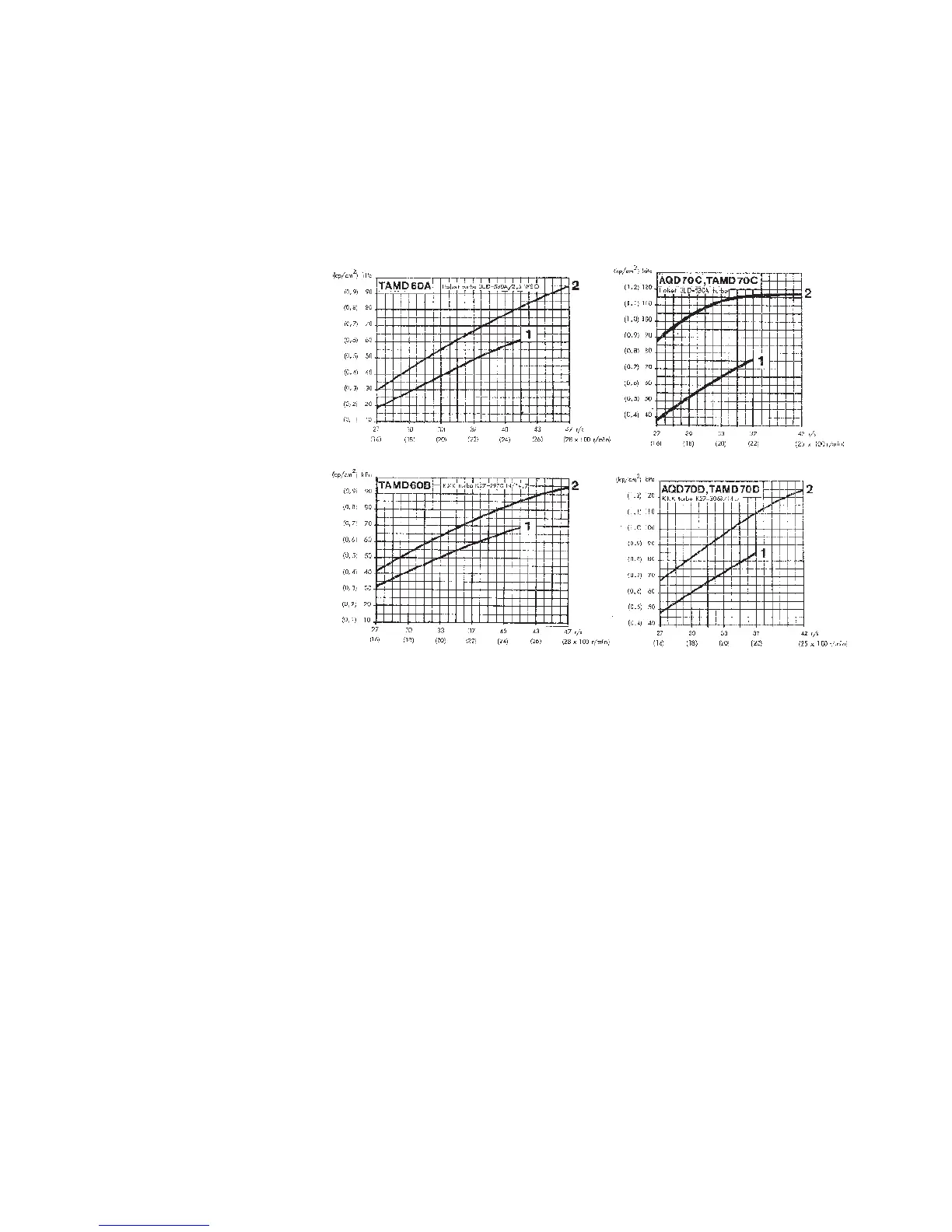

Charging pressure
Charging pressure at 100% engine
load and an ambient air temperatu-
re of approx. +20°C (68°F). Curve 2
applies to pleasure boats (output
according to curve B) and curve 1
for other installations (output accor-
ding to curve C).
A considerably lower charging
pressure is obtained if the engine is
not running at full output.
Reverse gear
TAMD60 AQD70, TAMD70
Twin Disc model .......................................................................... MG502 MG506
Ratios............................................................................................ 1.5:1, 2:1, 2.5:1 1:1, 1.5:1, 2:1, 3:1
Oil quality and viscosity ................................................................ Same as in engine
Oil capacity (including cooler) ................... dm
3
(imp.gall-US.gall) 2.5 (0.6-0.7) 6.5 (1.4-1.7)
Working pressure at oil temperature 82°C (180°F)
(engaged 30r/s-1800 r/min) ...........................MPa (kp/cm
2
, p.s.i.) 2.2-2.4 (21.8-24.0, 2.1-2.2 (21-22.5,
310-340) 300-320)*
at cruising speed, min ....................................MPa (kp/cm
2
, p.s.i.) 1.93 (19.3, 275) 1.9 (19.0, 270)
Weight ................................................................................. kg (lb) 80 (176) 100 (220)
* 2.5 (25.3,360) for engines with 199 kW (270 hp) propeller shaft output.
SCG, model .................................................................................. MRF 350 HDMK3B
Ratios............................................................................................ 1.5:1, 2:1, 3:1
Oil quality and viscosity ................................................................ Same as in engine
Oil capacity (incl. cooler) ......................... dm
3
(Imp.gall. USgalls) 12.5 (2.8, 3.3)
Oil pressure, normal when running ................MPa (kp/cm
2
, p.s.i.) 0.85 (8.5, 121)
Weight, (rotation same as engine) ................................... kg (lbs) 175 (386)
(rotation opposite to engine)......................................... kg (lbs) 170 (375)
