22

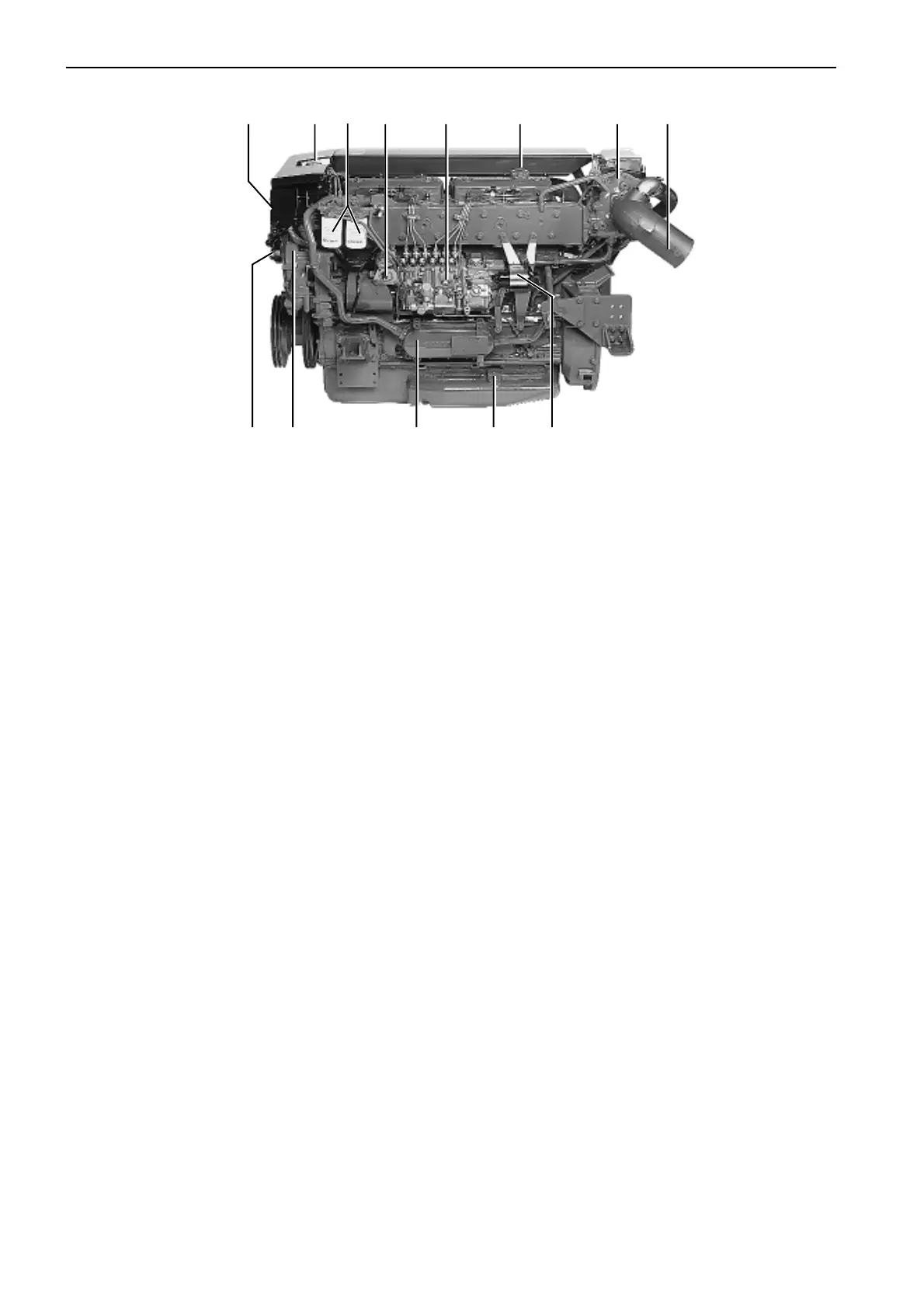

1 Junction box with circuit breakers
2 Coolant filler cap
3 Fuel filter, fine
4 Smoke limiter
5 Injection pump
6 Oil filler cap
7 Turbocharger
8 Water cooled exhaust riser (extra equipment)
9 Stop solenoid
10 Alt. dipstick location
11 Oil cooler, engine
12 Circulation pump
13 Alternator
Design and function
TAMD72WJ-A
1245 6 78
13 12 11 10 9
3
