Volvo Penta TAMD74P - Lubrication System and Reverse Gear Data

108
Lubrication system
TAMD63L-A, TAMD71B TAMD73P-A,
TAMD63P-A TAMD73WJ-A,
TAMD74C-A,
TAMD74L-A,
TAMD74P-A
Oil pressure, hot engine at normal running rpm .... 300–550 kPa (3.0– 450–650 kPa (4.5–6.5 kp/cm
2
=
5.5 kp/cm
2
= 43–80 psi) 61–94 psi)
at idling rpm ..................................... min. 150 kPa (1.5 kp/cm
2
= min. 150 kPa (1.5 kp/cm
2
=
21 psi) 21 psi)
Max. engine inclination when running ................... 15° 15°
TAMD63L-A, TAMD71B
TAMD63P-A
Oil capacity at oil change, without oil filter(s)*,
approx.:
no engine inclination, Max. ................................ 20 liters (5.3 US gals) 27 liters (7.1 US gals)
Min. ................................. 13 liters (3.4 US gals) 18 liters (4.8 US gals)
engine inclination 5°, Max. ................................. 16 liters (4.2 US gals) 23 liters (6.1 US gals)
Min. ................................. 10 liters (2.6 US gals) 15 liters (4.0 US gals)
engine inclination 10°, Max................................ 12 liters (3.2 US gals) 17 liters (4.5 US gals)**
Min................................. 7 liters (1.9 US gals) 12 liters (3.2 US gals)**
* Engine oil filter and by-pass filter have a
capacity of approx. 0.5 liter (0.5 quart).
** At a rearward engine tilt of >5° oil dipstick part No.
863166-5 should be used.
TAMD73P-A, TAMD74C-A,
TAMD73WJ-A TAMD74L-A,
TAMD74P-A
Oil capacity at oil change, without oil filters*,
approx.:
no engine inclination, Max. ................................ 28 liters (7.4 US gals) 25 liters (6.6 US gals)
Min. ................................. 19 liters (5.0 US gals) 18 liters (4.8 US gals)
engine inclination 5°, Max. ................................. 24 liters (6.3 US gals) 20 liters (5.3 US gals)
Min. ................................. 16 liters (4.2 US gals) 14 liters (3.7 US gals)
engine inclination 10°, Max................................ 18 liters (4.8 US gals)** 17 liters (4.5 US gals)**
Min................................. 16 liters (4.2 US gals)** 12 liters (3.2 US gals)**
* Engine oil filter and by-pass filter have a
capacity of approx. 0.5 liter (0.5 quart).
** At a rearward engine tilt of >5° the following oil
dipsticks should be used:
– TAMD73, part No. 863166-5.
– TAMD74, part No. 3827313-2.
Oil quality (all engines) .......................................... VDS (Volvo Drain Specification), or
CD or CE in acc. with API system.

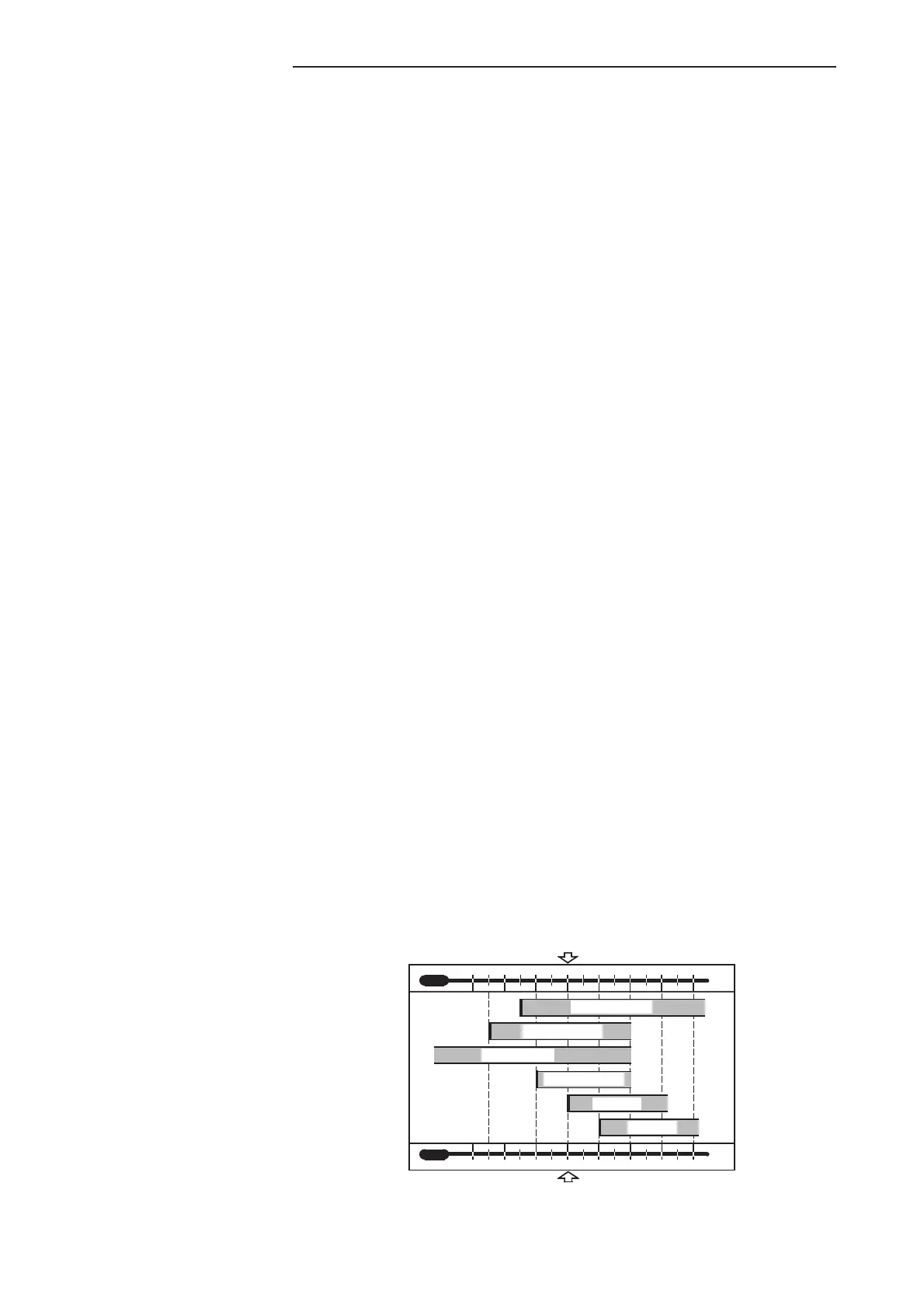

Viscosity at different ambient air temperatures .....
(Temperature based on constant ambient air
temperature).
* Refers to synthetic or semi-synthetic oil.
NOTE! Only SAE 5W/30 may be used.
SAE5W/30
−−
−−
−30
−−
−−
−20
−−
−−
−10 ±0 +10 20 30 40
−−
−−
−22
−−
−−
−4
++
++
+14 32 50 68 86 104
−−
−−
−15
o
C
SAE15W/40
−−
−−
−25
o
C
SAE10W/30
−−
−−
−10
o
C
SAE20W/30
±0
o
C
SAE30
SAE40
+10
o
C
o
C
o
F
✱✱
✱✱
✱
