Maintenance
This chapter describes the most common maintenance items. Refer to Maintenance Schedule, page 55 for service
intervals. When ordering service or spare parts, always specify the engine and transmission identification number.
Refer to Technical Data, page 91.
NOTICE! More information on how to perform service and maintenance can be found in the Service and
Maintenance handbook. Information on how to purchase the Service and Maintenance handbook can be found at
www.volvopenta.com.
CAUTION!
Read through the safety advice before starting any work.
WARNING!
Care and maintenance work should be done with the engine stopped unless otherwise specified. Stop the engine
before opening or removing the engine hatch/hood. Make it impossible to start the engine by removing the start key
and cutting the system voltage with the main switches.

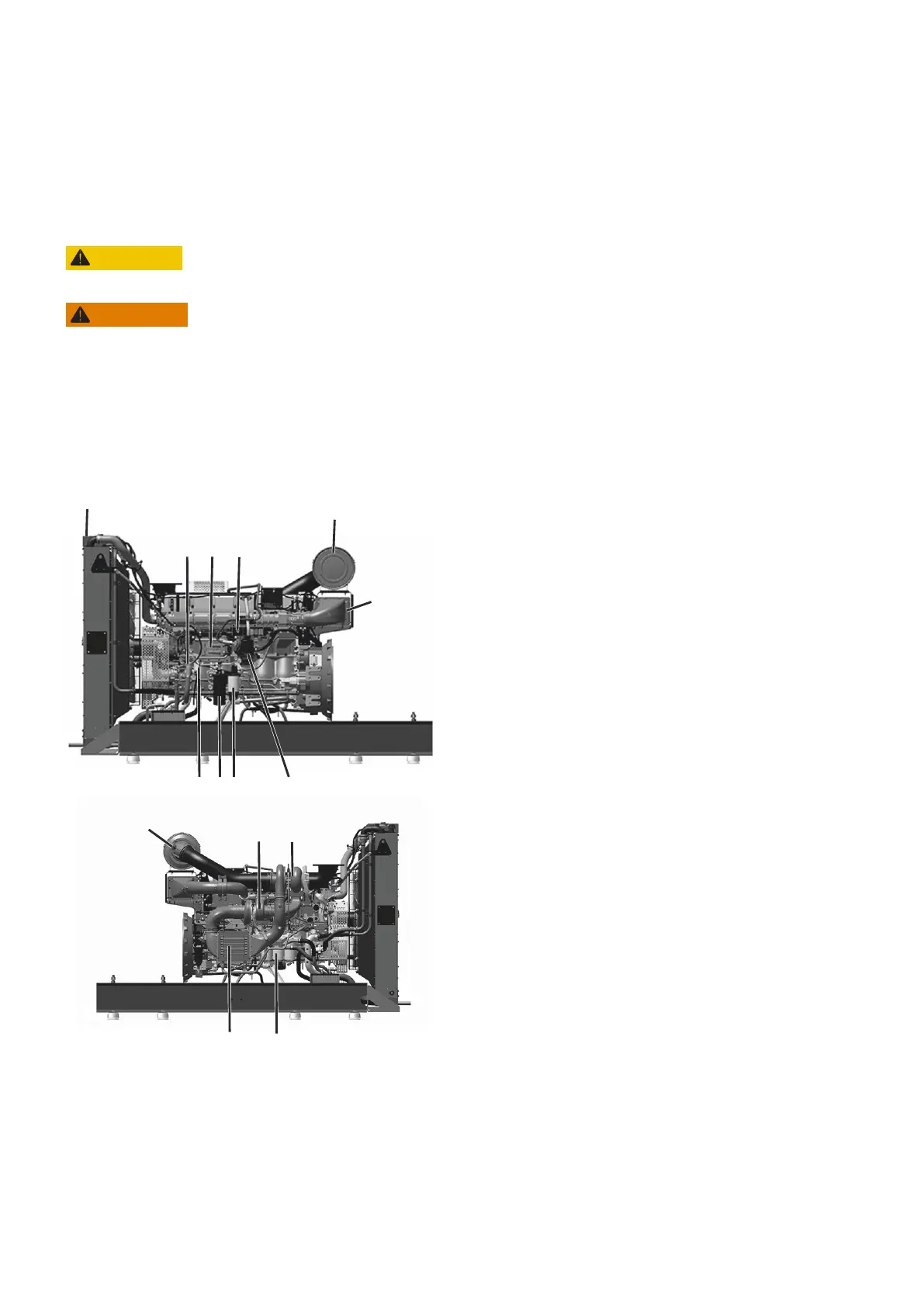

Orientation
1 Expansion tanks
2 Oil filler cap, engine
3 Control Unit, EMS
4 Auxiliary Stop
5 Air Filter
6 Charge air cooler (High-Pressure Turbo)
7 Crankcase ventilation
8 Fuel filter, with fuel pressure monitor
9 Fuel prefilter with water monitor
10 Oil dipstick
11 Air filter indicator
12 Low-Pressure Turbo
13 High-Pressure Turbo
14 Charge air cooler (Low-Pressure Turbo)
15 Oil filter
1
9
5
4
3
2
6
7
8
10
12
11
14
13
P0020401
15
56 47711094 08-2022 © AB VOLVO PENTA
