Service and maintenance
134 Power transmission
Drive axles, checking for leaks
Check that there are no leaks every 250 hours.
1 Place the machine in service position, see page 89.
2 Carry out a visual check for leaks.
Drive axles, changing oil
Change oil every 2000 hours. The first oil change must be
carried out at the 1000 hour warranty inspection.
1 Drain the oil by removing the drain plug on the respective axle
housing.
2 Reinstall the plug when all oil has run out.
3 Fill with new oil in the respective axle housing through the filler
plug hole.
Level and filler plug
Drive axle, tractor unit: right side, at the front
Front bogie axle: left side, at the back
Rear bogie axle: right side, at the back
Capacity when changing,
Front axle: 26 litres (6.9 US gal)
Front bogie axle: 28 litres (7.4 US gal)
Rear bogie axle: 26 litres (6.9 US gal)
For oil quality grades, see page 167.
Take care of filters/oils/liquids in an environmentally safe way,
see page 91.

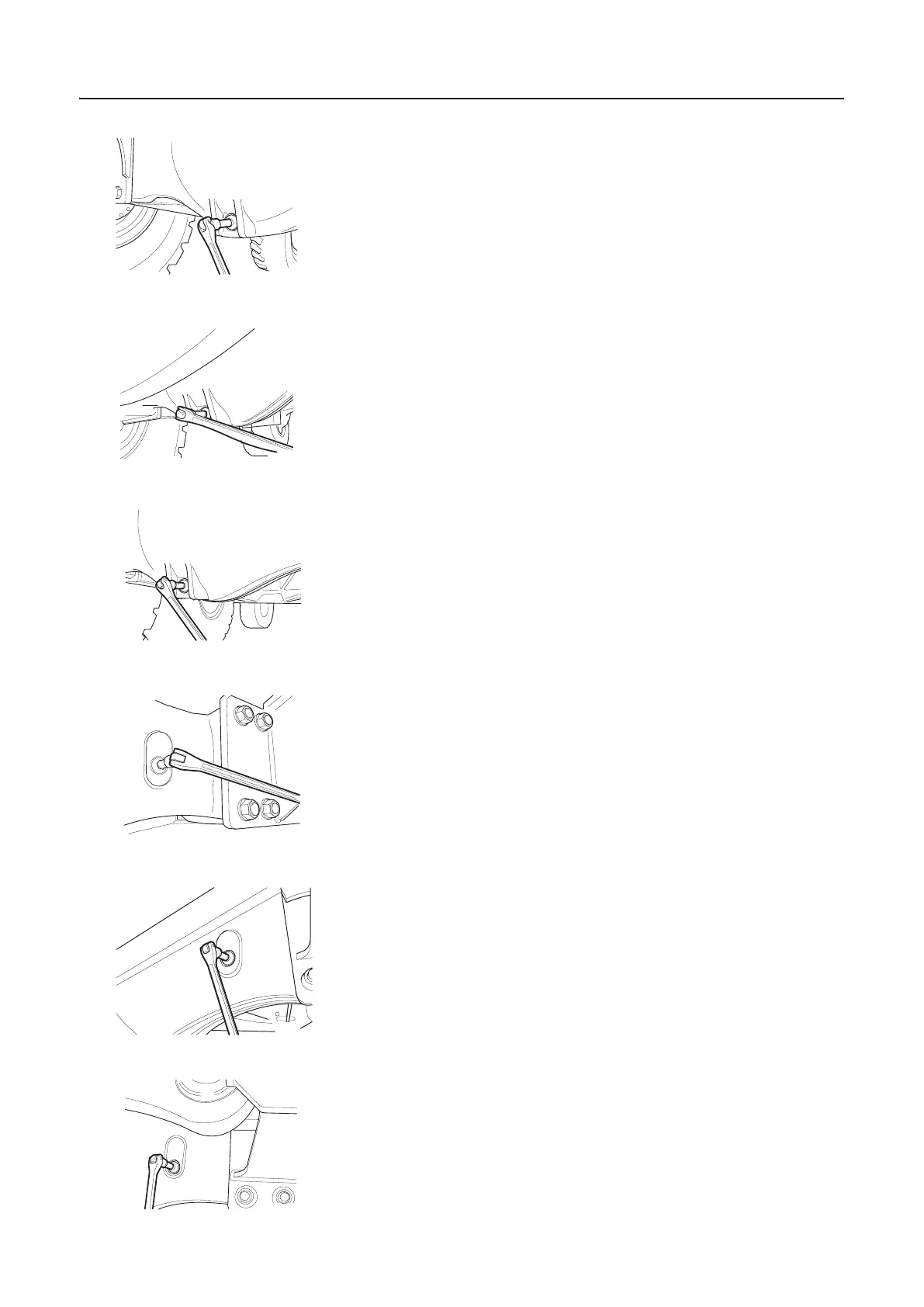

V1051914
Draining, front axle
V1052022
Draining, front bogie axle
V1052024
Draining, rear bogie axle
V1051915
Level and filler plug, front axle
V1052025
Level and filler plug, front bogie axle
V1052026
Level and filler plug, rear bogie axle
