Group
21

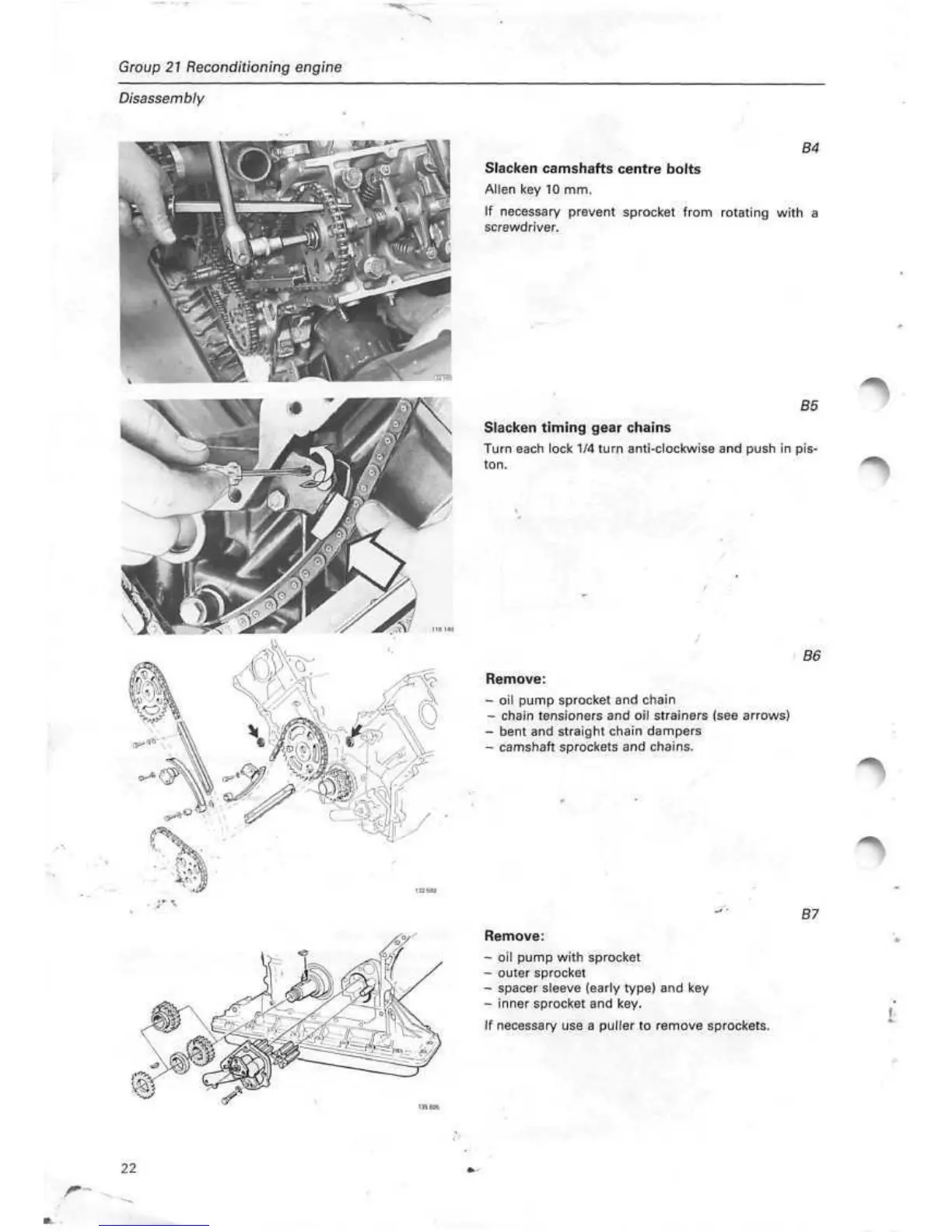

Reconditioning engine
Disassembly
B4
Slacken camshafts centre bolts
Allen key 10 mm.
If necessary prevent sprocket from rotating with a
screwdriver.
B5
Slacken timing gear chains
Turn each lock 1/4 turn anti-clockwise and push in pis-
ton.
B6
Remove:
- oil pump sprocket and chain
- chain tensioners and oil strainers (see arrows)
- bent and straight chain dampers
- camshaft sprockets and chains.
B7
Remove:
- oil pump with sprocket
- outer sprocket
- spacer sleeve (early type) and key
- inner sprocket and key.
If necessary use a puller to remove sprockets.
*>
22
