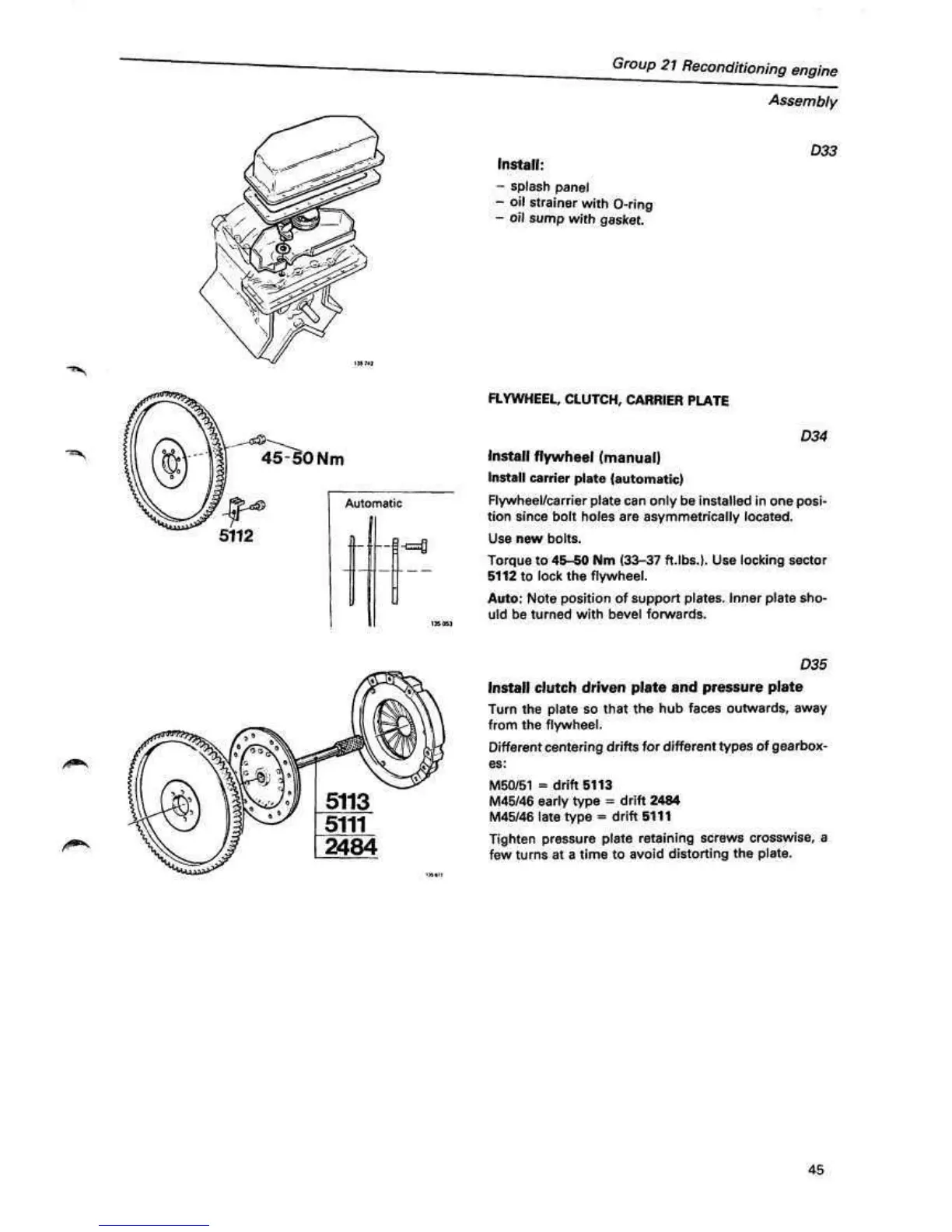

Group
21
Reconditioning engine
Install:
- splash panel
- oil strainer with
O-ring
- oil sump with gasket.
Assembly
D33
45-50 Nm
5112
Automatic
FLYWHEEL, CLUTCH, CARRIER PLATE
D34
Install flywheel (manual)
Install carrier plate (automatic)
Flywheel/carrier plate
can
only be installed in one
posi-
tion since bolt holes are asymmetrically located.
Use new bolts.
Torque to
45-50
Nm
(33-37
ft.lbs.). Use locking sector
5112 to lock the flywheel.
Auto:
Note position of support plates. Inner plate sho-
uld be turned with bevel forwards.
D35
Install clutch driven plate and pressure plate
Turn the plate so that the hub faces outwards, away
from the flywheel.
Different centering drifts for different types of gearbox-
es:
M50/51 = drift 5113
M45/46 early type = drift 2484
M45/46 late type
=
drift 5111
Tighten pressure plate retaining screws crosswise, a
few turns at a time to avoid distorting the plate.
45
