Volvo EC15E - Instrument Panel, Left

Instrument panel, left
Immobiliser System (optional equipment)
NOTE!
The machine can be equipped with an Immobiliser
System with keypad or an Immobiliser Antenna
System at ignition (see page
38 ).

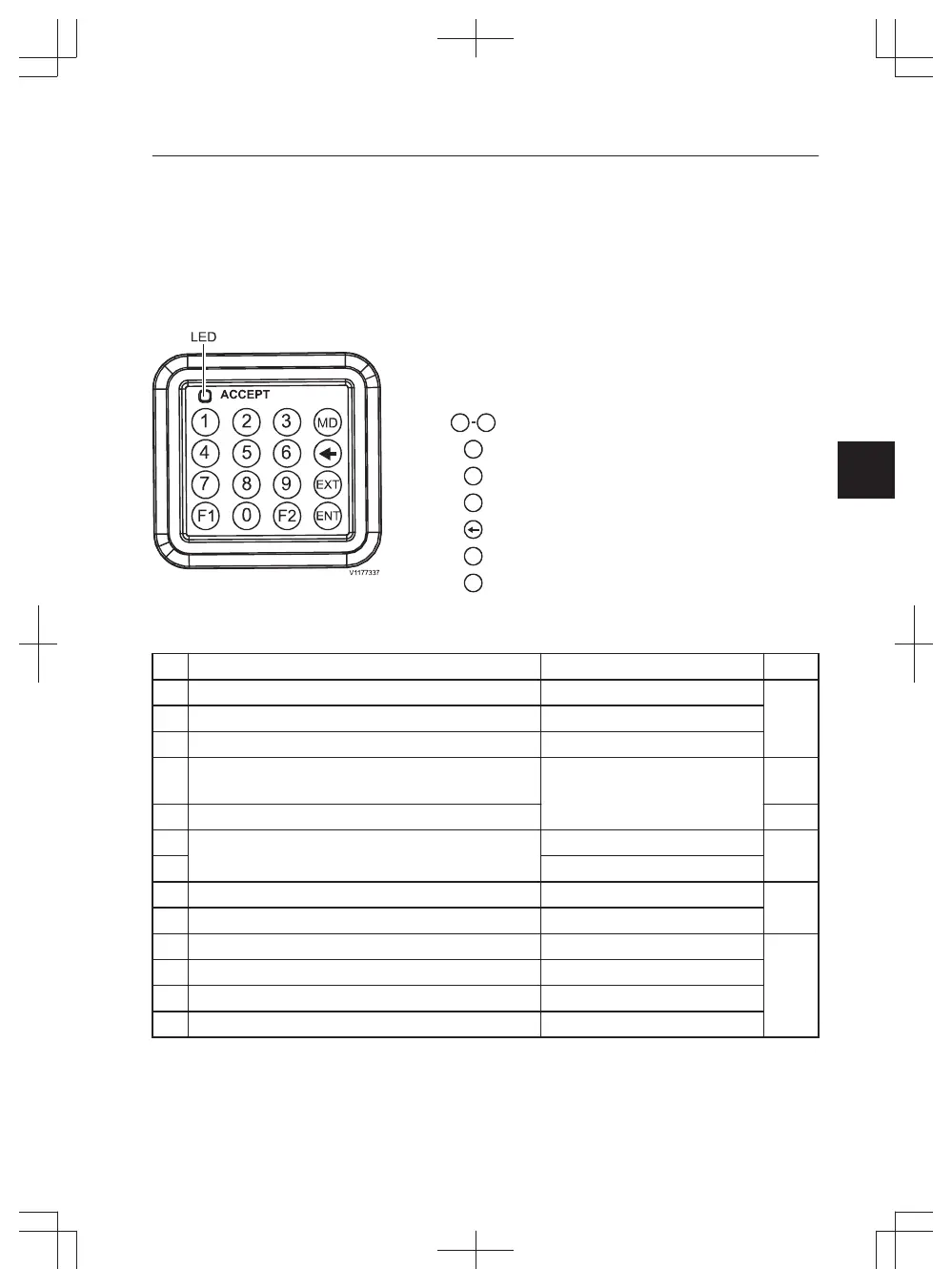

1. Keypad
LED Shows system status by flash codes
(see table below)
90
Number keys to enter codes
F1
Function key 1
F2
Function key 2
MD
MD key to enter Codes
Arrow key
EXT
Exit key
ENT
Enter key
2. LED flash codes
No. Status Flash Code Cyclic
0 disarmed on for 3 s.
no1 armed flashes every 0.5 s. for 60 s.
2 code stored/accepted 2 flashes
3
code already in memory / program mode
canceled
3 flashes
yes
4 program mode no
5a
code failure
5 flashes + 4 flashes
yes
5b 4 flashes
6 timeout 5 flashes
no
7 memory full 6 flashes
8 all codes deleted 7 flashes
yes
9 memory empty flash every 0.1 s.
10 factory mode flash every 0.5 s.
11 monitoring mode flash every 1 s.
3. Concept
The Immobiliser System is delivered without Master
or User Codes.
The 6-digit Master Code must be programmed to
activate the system (follow item 4).
