Operator's seat, adjusting
WARNING
Risk of serious accidents.
Sudden movement of operator's seat could cause
loss of machine control. This could result in
accidents with serious injuries.
Always stop the machine before adjusting the
operator´s seat.
WARNING
Risk of serious injury.
Uncontrolled touch of control levers could cause
unexpected movement of machine or parts. This
could result in serious injury.
Always lock the control lock out lever before
adjusting the seat.
NOTICE
Installation and maintenance of the operator seat
may only be carried out by authorised and
competent personnel.

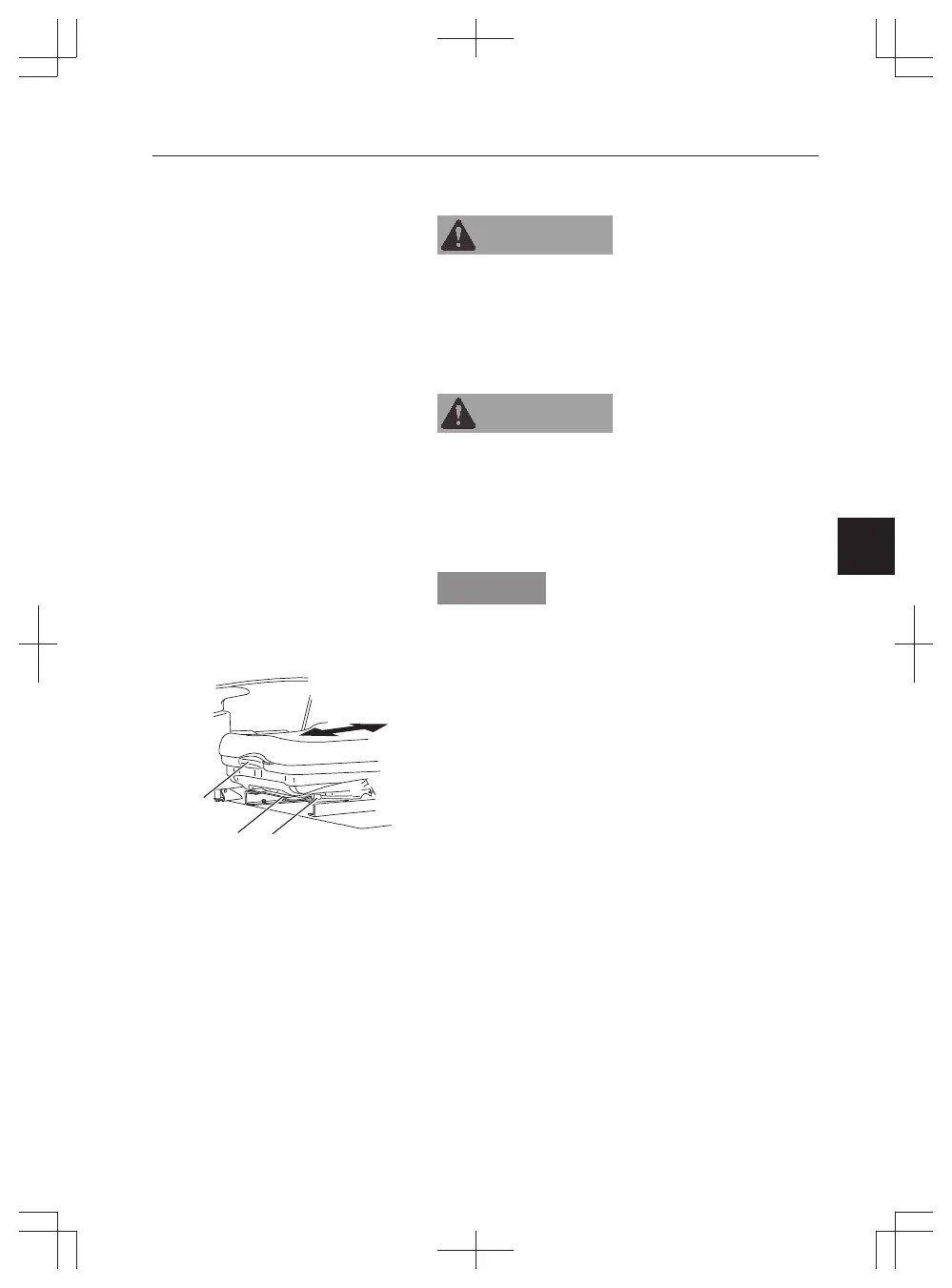

Operator’s seat, option variant A
Horizontal adjustment
1 Pull lever (1) slightly up.
2 Adjust the seat to the desired position.
3 Check that the seat has properly engaged.
Backrest adjustment
1 Pull lever (2) slightly up.
2 Adjust the inclination of the backrest.
NOTE!
Adjusting the backrest automatically changes the
horizontal adjustment of the seat!
Weight adjustment
Resetting to zero:
Pull lever (3) fully back to reset the weight
adjustment to the minimum weight.
Adjustment depending on the weight of the
operator:
Pull lever (3), until the desired weight is displayed.
