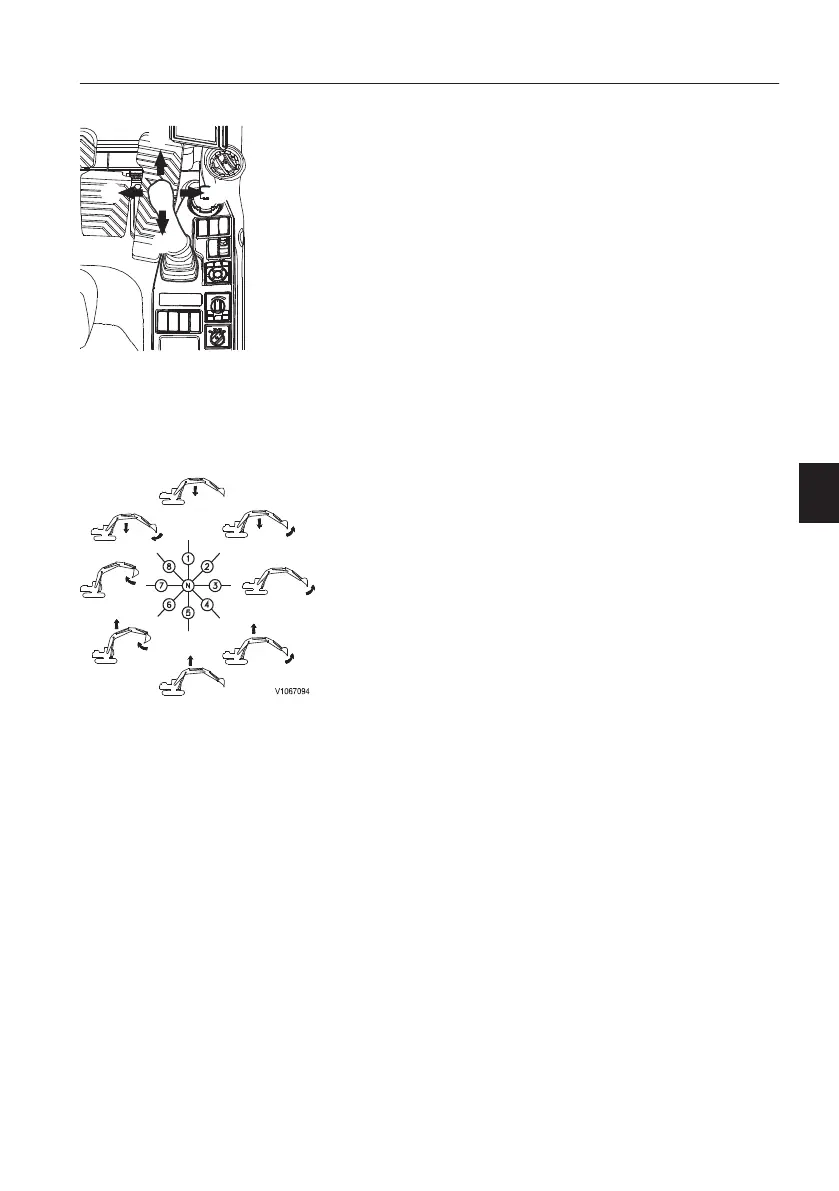

This lever is for moving boom and bucket.
1 Bucket in
2 Bucket out
3 Boom lower
4 Boom raise
N Neutral (boom and bucket are maintained at rest position)
1 Lower boom
2 Lower boom and bucket out
3 Bucket out
4 Raise boom and bucket out
5 Raise boom
6 Raise boom and bucket in
7 Bucket in
8 Lower boom and bucket in
