06 Starting and driving
144
Adjusting headlamp pattern
06

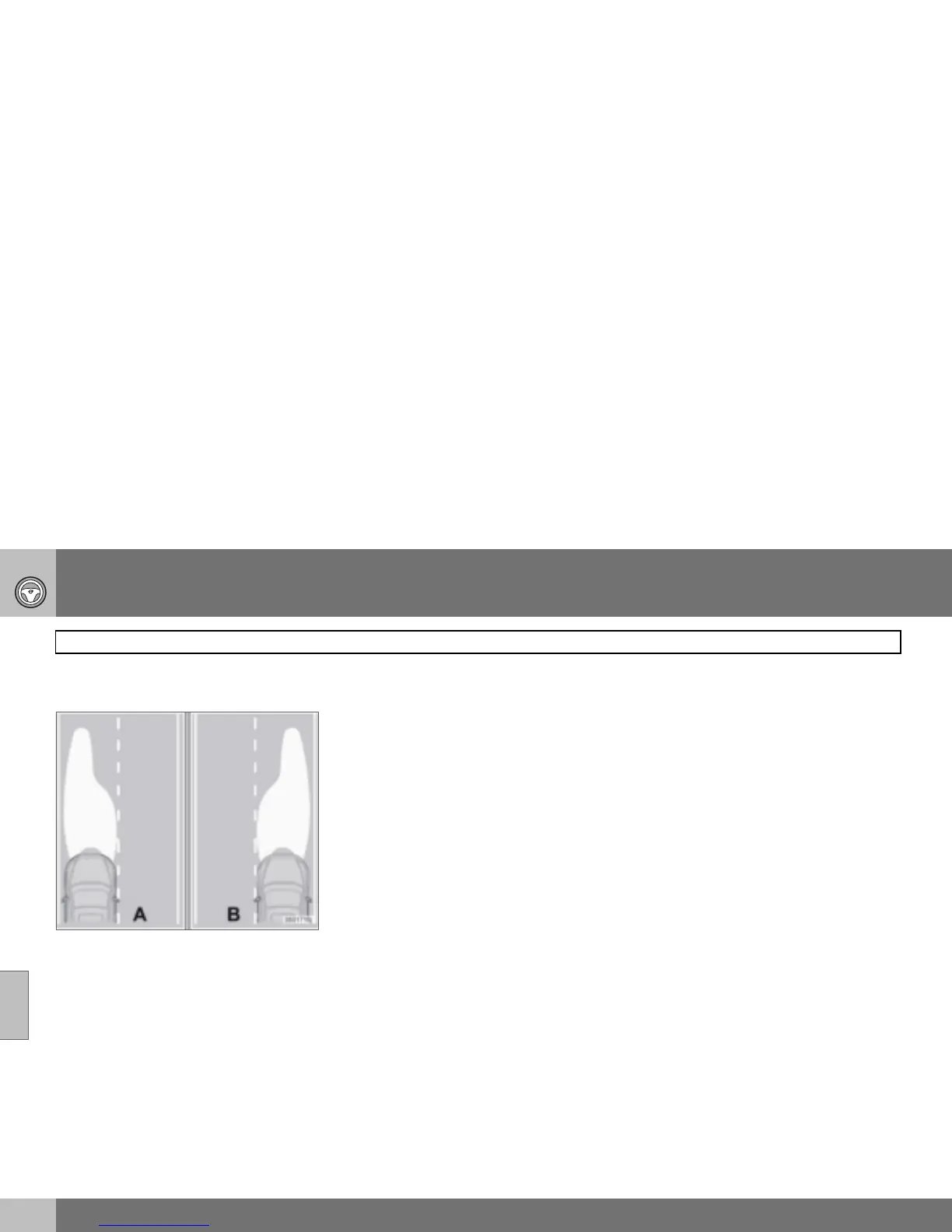

Correct light pattern for right or left-
hand traffic
A. Headlamp pattern for left-hand traffic.
B. Headlamp pattern for right-hand traffic.
So as not to dazzle oncoming drivers, the
headlamp beam pattern can be altered by
masking the headlamps. The quality of the
beam pattern may not be as good.
Headlamp masking
Copy the templates and transfer the pattern
to a self-adhesive, waterproof material such
as opaque tape or the like.
The mask is positioned using the dot (5) in
the headlamp lens as a reference point. The
reference measurement (X) indicates the dis-
tance from the dot (5) to the corner of the
mask, marked with an arrow.
After copying the templates located on the
next page, check the measurements so that
the reference measurements cover enough
of the beam pattern.
Adjusting headlamp pattern for Active
Bi-Xenon Lights ABL see page 47.
