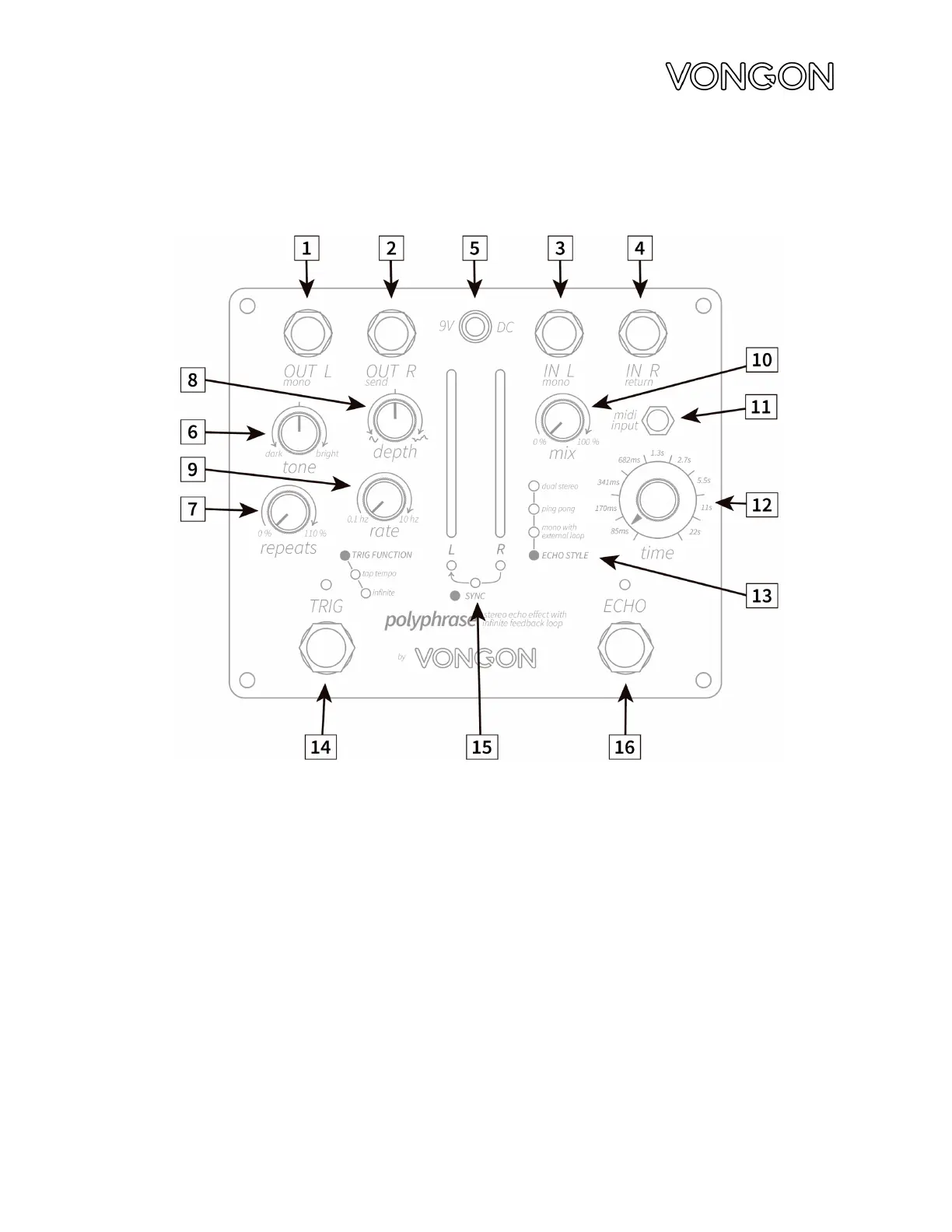

FRONT PANEL
1) LEFT OUTPUT: 1/4” jack, unbalanced signal output, instrument or line level.
2) RIGHT OUTPUT: 1/4” jack, unbalanced signal output, instrument or line level. Echo
send in “mono with external loop” echo style.
3) LEFT INPUT: 1/4” jack, unbalanced signal input, instrument or line level
4) RIGHT INPUT: 1/4” jack, unbalanced signal input, instrument or line level.
Normalled to le input. Echo return in “mono with external loop” echo style.
5) POWER INPUT: 9VDC center negative, 200mA
