Vonyx ST016 User Manual

4

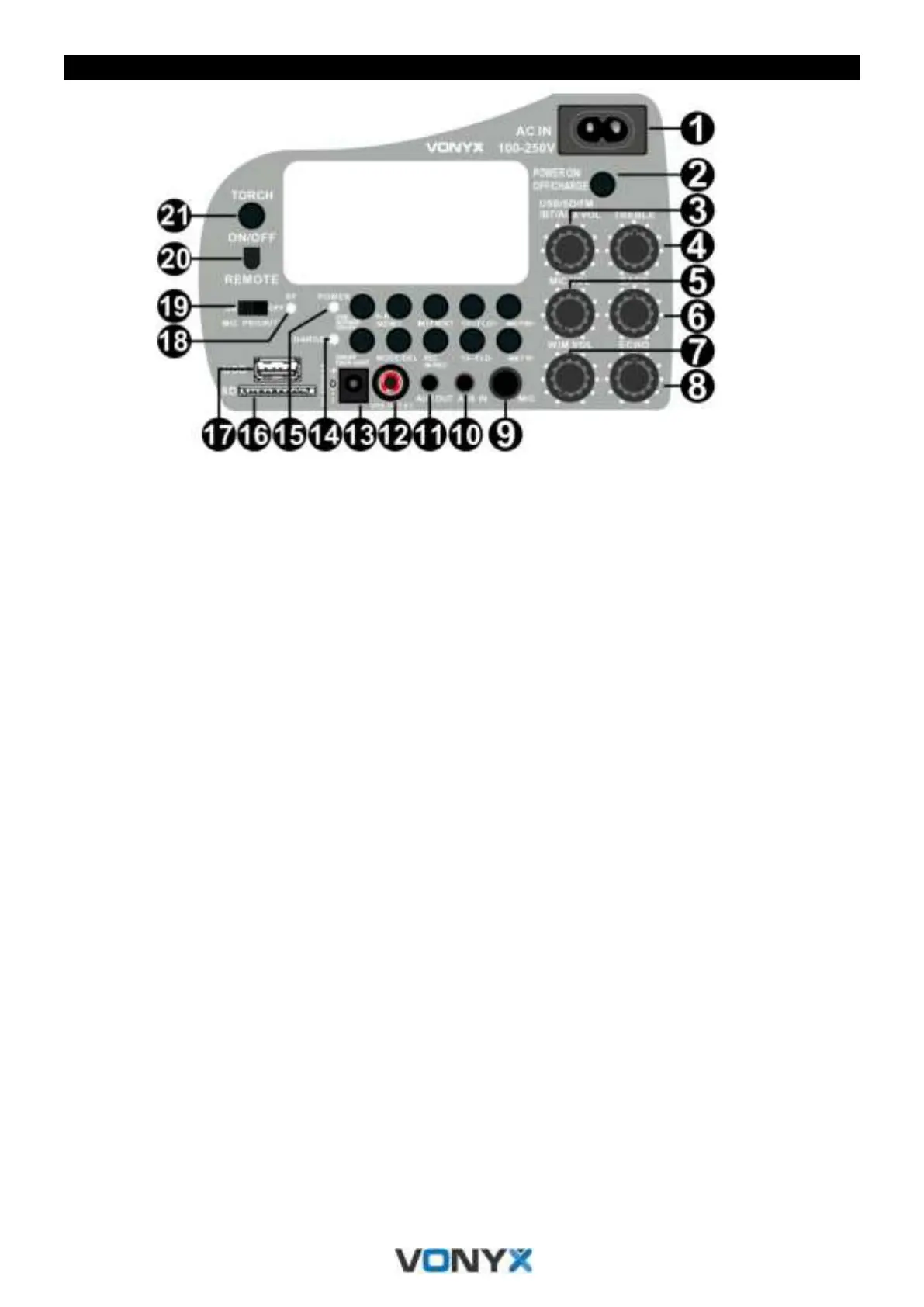

OVERVIEW
1. AC Power Socket
Socket for plugging in the supplied power cord.
2. Power ON/OFF- / Charge
Press to turn ON/OFF the main PA amplifier. Charge mode can only be used in OFF status.
3. USB/SD/BT/AUX Volume
Volume control for USB/SD/BT/AUX modes.
4. Treble
Turn to adjust the treble level.
5. Microphone Volume
Turn to adjust the wired microphone input level.
6. Bass
Turn to adjust the bass level.
7. W/M Volume
Turn to adjust the wireless microphone input volume.
8. Echo
Turn to adjust the digital echo effect.
9. Microphone Input Jack
6.5mm microphone input jack.
10. AUX Input
3.5mm auxiliary input jack (mono).
11. AUX Output
3.5mm auxiliary output jack (mono).
12. SPK Out 8Ohm
8 Ohm speaker output connector.
13. DC12V Adapter Input
DC12V, 2.5A adapter input connector.
14. Charge LED
Lights up in red when charging. Dimmed when fully charged.
15. Power LED
Shows power status (ON/OFF).
16. SD Card Slot
Insert an SD card in this slot.
17. USB Port
USB entry port.
18. RF LED
LED indicator to show microphone signal status. When using microphone 1, the LED will light up in green.
When using microphone 2, the LED will light up in orange. When using both, the LED will be yellow.
19. Microphone Priority Switch
Turn on to give microphone signal priority. When speaking through the microphone, the music volume will be muted (when
in MP3 mode).
20. Infrared Remote Control Receiver
21. Torch
Push to turn ON/OFF the flashlight (torch) function.

Vonyx ST016 Specifications

General

Product type	-
LED indicators	Power
Operating frequency	863 - 865 MHz
3.5 mm (1/8-inch) in	Yes
6.35 mm (1⁄4-inch) output	1
Total Harmonic Distortion (THD)	0.1 %
Microphone type	Handheld microphone
Microphone power source type	Battery
Battery voltage	12 V
Receiver type	Bodypack receiver
Receivers AF frequency response	50 - 16000 Hz
Input voltage	100 - 240 V
Input frequency	50 / 60 Hz

Weight and Dimensions

Receiver dimensions (WxDxH)	180 x 320 x 215 mm
