Vonyx ST016 User Manual

5

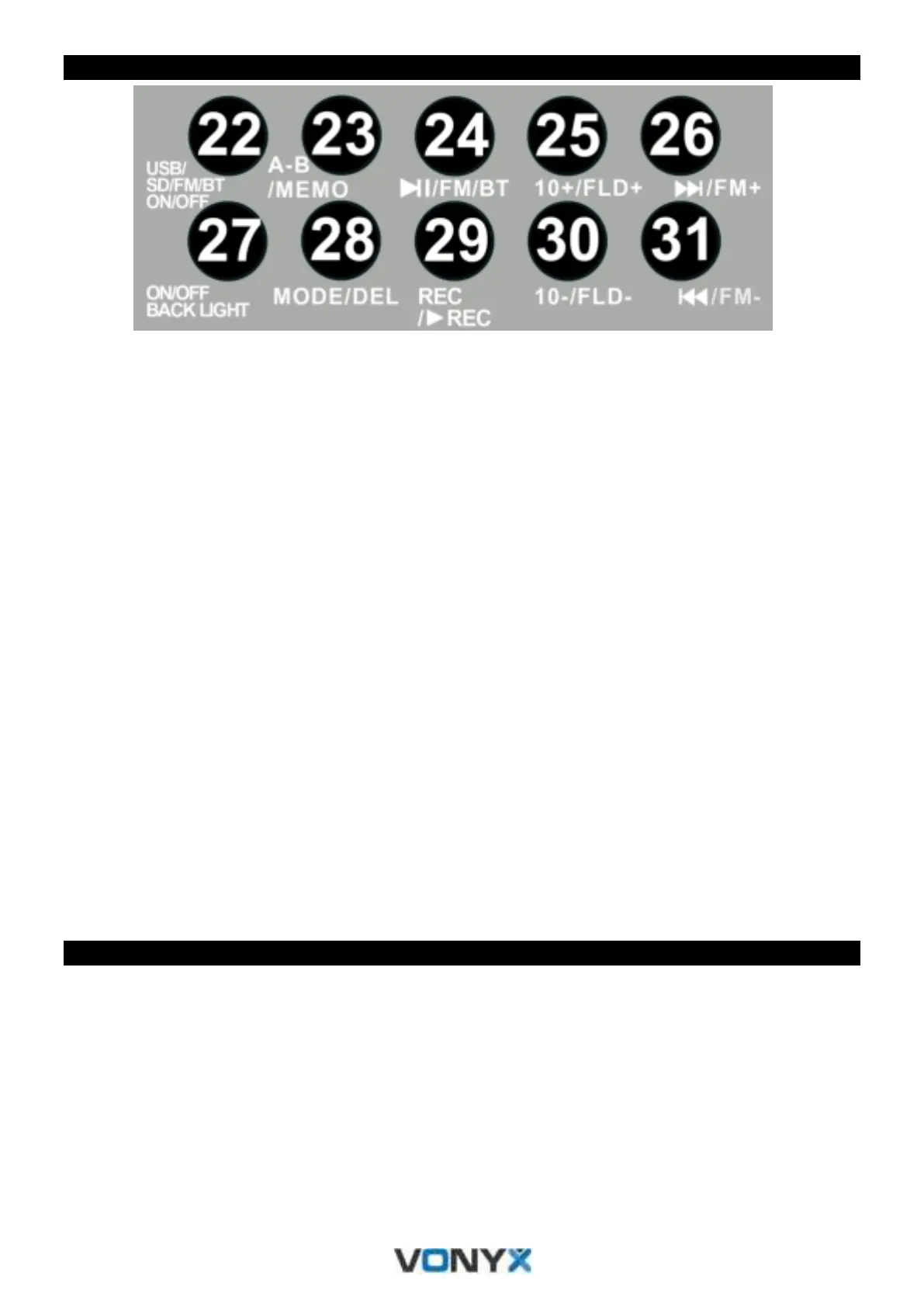

BUTTON CLUSTER
22. USB/SD/FM/BT / ON/OFF
Press to power on the LCD display. Press again to select the USB/SD/FM/BT modes. Long press to turn the LCD display off.
23. A-B/MEMO
In MP3 mode: press to set A and B points to create a segment to repeat. Long press to switch the warning tone from English
to Chinese.
In FM mode, press this button to have the below functions: press to save the current FM frequency (in FM mode). Press
again to select any of the saved stations.
Hold for more than 2 seconds to initiate the manual search setting mode. Use the FM+ and FM- buttons to select what radio
stations you want to memorize and save. Press A-B/MEMO again to confirm your input.
24. PLAY/PAUSE / FM/BT
Press in MP3 mode to play/pause. Press in FM mode to search FM radio stations and automatically memorize (auto scan
and memory). Press once in BT mode to terminate the BT connection between mobile device and PA system.
Press again to restore the connection.
25. 10+/FLD+
Press in MP3 mode to skip 10 tracks. Long press to skip one folder.
26. NEXT/FM+
Press in MP3 mode to skip to next song. Press and hold to fast forward within the current track. Press in FM mode to
increase 100KHz, press and hold to auto scan for next FM station.
27. ON/OFF BACKLIGHT
Press to turn the backlight on/off.
28. MODE/DEL
Press in MP3 mode to repeat a single track, “ONE” will be shown on the LCD display. Please again to repeat a full folder,
“FOLDER” will be shown on the LCD display. Press a third time to repeat all, “ALL” will be shown on the LCD display.
Press and hold for over 2 seconds in MP3 mode to delete the selected file(s). Use PREVIOUS/FM- and NEXT/FM+ buttons
to select the file(s): ONE is single track, FOL is present folder and ALL is all folders. Press MODE/DEL again to confirm the
delete.
Press and hold for more than 2 seconds again (or press the STOP/MEMO button) to exit.
29. REC/PLAY REC
Press to record the wireless microphone input, AUX input or wired microphone input.
30. 10-/FLD-
Press in MP3 mode to go back 10 tracks. Long press to select the previous folder.
31. PREVIOUS/FM-
Press in MP3 mode to select the previous track. Press and hold to scan back within the current track. Press in FM mode to
decrease 100KHz, press and hold to auto scan for previous FM station.
REMOTE CONTROL
1. Power ON/OFF
Press to turn ON/OFF the main PA amplifier.
2. Mute
Press to (un)mute the PA amplifier.
3. Repeat
Press in MP3 mode to repeat a single track, “ONE” will be shown on the LCD display. Please again to repeat a full folder,
“FOLDER” will be shown on the LCD display. Press a third time to repeat all, “ALL” will be shown on the LCD display. Press
a fourth time to cancel repeat mode.
4. Stop
Press to stop play in MP3 mode.
5. Play/Pause
Press to (re)start or pause play.
6. Mode
Press to change modes (MP3, FM and BT).

Vonyx ST016 Specifications

General

Product type	-
LED indicators	Power
Operating frequency	863 - 865 MHz
3.5 mm (1/8-inch) in	Yes
6.35 mm (1⁄4-inch) output	1
Total Harmonic Distortion (THD)	0.1 %
Microphone type	Handheld microphone
Microphone power source type	Battery
Battery voltage	12 V
Receiver type	Bodypack receiver
Receivers AF frequency response	50 - 16000 Hz
Input voltage	100 - 240 V
Input frequency	50 / 60 Hz

Weight and Dimensions

Receiver dimensions (WxDxH)	180 x 320 x 215 mm
