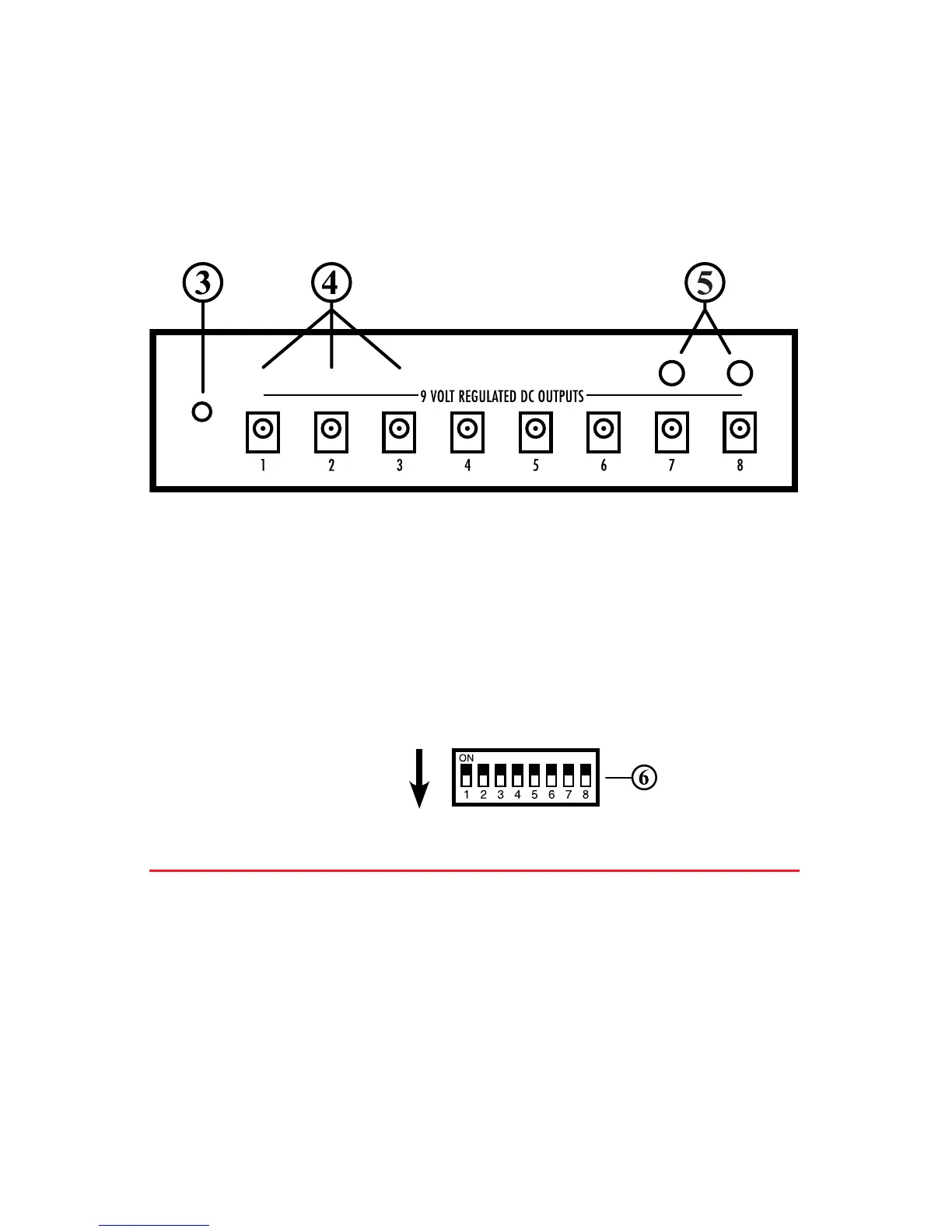

3. Power indicator. This LED indicates the Pedal Power system
unit is operating.
4. DC output jacks (8). Each output provides 9 volts of isolated,
filtered and regulated DC power for your pedal effects.
5. SAG controls. Next to output jacks 7 and 8 are controls to
vary the voltage from 4V to 9V.
6. Voltage selector DIP switches. These switches select the
output voltage. Switches 1-8 correspond to DC outputs 1-8.
Normal 9V operation is with the switch in the NORMAL
(OFF) position.
NORMAL
About Pedal Boards
Before connecting the Pedal Power to your pedals, let’s talk about
pedal boards. The best installation is to mount your pedals and
power supply to a suitable pedal board. You can use anything
from a piece of plywood, a professionally built board from most
flight case manufacturers, or one of the innovative designs from
Pedaltrain. Securely mounting your effects and power supply will
make it easy to transport without damage and eliminates excessive
flexing of cables which will cause their premature failure.
