Zircon Master S En 230V v11 8

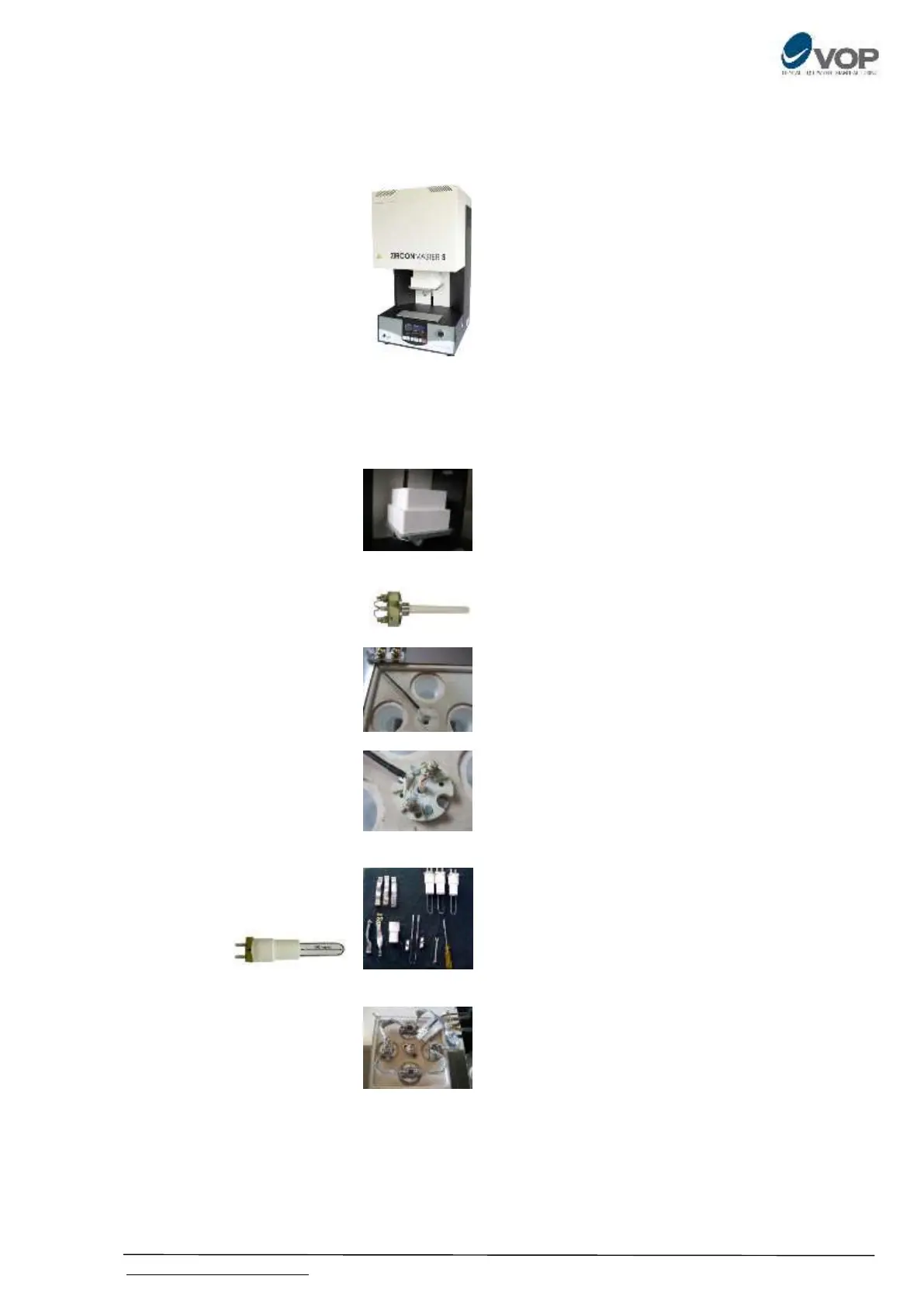

4. INSTALLATION
UNPACKING
ASSEMBLY
Carefully remove modules from packages;
Install ceramic table as it is shown in the picture;
Unpack and Install the thermocouple;
Install the heaters in the ceramic tubes. Beware
distance from the end of the heater to the
carrier (working part) to be equal to 95 mm;
It is recommended to use the special plastic tool,
which is supplied together with the furnace.
Install and connect the assembled heating
elements as it is shown on the picture;
ATTENTION!
After installing the heaters look inside the muffle
and make sure they do not touch the ceramic
brick. If necessary adjust their location.
