GETTING STARTED

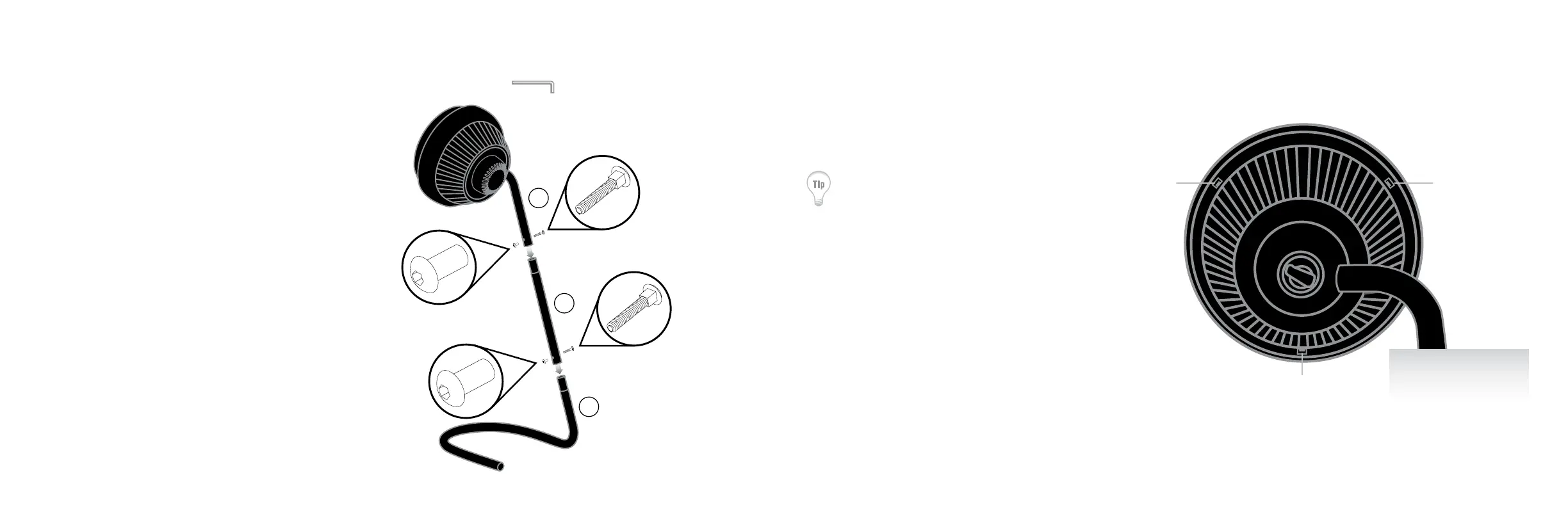

STAND ASSEMBLY (Model 693) HEX WRENCH REQUIRED (INCLUDED)
1. Attach Head Assembly (A) to Extension (B) with nut and screw
provided.
2. Attach Extension (B) to Base (C) with screw provided.
HEIGHT ADJUSTMENT
(27 - 39 INCHES)
Add extension (B) for full 39" tall product. Remove extension (B) for
27" tall product.
GRILL REMOVAL
1. Release the front grill clips located at the 10, 6 and 2 o’clock
positions. Press the Front Grill Clip downward to release.
A at head screw driver may be used if front grill clips are
difcult to release.
2. Dust or wash Grill with a mild dishwashing soap.
3. To reattach - align the front grill clips with the holes and
rmly snap each clip back into place.
CLEANING
GRILL REMOVAL
WARNING: To reduce the risk of electrical shock and injury to persons, unplug the circulator before removing grill.
A
C
Screw
Screw
B
Nut
Nut
ClipClip
Clip
Note: The motor is
permanently lubricated
and requires no oiling.
