GETTING STARTED
BASE ASSEMBLY Phillips head screwdriver required.
1. Assemble the two base halves together, pressing the two halves
together until ush. You should hear a slight click when fully
connected.
2. Feed the power cord through the center hole on the base.
3. Assemble the base to the bottom of the tower. There is an
alignment pin (A) located on the bottom of the tower and an
alignment recess (B) located on the base. An arrow on the bottom
of the base indicates alignment recess location. To ensure correct
assembly, position base onto bottom of tower with (A) and (B)
aligned. See Figure A.
4. With the base in position, secure the base to the tower with the 4
Phillips screws provided. Tighten the screws securely but do not
over tighten.
5. Route the powercord through cord path located on bottom of
base.
WARNING: Pinch hazard. Use caution when assembling.
WARNING - Choking hazard. Keep small parts, like screws, away
from children and pets.

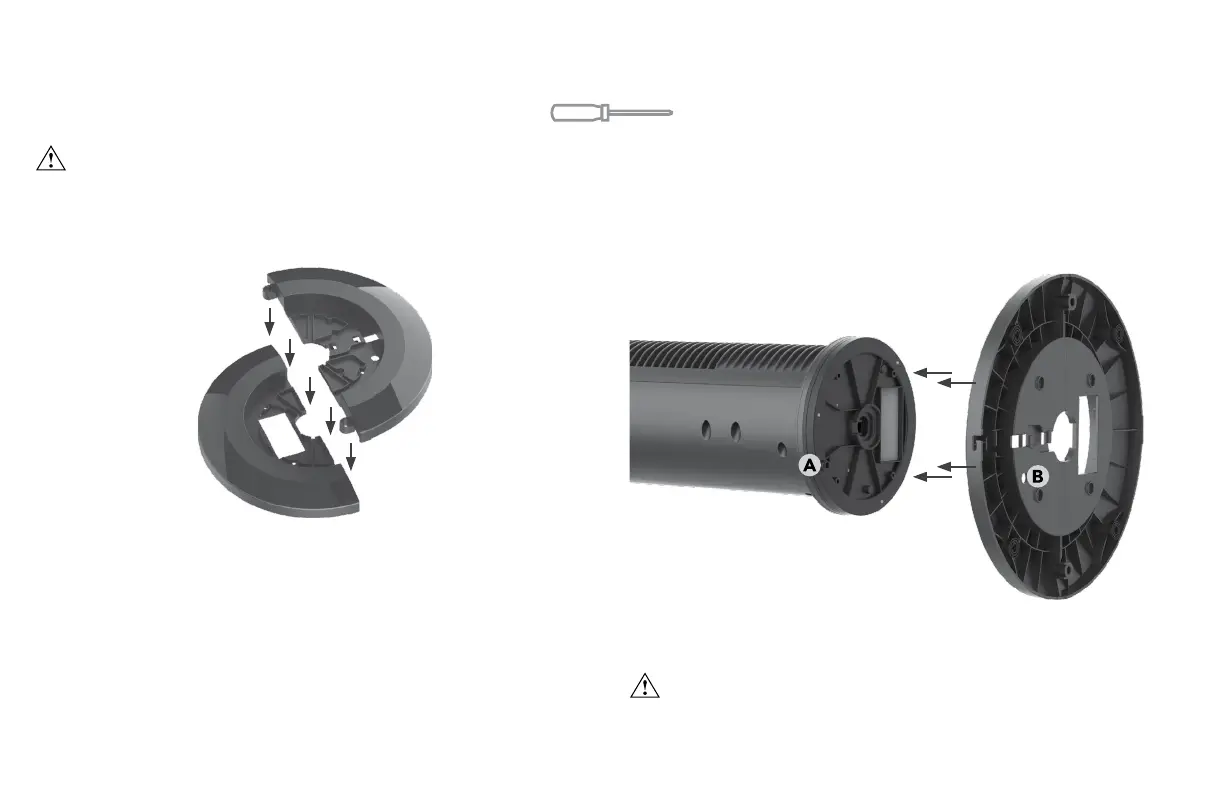

Figure A
