VIPER RED DOT
6 7

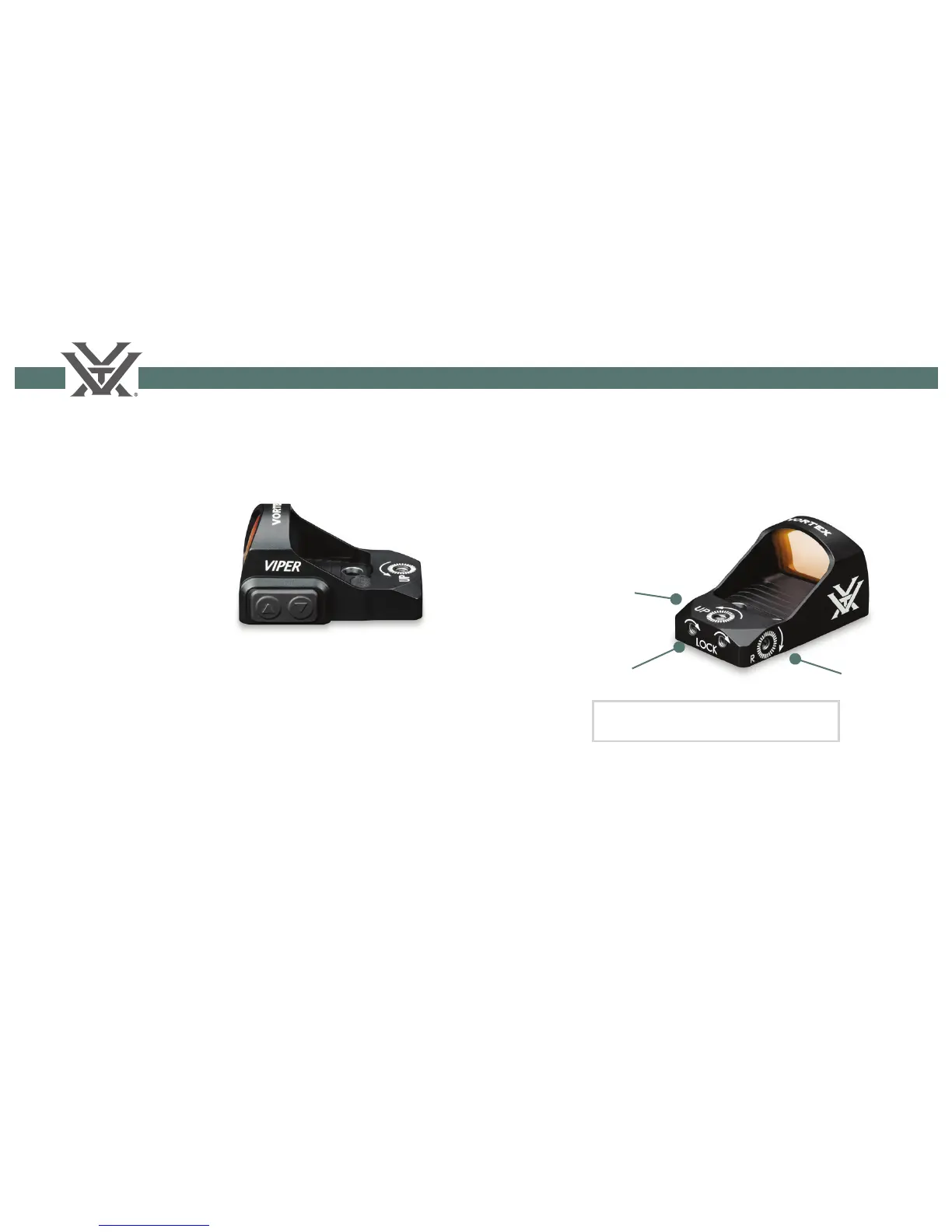

The Viper features adjustable elevation and windage
dials with 1 MOA marks.
Note: The adjustments are protected by lock screws
which must be loosened with the
small screwdriver before any
adjustments are made.
Windage and Elevation Adjustment
To turn the Viper on, press either the up or down
arrow. To turn off, press and hold the down arrow for
five seconds.
Powering Up
Adjust the illumination instensity using the
appropriate arrow button:
Brightness Adjustments
4 5
Power Off
Press and hold
the down arrow.
Power On
Press the up or
down arrow.
• Tap the up arrow to increase brightness.
• Tap the down arrow to decrease brightness.
To adjust the elevation and windage settings:
1. Loosen the Adjustment Lock Screws 1½ turns.
2. Adjust dials up or down or left or right as
indicated by arrows.
3. Re-tighten lock screws after making adjustments.
Lock Screws
Elevation Dial
Windage Dial
One dial mark yields one MOA of adjustment.
One MOA = 1.05 inches @100 yards.
