MOUNTING THE VIPER
In addition to the supplied low rail mount, an
optional riser mount places the Viper red dot at
correct height for AR-15 rifl es.
Mounting Options
6 7
The Viper red dot is shipped from the factory with
a low rail mount that clamps to both a Weaver or
Picatinny rail.
Note: If your fi rearm is
not already equipped
with a base rail, it may
be purchased from many
fi rearms dealers.

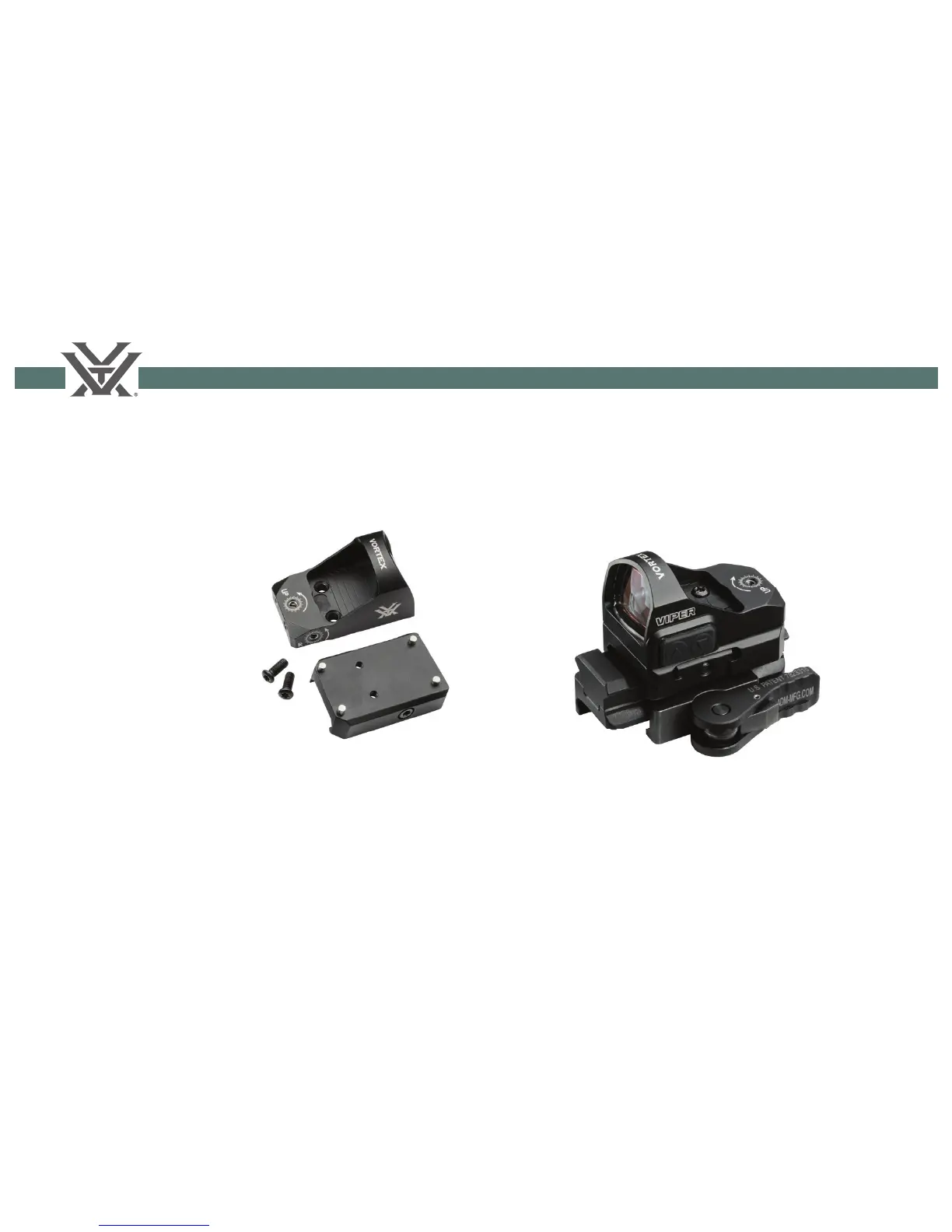

1. Attach the low rail
mount to the Viper using
the included screws.
2. Attach the Viper to the
Picatinny base rail, making
sure the recoil lug is solidly
seated in the base groove.
3. Check to see that the clamp is fully down and
hooked around the outside of the base.
4. Press the Viper down and forward toward
the muzzle and, using the supplied hex wrench,
fi rmly tighten down the clamp screw.
Check www.vortexoptics.com for other mount options.
