Vox AC4TV User Manual

4

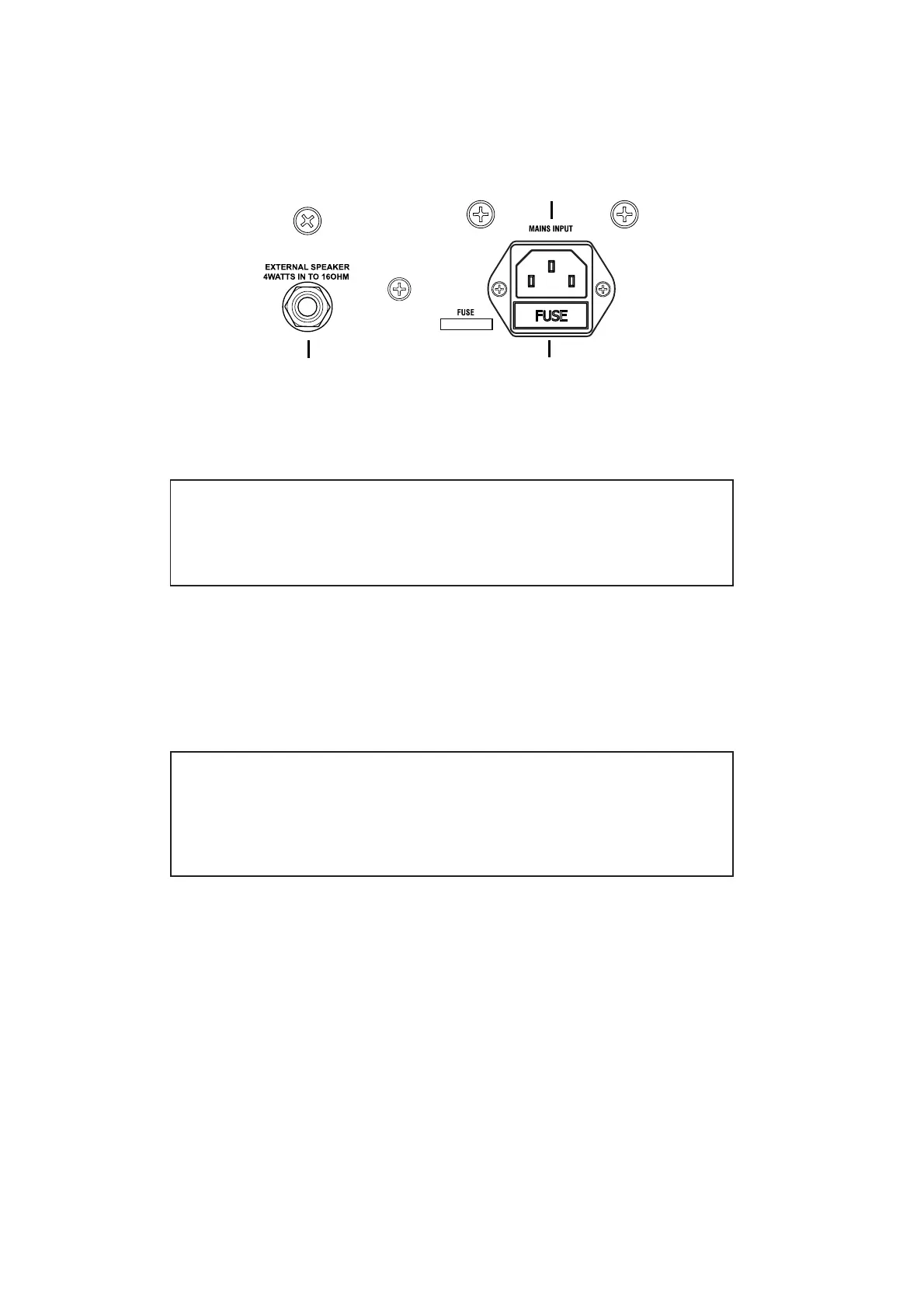

REAR PANEL LAYOUT
1
3
2
1. EXTERNAL SPEAKER Jack - This is used to connect the AC4TV to any 16ohm cabinet.
Note ! When an external cabinet is connected, the internal speaker is disconnected.
(FYI - the AC4TV sounds awesome through a VOX V412BN 4 x 12" Cabinet!)
WARNING ! Always use a non-screened VOX approved speaker lead with
the AC4TV Amplifier and extension cabinets.
WARNING ! NEVER operate this amplifier without the loudspeaker load
being connected. Serious damage can occur otherwise.
2. MAINS INPUT - Connect your electricity here with the supplied, detachable Mains (power)
cord.
3. MAINS FUSE - (serious bit) The fuse provides an overall safety protection in the event
your amplifier develops and electrical fault.
The correct value of the fuse is located on the rear panel of your amplifier and should only
be replaced with one of the same value.
WARNING ! Please ensure that your amplifier is connected to the correct
mains power voltage—please check the rear panel rating plate.
If in doubt consult dealer.
WARNING ! This amplifier must always be earthed (grounded) to prevent
the risk of electrical shock.
SPECIFICATIONS
Power Output: 4 Watts RMS into 16 ohm
Loudspeaker: 10 inches 16 ohm VX10 Celestion custom speaker
Dimensions (W x H x D): 350 x 375 x 215 mm (13.78 x 14.76 x 8.46 inches)
Weight: 9.0 Kg (19.84 lbs.)
Included items: Power cable, Owner’s manual
Specifications and appearance are subject to change without notice for improvement.
www.voxamps.com

Vox AC4TV Specifications

General

Power Output	4 Watts
Tubes	1 x 12AX7 (Preamp), 1 x EL84 (Power)
Type	Tube
Speaker	1 x 10" Celestion
Controls	Tone, Volume, Power (4W/1W/0.1W)
Inputs	1 x Instrument
Outputs	1 x External Speaker Output
