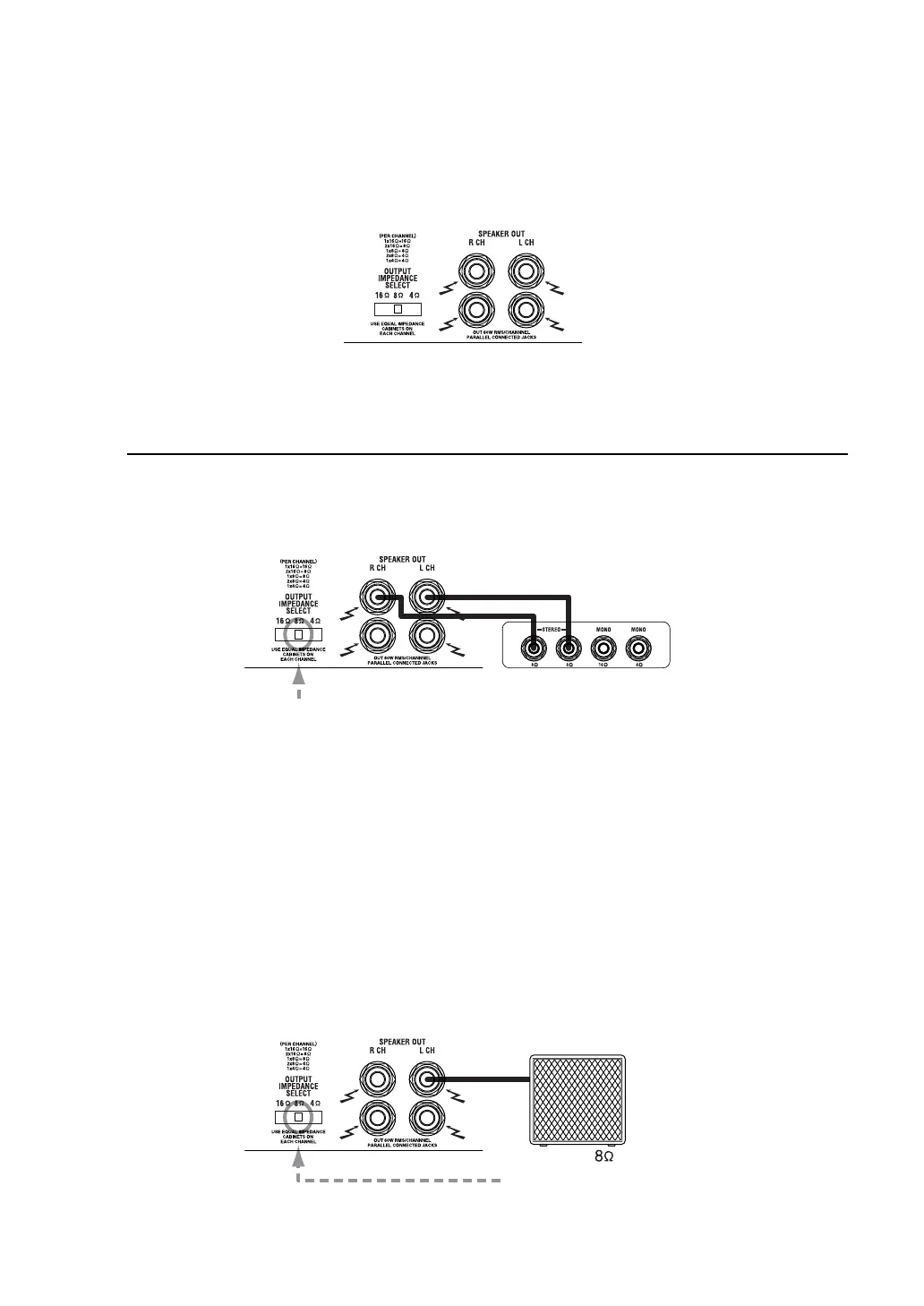

AD120VTH SPEAKER CONNECTION CHART
AD120VTH
If you use: Set Output Impedance Select to: Use Speaker Jack:
**AD212/AD412 Stereo 8 Ohms One from L & R ch.
AD212 or AD412
One 16 Ohm cabinet 16 Ohms One from L or R ch*
One 8 Ohm cabinet 8 Ohms One from L or R ch*
One 4 Ohm cabinet 4 Ohms One from L or R ch*
Two 16 Ohm cabinets 16 Ohms One from L & R ch.
Two 8 Ohm cabinets 8 Ohms One from L & R ch.
Two 4 Ohm cabinets 4 Ohms One from L & R ch.
Four 16 Ohm cabinets 8 Ohms All four. One for each cabinet
Four 8 Ohm cabinets 4 Ohms All four. One for each cabinet
Four 4 Ohm cabinets DO NOT DO THIS. YOU WILL CAUSE DAMAGE!!!!!!
Input
One 8 Ohm cabinet
