E N G L I S H

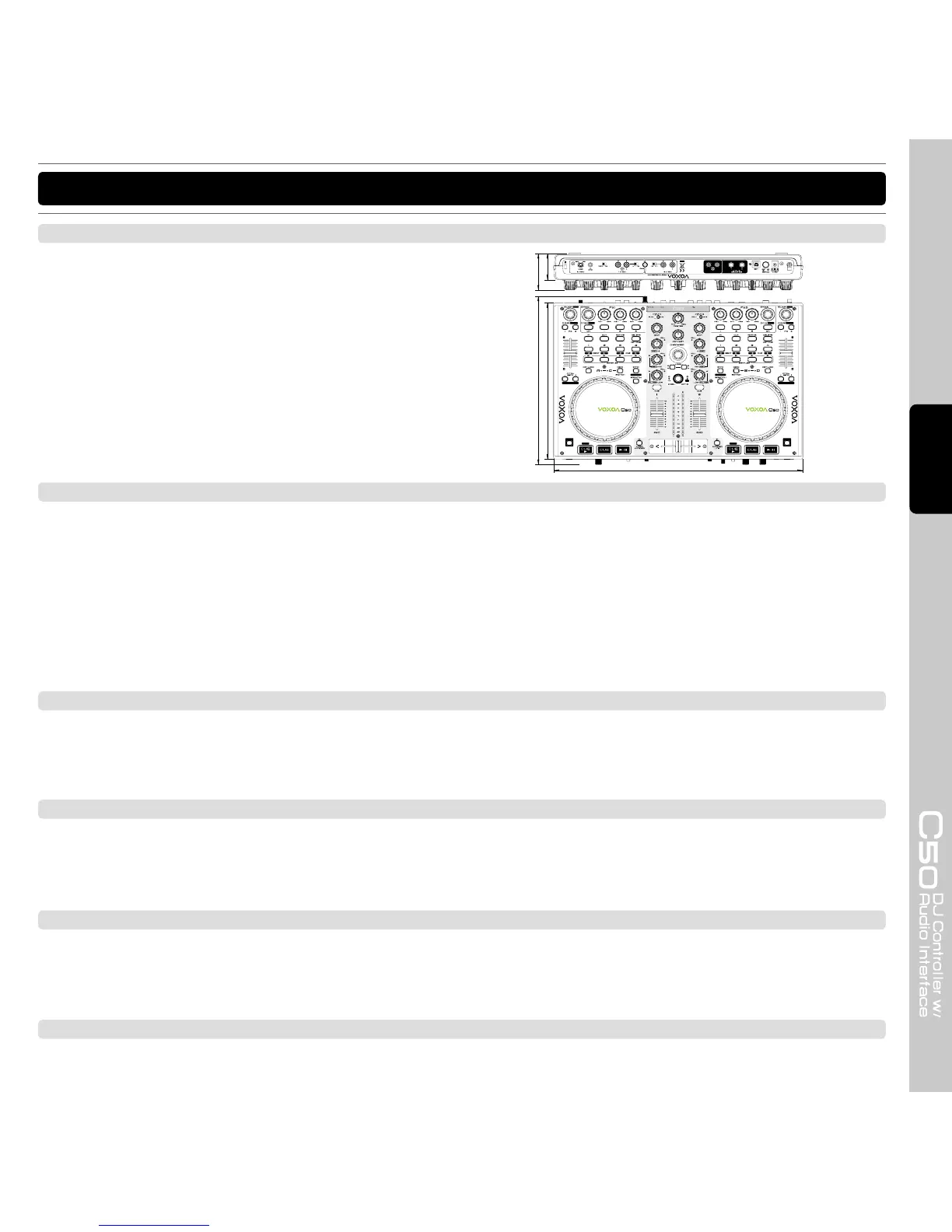

SPECIFICATIONS
1. GENERAL SECTION
POWER :
DC6V, 2.0A ; 12WATTS
DIMENSION :
410 (W) X 297 (D) X 65 (H) mm
WEIGHT :
3.2 kg
2. INPUT/OUTPUT IMPEDANCE & SENSITIVITY: (MAXIMUM GAIN, load=100K)
‧
INPUT IMPEDANCE AND REFERENCE INPUT LEVEL
LINE: 47K OHM /0dBV
PHONO: 47K OHM /-50dBV
MIC: 10K OHM /-54dBV
AUX: 47K OHM /0dBV
‧
OUTPUT IMPEDANCE
MASTER: 300 OHM
BALANCED: 600 OHM
PHONES (load=32 ohm): 10 OHM
3. FREQUENCY RESPONSE: (MASTER GAIN MAX., MASTER OUT 0dB)
LINE: 20-20KHz +/-3dB
AUX: 20-20KHz +/-3dB
PHONO: 20-20KHz +1/-3dB (RIAA) (MASTER OUT -14dB)
MIC: 20-20KHz +2/-3dB
4. THD+N: (MASTER GAIN MAX., MASTER OUT 0dB, w/ 20kHz LPF, A-WEIGHTED)
LINE: LESS THAN 0.05% @ 1KHz
AUX: LESS THAN 0.05% @ 1KHz
PHONO: LESS THAN 0.15% @ 1KHz
MIC: LESS THAN 0.15% @ 1KHz
5. MAXIMUM INPUT: (MASTER GAIN MAX., 1KHz, THD=1%, w/20kHz LPF, A-WEIGHTED)
LINE: MORE THAN +6dBV
AUX: MORE THAN +6dBV
PHONO: MORE THAN -30dBV
MIC: MORE THAN -35dBV
6. MAXIMUM OUTPUT: (MASTER GAIN MAX., 1KHz, THD=1%, w/20kHz LPF, A-WEIGHTED)
MASTER: MORE THAN +6dBV (2V)
