EN - 11

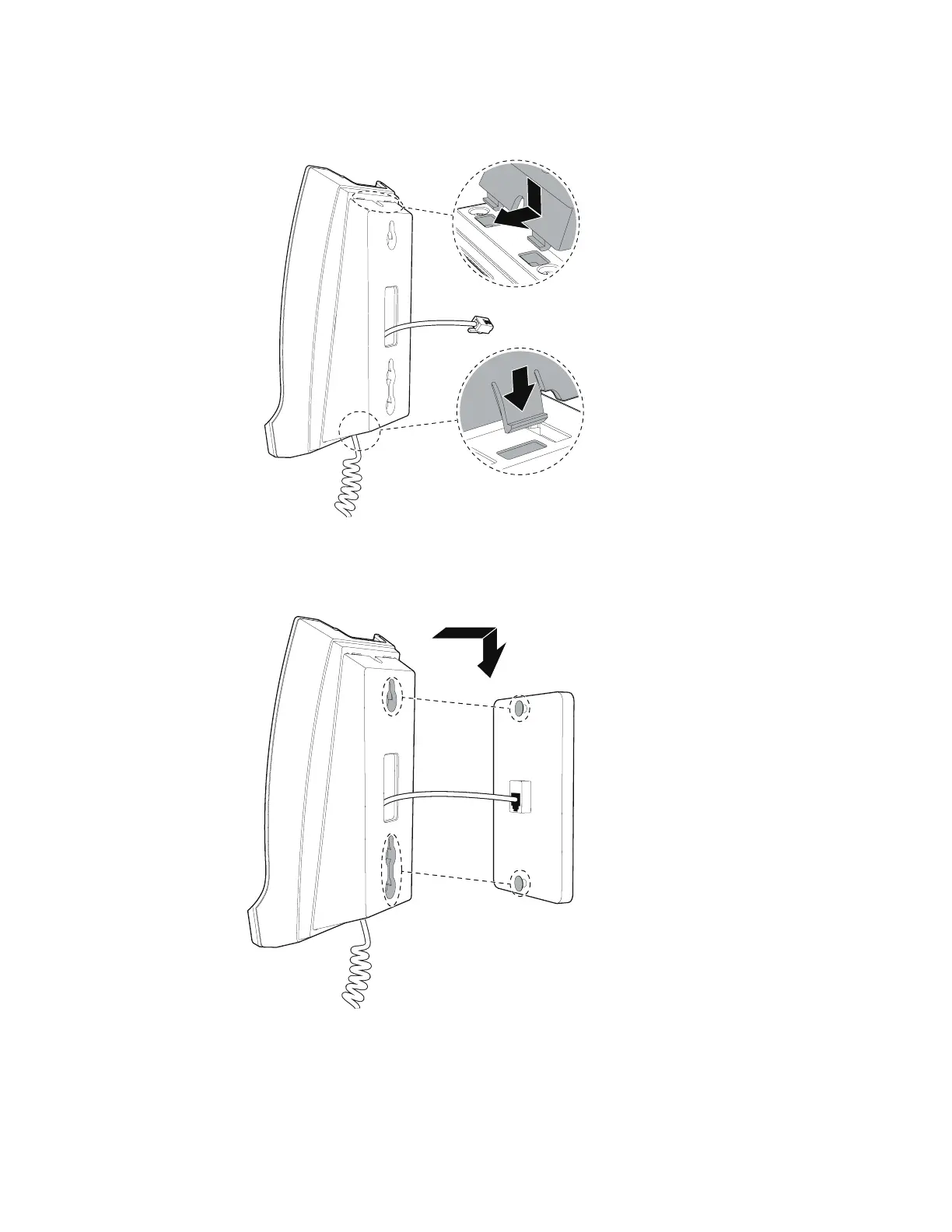

3. Turn the telephone base over with the bottom side facing up. Insert the mounting bracket into the two
upper grooves and a lower groove on the telephone base until they lock securely. In the meantime, the
ethernet cable sticks out from the rectangular hole. Besides, affix coil handset cord by fitting it in the
circular hole at the bottom of the mounting bracket as shown below.
4. Mount the telephone base on the wall by positioning the eyelets on the mounting bracket against the
mounting studs. Then, slide the telephone base down on both mounting studs until it locks into place.
5. Place the corded handset on the telephone base cradle.
