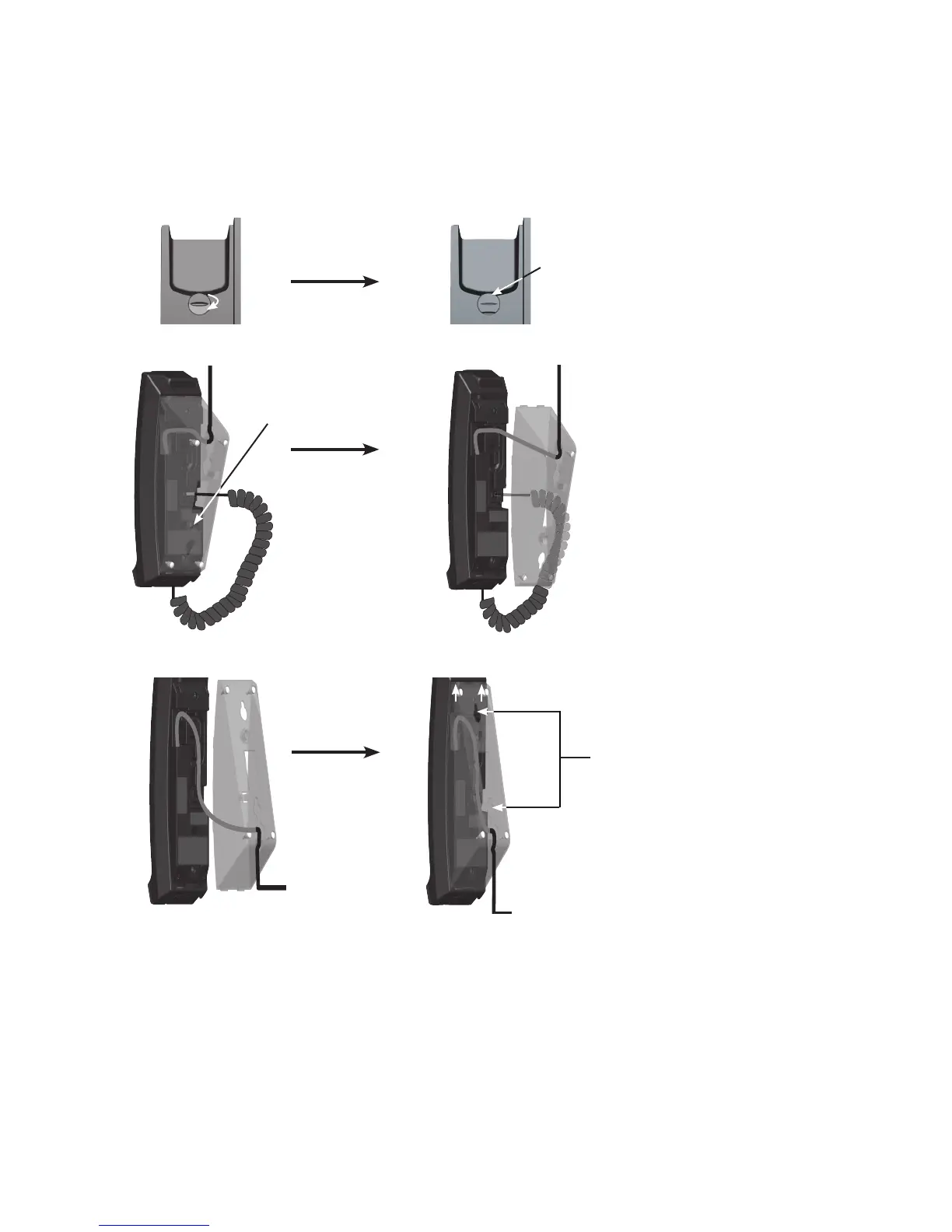

Installation option - converting from desktop to wall mount position
Unplug the Cat-5 network cable from the network wall jack.
Put the corded handset aside. On the telephone base, place a coin in the slit of the wall mount clip and rotate a half turn
(180 degrees). It locks into place with the protruding edge pointing towards the upper edge of the telephone base. This
protruding edge holds the cordless handset when the phone is mounted on the wall.
Loosen the screw from the mounting bracket and remove the mounting bracket from the grooves of the telephone base.
Rotate the mounting bracket. Insert the tabs of the mounting bracket into the lower grooves of telephone base. Then tighten the
screw to afx the mounting bracket.
Mount the telephone base on the wall by aligning the eyelets with the mounting studs of the wall plate. Then slide the telephone
base down on both mounting studs until it locks into place.
Plug the Cat-5 network cable back into the network wall jack with Power over Ethernet (PoE). Then replace the handset on the
telephone base cradle.
NOTE: FCC ID is shown on the back of the corded handset body after the handset cover is removed.
1.
2.
3.
4.
5.
6.
Installation
SIP contemporary trimstyle 1-line/2-line - S2310/S2320
Screw
Eyelets
Protruding edge
To Next Page
