VTech IS7121 Installation Guide

10

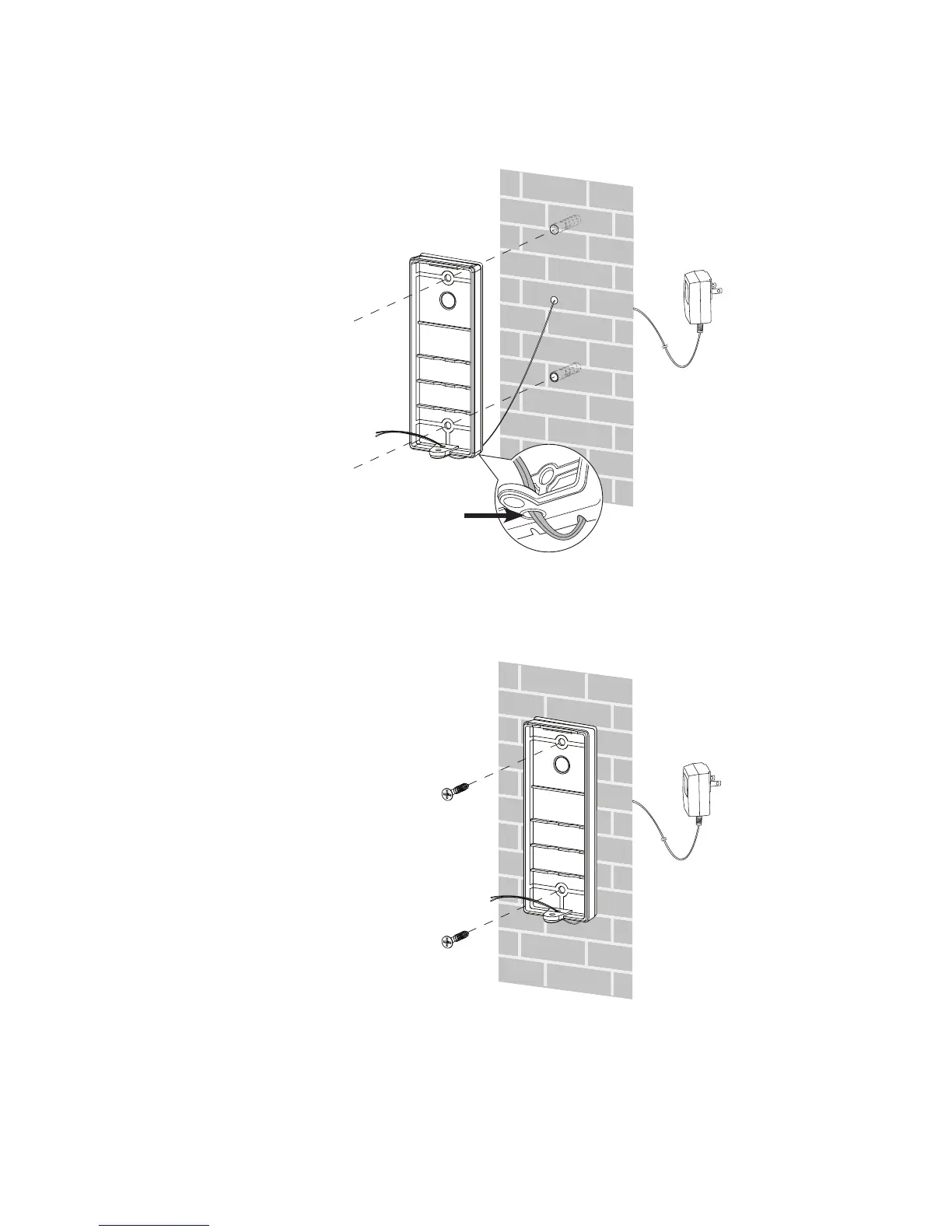

Align the holes on the wall mount
cover with the holes on the wall.
Tighten the screws into the holes
to secure the wall mount cover
onto the wall.
6.
Use a sharp object to open a hole on
the soft plastic part on the doorbell
wall mount cover. Route the power
adapter cord through the hole on
the wall and the opening of the wall
mount plate. Then, slide it in through
the hole of the wall mount cover.
5.
Open a
hole here

VTech IS7121 Specifications

Frequency and Channels

transmit frequency (handset)	1921.536-1928.448 MHz
transmit frequency (telephone base)	1921.536-1928.448 MHz
transmit frequency (doorbell)	1921.536-1928.448 MHz
channels	5

Display

LCD resolution	128 (RGB) x 160 DOTS
LCD size	1.77 inches
LCD type	TFT PANEL

Power Requirements

handset battery	2.4V Ni-MH battery
doorbell battery	Two 2A batteries
base unit power adapter input	100-120V AC 50/60Hz
base unit power adapter output	6V DC @ 400mA
doorbell unit power adapter input	100-240V AC 50/60Hz
doorbell unit power adapter output	6V DC @ 600mA
charger unit power adapter input	117V AC 50/60Hz
charger unit power adapter output	6V AC @ 300mA

Memory

directory memory locations	50
directory memory digits	up to 30 digits
directory memory characters	15 characters
caller ID log memory locations	50
caller ID log memory digits	up to 24 digits
caller ID log memory characters	15 characters
