Installation
37
Telephone base installation
The telephone can be adapted to desktop use or mount on a standard telephone wall plate.

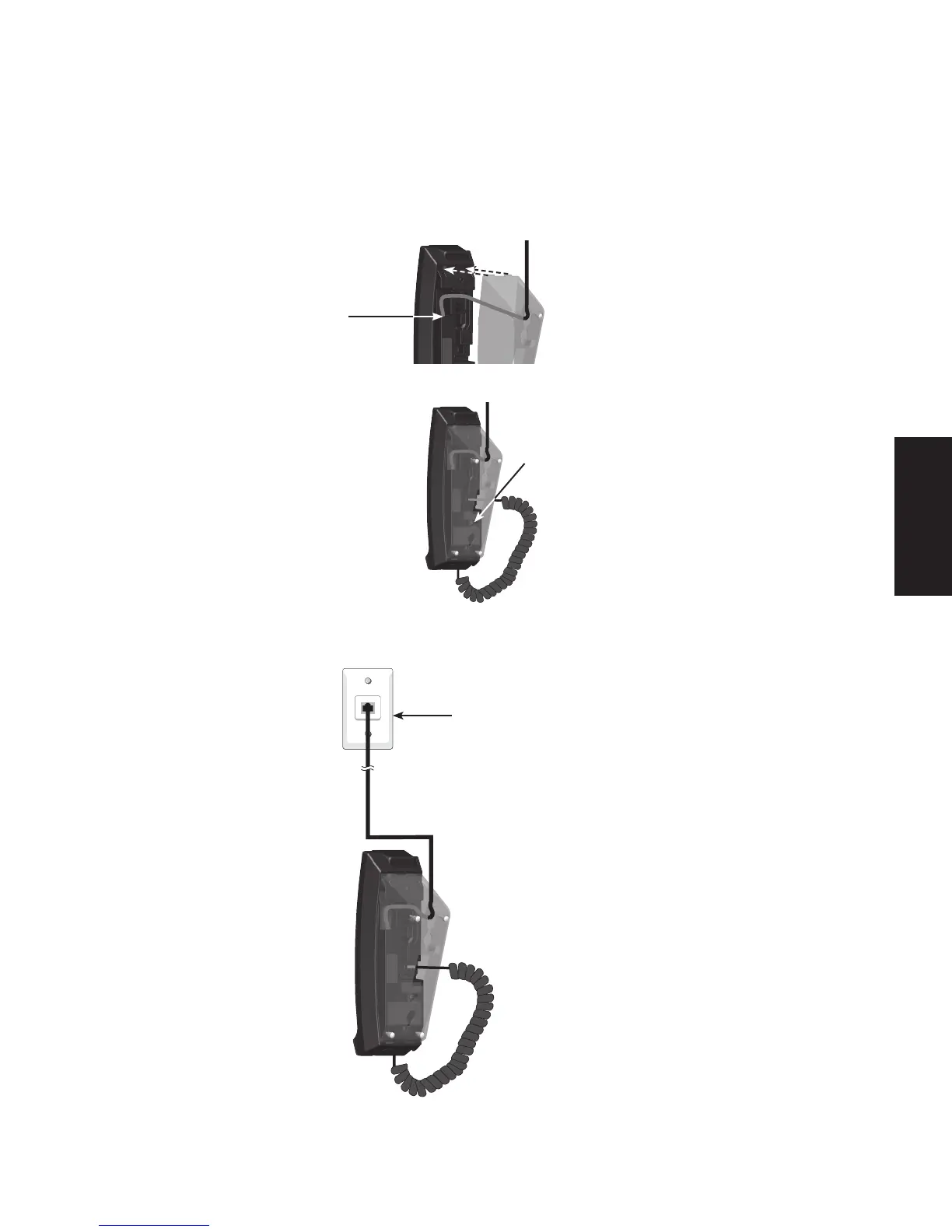

Installation option - desktop position
Turn the telephone base over with the bottom side facing up. Connect the Cat-5 network cable into the RJ-45 LAN port on the
telephone base and route the cord out from the top eyelet on the mounting bracket, then position the mounting bracket as shown.
Insert the tabs into the upper grooves and tighten the screw to afx the mounting bracket in place.
Plug the Cat-5 network cable into the network wall jack with Power over Ethernet (PoE). Then connect the coiled handset cord to
the telephone base.
1.
2.
3.
Installation
SIP contemporary trimstyle 1-line/2-line - S2310/S2320
Screw
Network wall jack with Power over Ethernet (PoE)
CAUTION:
Use only the supplied Cat-5 network cable. Cat-5 network cable is not designed for use in any other IT devices. Misuse of Cat-5 network cable on
your other IT devices shall be prohibited. To order a replacement, call 1-888-907-2007.
RJ-45 LAN port
