10
Remote control
6 720 680 078 (2012/12)

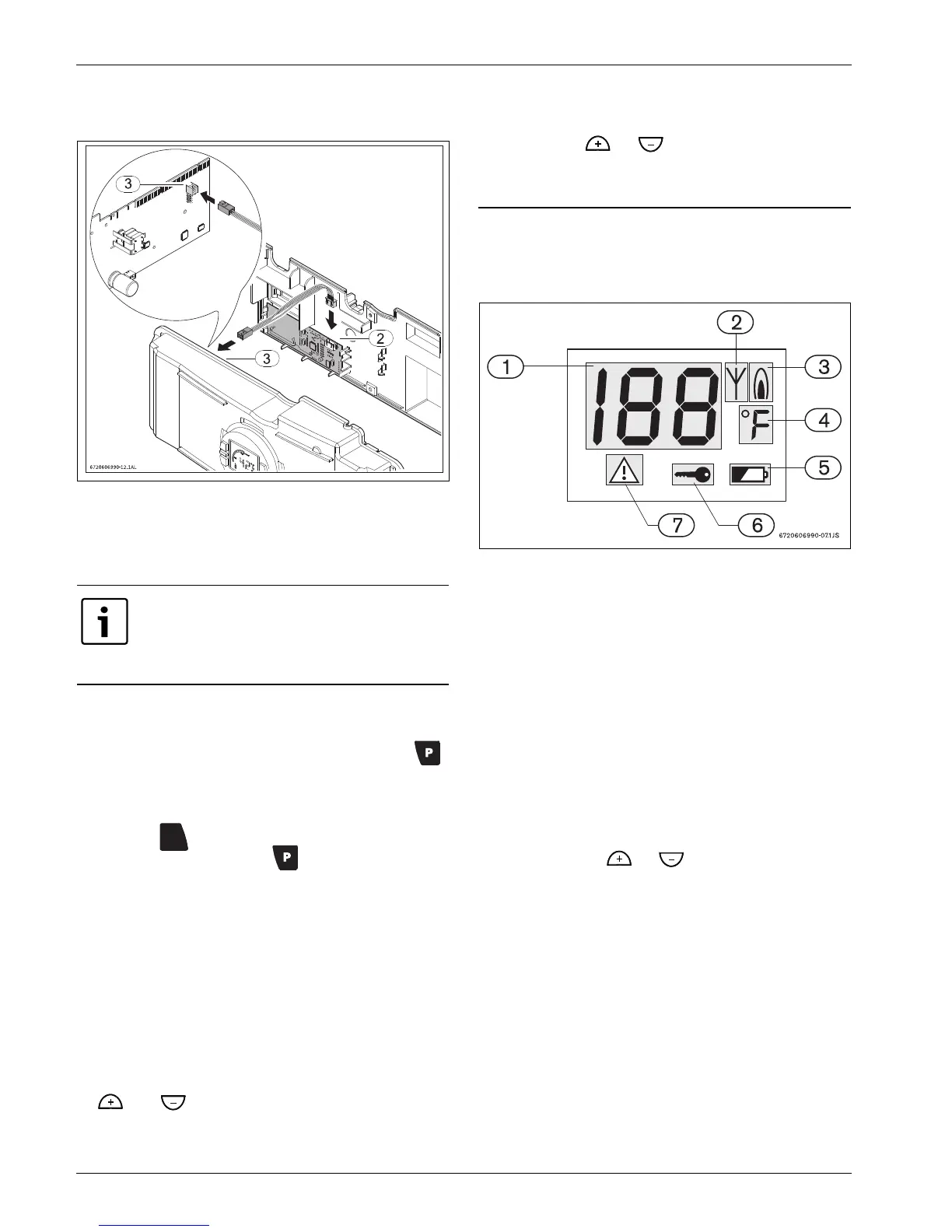

▶ Connect the supplied cable between the main PCB and the
remote control PCB as shown in Fig. 5 .
Fig. 5
▶ Reassemble all parts in the reverse order.
4.2 Remote control activation
▶Connect power to heater.
▶ Press ON / OFF button on the appliance to OFF.
▶ On heater control panel, press and hold Program key
while pressing the ON/OFF button to ON.
Release program key when LCD displays "188".
LCD shows “P2”. If not, repeat previous step.
▶ Press the button on the heater to select "P3".
▶ Press and hold Program key again for 1 sec.
LCD shows one number and one rotating digit. If not,
repeat previous step.
The number represents the remote control which is to be
registered, the first remote control will be registered
with number “1”, the second with number “2” and so on.
The rotating digit shows that the electronics is expecting
a registration. If the LCD fails to show a number and
rotating digit after repeated attempts, double check the
wire connections.
▶ Hold remote control in front of the control panel on the
heater and simultaneously press remote control buttons
and until the numbers "00" is shown on the
remote control LCD.
▶ Press ON / OFF button on the appliance to OFF position and
then back ON.
▶ Press buttons or to reach desired temperature.
New remote control is programmed.
5 Remote control
5.1 Description of the LCD
Fig. 6 Multifunctional LCD
[1] Displays temperature, error codes and functions
[2] "Remote control in operation" indication (signal arriving
at remote control)
[3] Device in operation (with burner on)
[4] Temperature measurement unit (possible in °C and °F)
[5] Remote control battery level indication (weak signal
coming from the remote control)
[6] Priority function (temperature cannot be modified by
other user when water is running)
[7] "Error code" symbol
5.2 Hot water temperature adjustment by remote
control
▶ Press the buttons or on the remote control (Fig.
7 , pos. 2) until the required temperature appears on the
remote control display (Fig.7, pos. 1).
▶ When the required temperature is displayed, turn on the hot
water tap.
▶ The required temperature will flash on the remote control
display.
Before the remote control will work, it must
be activated using the procedure described
below with the operator standing in front of
the appliance.
