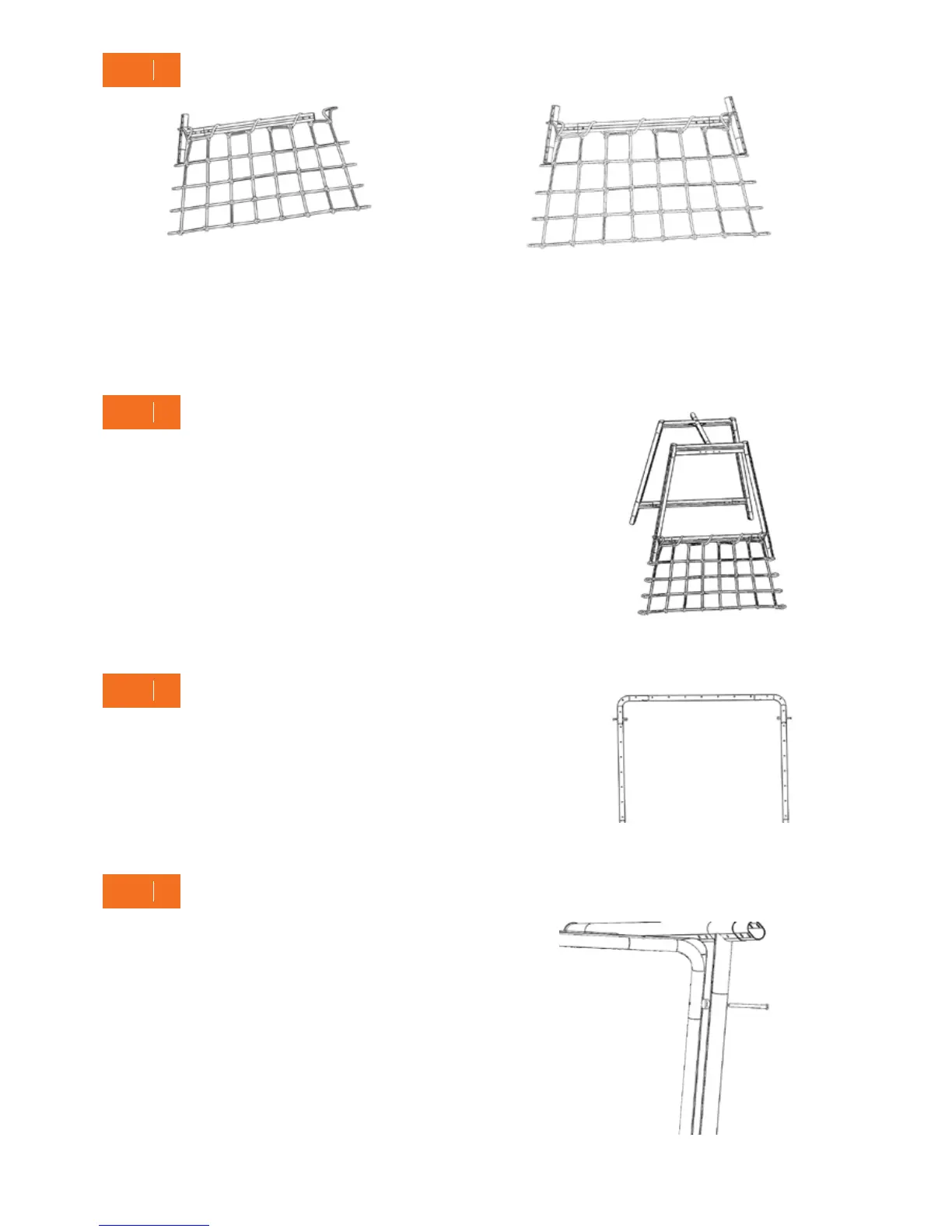

STEP
A. Position the connected Mat Frame square between the
two assembled sets of Frame Tubes and Side Joiners
from Step 5.
IMPORTANT: Ensure that the sides without Short Bolts
and Nuts attached are aligned with the Frame Tubes
on either side.
B. Position Rubber balls between the holes in both the
Frame Tubes and Mat Frame Tubes, and insert Long
Bolts and Nuts at each point.
Ensure that the parts lock together securely.
5
STEP
Take your two assembled Frame Tube and Frame Joiner parts from Step 3
and 4, and:
• Insert the one with the Climbing Rope attached into the ends of the
Frame Tubes beneath the one-way Top Joiner.
• Insert the one without the Climbing Rope attached into the ends of the
Frame Tubes beneath the two-way Top Joiner.
Ensure that you lock all parts together securely with Frame Bolts and Nuts.
4
STEP
A. Take your Climbing Rope and slip the two loops
along the top through both ends of a Frame Tube.
B. Take the remaining left and right Frame Joiners, and
insert both into the ends of the Frame Tube.
C. Feed the first loop on both sides of the Climbing
Rope through the tops of the left and right
Frame Joiners.
6
STEP
Lay your Mat Frame Tubes in a square, with clip holes facing upwards, and
position Mat Frame Corners at each corner. Connect all the parts together.
Ensure that you lock all parts together securely with Short Bolts and Nuts.
