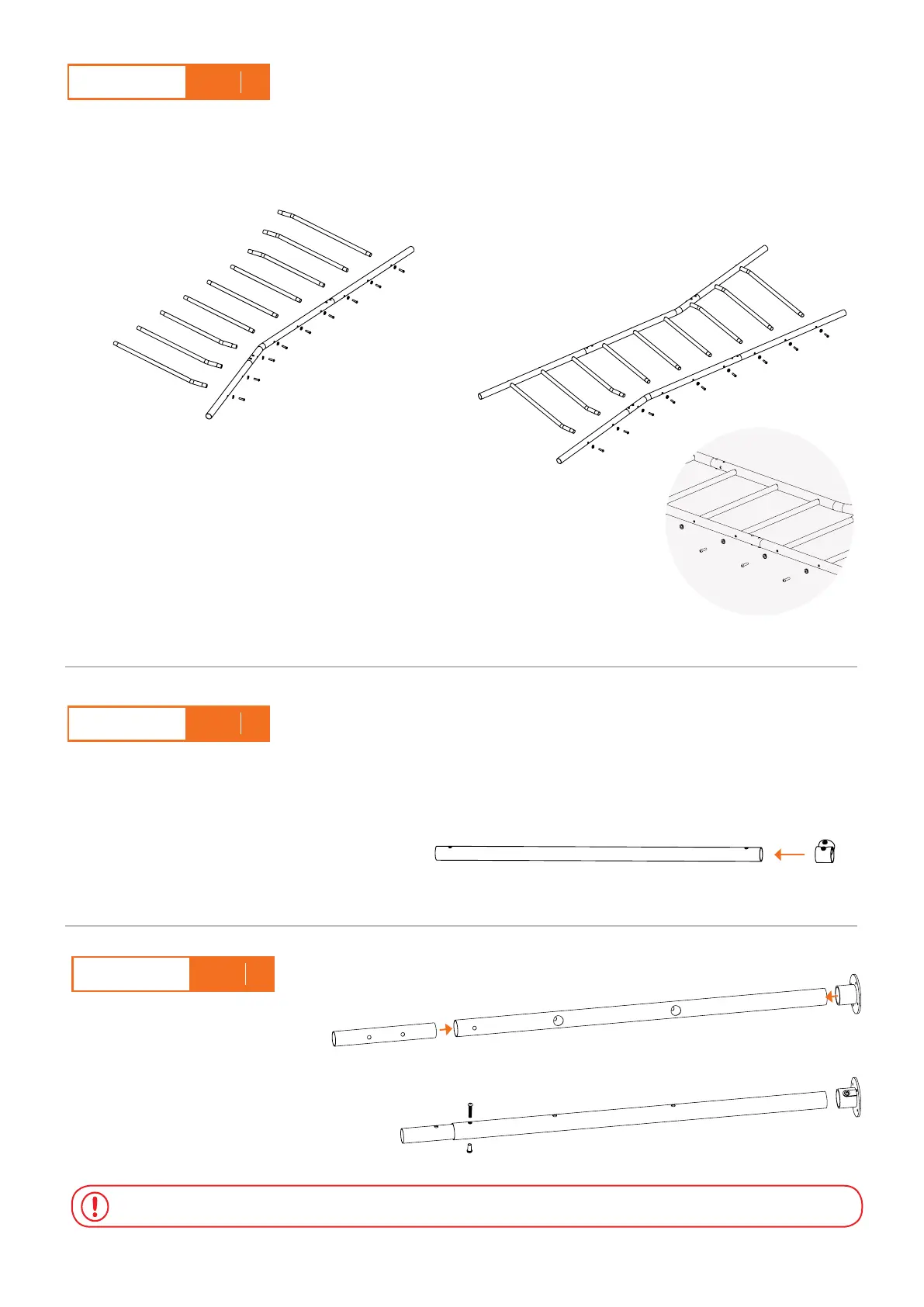

A. B.Insert each of the Climbing Bars into the
completed Climbing Rail, as shown below.
Note: Ensure that the bolts are not overly tight. You
may need to rotate some Monkey Bars to fit into the
remaining Climbing Rail.
Remember: When you secure the Climbing Bars with
bolts, make sure to position the washers first.
Connect the remaining Climbing Rail to the other ends of
the Climbing Bars.
Make sure that the straight Climbing Bars are in the middle,
and the curved ends of the other Climbing Bars are in the
shorter ends of the Climbing Rails.
2
STEP
ALL SIZES:
Insert a T-Joiner into one end of each of an Upper
Frame Tube, and slide it down.
Repeat for the remaining 3 Upper Frame Tubes.
3
STEP
ALL SIZES:
Use a rubber mallet to insert a
Joiner Tube into the top of a Lower
Frame Tubes, and insert a Foot into
the bottom.
Repeat for the remaining 3 Lower
Frame Tubes.
WARNING: Ensure that you align these parts correctly. Once inserted, they will be very difficult to remove or adjust.
4
STEP
ALL SIZES:
