www.prolight.co.uk EPX Series Power Ampliers User Manual
3

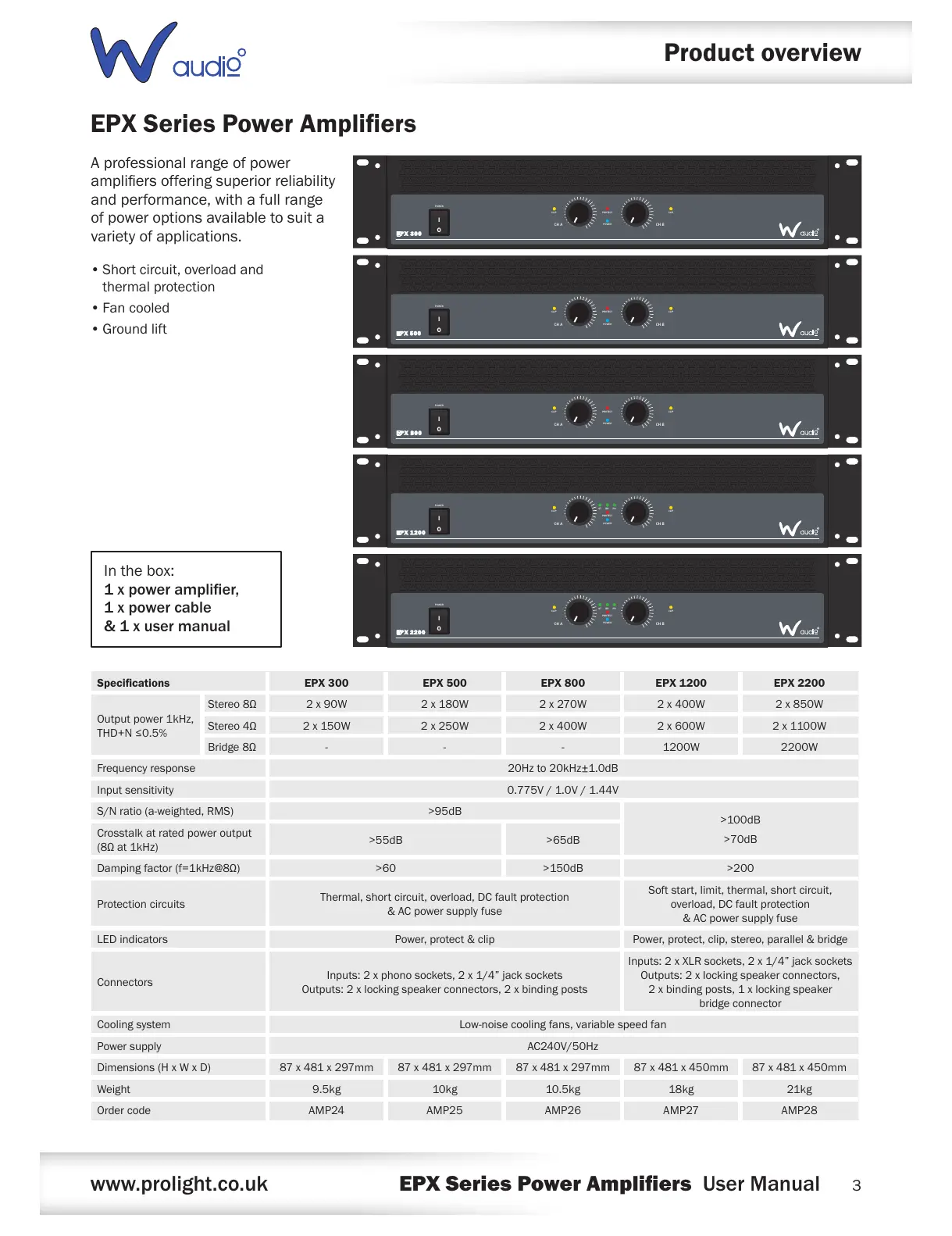

Product overview
Aprofessionalrangeofpower
ampliersofferingsuperiorreliability
andperformance,withafullrange
ofpoweroptionsavailabletosuita
varietyofapplications.
•Shortcircuit,overloadand
thermalprotection
•Fancooled
•Groundlift
EPX Series Power Ampliers
Specications EPX 300 EPX 500 EPX 800 EPX 1200 EPX 2200
Outputpower1kHz,
THD+N≤0.5%
Stereo8Ω 2x90W 2x180W 2x270W 2x400W 2x850W
Stereo4Ω 2x150W 2x250W 2x400W 2x600W 2x1100W
Bridge8Ω - - - 1200W 2200W
Frequencyresponse 20Hzto20kHz±1.0dB
Inputsensitivity 0.775V/1.0V/1.44V
S/Nratio(a-weighted,RMS) >95dB
>100dB
>70dB
Crosstalkatratedpoweroutput
(8Ωat1kHz)
>55dB >65dB
Dampingfactor(f=1kHz@8Ω) >60 >150dB >200
Protectioncircuits
Thermal,shortcircuit,overload,DCfaultprotection
&ACpowersupplyfuse
Softstart,limit,thermal,shortcircuit,
overload,DCfaultprotection
&ACpowersupplyfuse
LEDindicators Power,protect&clip Power,protect,clip,stereo,parallel&bridge
Connectors
Inputs:2xphonosockets,2x1/4”jacksockets
Outputs:2xlockingspeakerconnectors,2xbindingposts
Inputs:2xXLRsockets,2x1/4”jacksockets
Outputs:2xlockingspeakerconnectors,
2xbindingposts,1xlockingspeaker
bridgeconnector
Coolingsystem Low-noisecoolingfans,variablespeedfan
Powersupply AC240V/50Hz
Dimensions(HxWxD) 87x481x297mm 87x481x297mm 87x481x297mm 87x481x450mm 87x481x450mm
Weight 9.5kg 10kg 10.5kg 18kg 21kg
Ordercode AMP24 AMP25 AMP26 AMP27 AMP28
Inthebox:
1 x power amplier,
1 x power cable
& 1 x user manual
POWER
PROTECT
I
O
CLIPCLIP
POWER
CH A CH B
POWER
PROTECT
I
O
CLIPCLIP
POWER
CH A CH B
POWER
PROTECT
I
O
CLIPCLIP
POWER
CH A CH B
POWER
CLIPCLIP
POWER
I
O
PROTECT
BR PRST
CH A CH B
POWER
CLIPCLIP
POWER
I
O
PROTECT
BR PRST
CH A CH B
