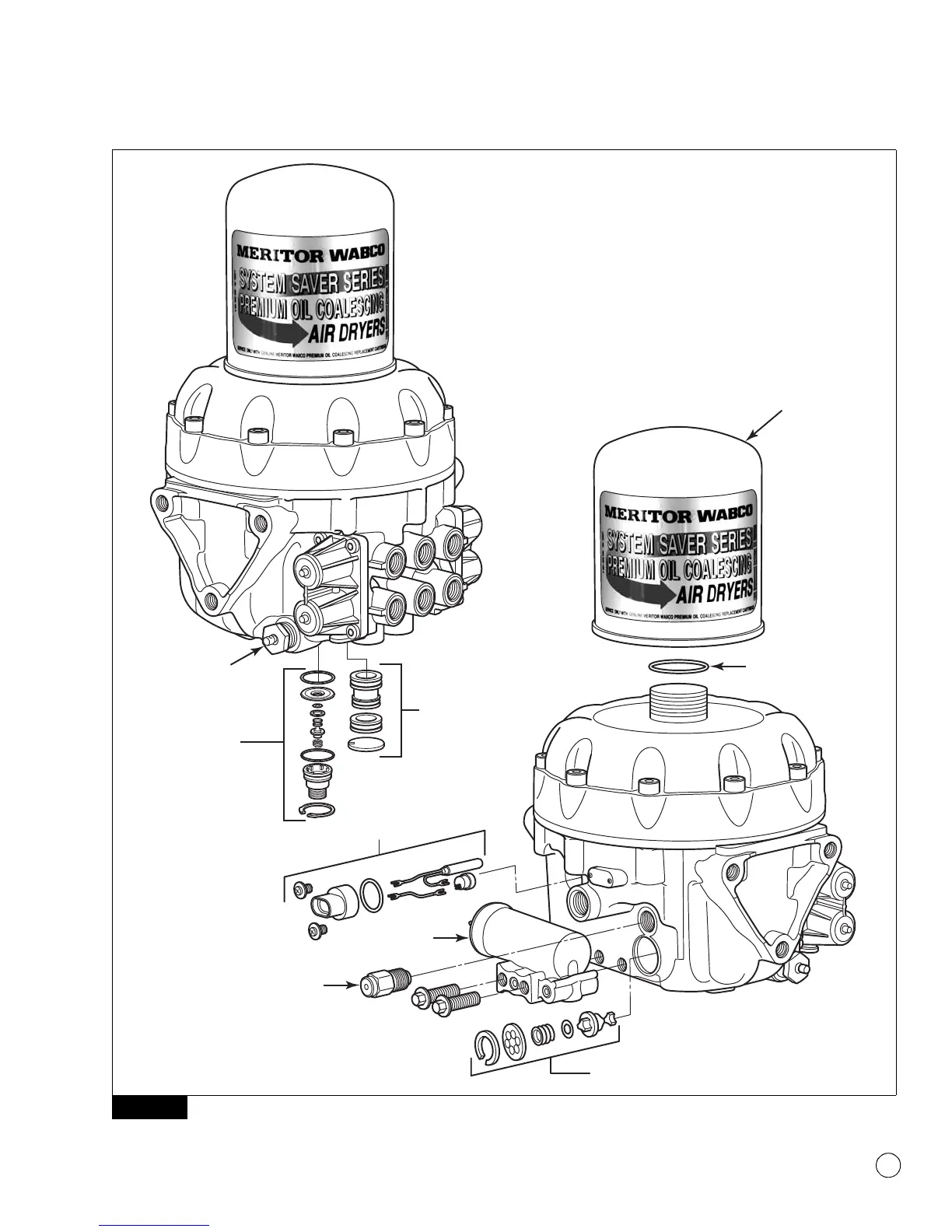

9 Appendix VI — Exploded View of System Saver 1200 Plus Series with Multi Circuit Protection
Figure 9.1
Figure 9.1
4011774a
PURGE VALVE
ASSEMBLY
HEATER ASSEMBLY
GOVERNOR
OUTLET CHECK
VALVE ASSEMBLY
O-RING
TURBO
CUT-OFF
VALVE
ASSEMBLY
PRESSURE
RELIEF VALVE
DRAIN
VALVE
DESICCANT
CARTRIDGE
SYSTEM SAVER 1200 PLUS SERIES AIR DRYER
WITH MULTI CIRCUIT PROTECTION
